Summary of Contents for Redfox E60-L

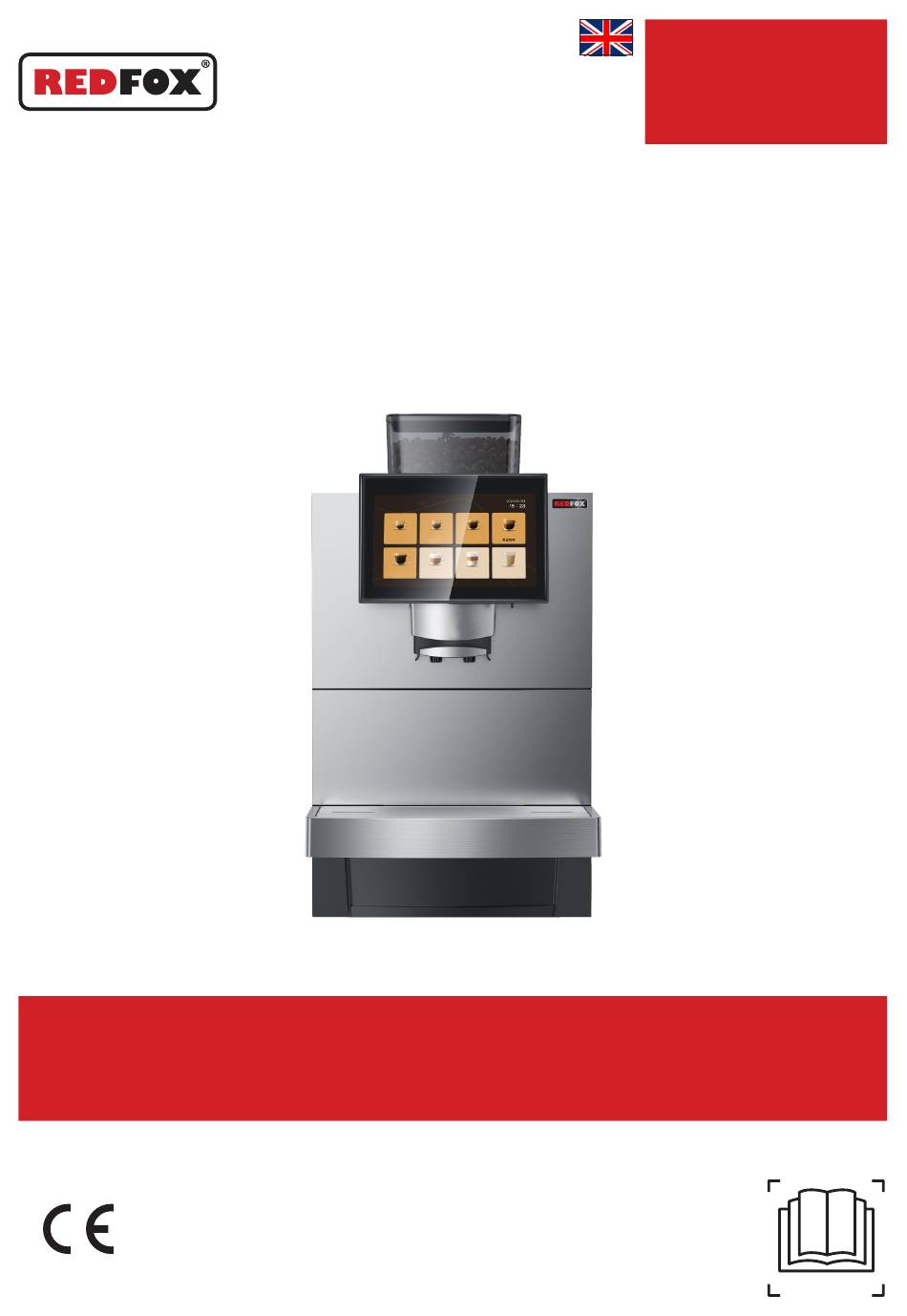

- Page 1 I N S TA L L AT I O N A N D O P E R AT I N G I N S T R U C T I O N S E60-L 2 6 0 3 - 2 5...
-
Page 2: Table Of Contents
Contents 1 For your safety ......................04 1.1 Intended use ......................04 1.2 Requirements for using the coffee machine ............04 1.3 Explanation of the safety symbols ................. 05 1.4 General safety instructions for handling the coffee machine ......... 05 2 Description of the machine .................. - Page 3 Contents 6.2 Programming settings menu tree ................20 6.3 Maintenance ......................20 6.4 Drinks ........................22 6.5 System ........................26 6.6 Control panel ......................28 6.7 User ......................... 32 6.8 Language ......................... 33 6.9 Statistics ........................33 6.10 Help ........................34 7 Cleaning and maintenance ..................
-
Page 4: For Your Safety
1. for your safety 1.1 Intended use 1.1.1 Coffee machine 1. The machines are commercial devices for the preparation of beverages and are intended for use in restaurants, offices, hotels, convenience stores and similar environments. 2. The machines are designed for processing coffee beans and fresh milk. 3. -
Page 5: Explanation Of The Safety Symbols
1.3 Explanation of the safety signs Observing these safety instructions is essential to ensure personal safety and the integrity of the machine. Symbols and signal words indicate the level of danger as follows: WARNING • WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. - Page 6 WARNING Choking hazard 1. Plastic packaging materials can suffocate children. 2. Ensure that children and persons with reduced physical, sensory or mental capabilities do not have access to plastic packaging materials. CAUTION Risk of scalding 1. Hot liquids during cleaning can cause scalding. Keep your hands away from the spouts during this process.
- Page 7 CAUTION Irritation due to cleaning agents 1. Cleaning tablets, milk system cleaning agents and descaling agents can cause irritation. 2. Observe the hazard warnings on the label of the respective cleaning agent. 3. Avoid contact with eyes and skin. 4. Wash your hands after contact with cleaning agents. Consult a doctor if necessary. 5.
-
Page 8: Description Of The Machine
2. description of the machine 2.1 Machine overview The E60 series coffee machines are available with numerous options. An example configuration is shown here. Please note that your coffee machine may differ from the configuration shown here. Bean container • Control panel •... - Page 9 2.2.3 Professional interface Generally used in commercial scenarios where the machine is intended for use by professional operators. Continuing the order is available in this interface. 2.2.4 Symbols on the screen Icon Name Description member Access to the member settings Logo Access to the menu settings Scroller...
-
Page 10: Scope Of Delivery
2.2.5 Icons in the menu settings Icon Name Description Back to the main page. The PIN code must be entered Back again to access the menu. Back to the main page. It is not necessary to enter the Main page PIN code again to access the menu. -
Page 11: Technical Data
2.4 Technical data Screen dimensions 7 inch Water tank capacity E60(T): 2 liters / E60L(T): 6 liters Drip tray capacity 2 liters Coffee grounds container capacity 50 pieces Coffee spout height 75-155 mm Permissible water pressure 0.05-0.6 MPa Bean container capacity 750 g Power supply 220-240 V, 50/60 Hz... - Page 12 Media types Commercial fully automatic coffee machine Model E60(T), E60L(T) TD-LTE: QPSK/16QAM BT: GFSK, π/4-DQPSK, 8-DPSK Modulation Mode WLAN: CCK DSSS/OFDM Technical Occupied Transmitted parameters Frequency range bandwidth power TD-LTE: Volume 38: 2570-2620 MHz Volume 40: 2300-2400 MHz TD-LTE: TD-LTE: ~ 20 23 dBm + 2.7 dB 2.400-2.4835 GHz BT: ~ 2 MHz...
-
Page 13: Installation
3. installation 3.1 Installation tips 1. The machine may only be installed by a trained service technician. 2. The manufacturer is not liable for injuries caused by improper installation of the appliance. 3. The original accessories must be used for installation. 4. -
Page 14: Installation Location
3.3 Installation location 1. The installation location must be dry and protected from water splashes. 2. Some condensation or water can always escape from a coffee machine. 3. Do not use the coffee machine outdoors in winter. 4. The machine must be installed on a stable, level and heat-resistant surface. 5. - Page 15 3.5.1 Water quality Parameters Value Total hardness 4-8 dH GH / 70 - 140 ppm (mg/l) Carbonate hardness 3-6 dH KH / 50-105 ppm (mg/l) Acidity/pH value 6.5-7.5 pH Chlorine content < 25 mg/l TDS (total dissolved solids) 30 - 150 ppm (mg/l) Electrical conductivity 50-200 μS/cm (microsiemens) Iron content...
-
Page 16: Initial Commissioning
4. first start 4.1 Filling material Add material to the machine. See page 15 for specific operation. Use the water supply from the water tank for the initial start-up. 4.2 First program start setting After turning on the machine for the first time, you can access the start-up program setting option. The specific process is as follows: 1. -
Page 17: Filling The Water Tank
Do not insert any objects into the bean container or the grinder. Otherwise, splinters could be ejected, which could lead to injuries. 1. Do not pour ground coffee into the bean container. 2. Do not pour any liquids into the bean container. 5.2 Filling the water tank 1. -
Page 18: Grind Setting
5.5.2 Preparing drinks in the 'Self-service' interface 1. Place a suitable cup under the beverage outlet. 2. Tap on the drink symbol. 3. The drink is prepared. Process bar Tap on '<' and '>' to change parameters during beverage • preparation. -
Page 19: Program Settings
6. program settings 6.1 Accessing the menu 1. Tap on the logo symbol in the top left-hand corner. 2. Enter the PIN code and tap Finish. 3. Select the desired menu. 1. PIN codes can be defined in the start-up program during initial start-up. If no PIN codes are set, the default codes are empty. -
Page 20: Programming Settings Menu Tree
6.2 Program operating structure Maintenance Rinsing Cleaning Descaling General functions • Drinks Beverage settings Beverage display • System Water supply maintenance Accessories Switching on/off Reset • Control panel Service modes Main page Beverage preparation Advertising Advanced settings • Users Administrator PIN code Maintenance PIN code Maintenance rights •... - Page 21 6.3.2 Flushing Brew group rinsing Carry out an immediate hot rinse of the brewing system after tapping. Milk frother rinsing Carry out an immediate hot rinse of the milk frother after tapping. External milk hose rinsing The screen indicates to insert the milk pipe into the drip tray. After tapping 'Confirm', the rinse is performed immediately.
-
Page 22: Drinks
6.4 Drinks 6.4.1 Overview of the beverage settings 6.4.2 Beverage settings 1. Changing the drink icon After tapping the edit icon, the drink icon can be changed. Images uploaded from a USB stick can be used as beverage icons. 2. Changing the beverage name After tapping the edit icon, the beverage name can be changed. - Page 23 5. add a new drink Tap on "Add" to select a new drink from the pop-up list that you would like to add. After adding a new drink to the menu list, the name and icon of the new drink can be changed and defined.
- Page 24 Add recipe 1. The factory default list appears here. The recipe is automatically added to the recipe compilation list for drinks after tapping. 2. The number of recipes that can be added for drinks: 1-6. 3. The adjustable value range must correspond to the software conditions. 4.
- Page 25 6.4.3 Beverage display Two modes are available for the beverage display: Grid layout and menu cards Grid layout Parameters Value range (standard/self-operation) Remarks Columns per page 1x1, 2x1, 3x1, 4x1, 5x1, 3x2, 4x2, 5x2 Standard: 5x2 Parameters Value range (Professional) Remarks Columns per page 2x1, 3x2, 3x3, 4x3...
-
Page 26: System
6.5 System 6.5.1 Overview of the system menu System Water supply • Water supply mode Water hardness Maintenance • Rinsing Cleaning Descaling Emptying the coffee grounds container Accessories • Water filter Syrup Switch on/off • Automatic switch-off Automatic switch-off according to time Switch off button Reset •... - Page 27 Cleaning Parameter settings for brew group cleaning with tablets are as follows: Setting Parameters range Remarks Cleaning the brew group with tablets - Warning after Standard: 350 number of cups [250, 350] cups Forced cleaning of the brew group with tablets - Warning Standard: 450 after number of cups [350, 450]...
-
Page 28: Control Panel
6.5.5 Switching off Automatic switch-off Set the countdown for the automatic switch-off of the machine here, e.g. automatic switch-off after 8 hours. Parameters Setting range Remarks Countdown for automatic switch-off 0.5-24 hours, Never Standard: 4 hours Automatic switch-off by time setting Set the time for automatic switch-off here, e.g. - Page 29 6.6.2 Main page Membership function Option: Active | Inactive 1. Select "Active", tap the member button in the top right corner of the screen and create members and a list of favorite drinks. 2. Select "Inactive", the member button is not displayed. Serial number Option: Active | Inactive 1.
- Page 30 6.6.3 Beverage preparation Cancel drink Option: Active | Inactive 1. If 'Active' is selected, beverage preparation can be interrupted by tapping 'Stop'. 2. If "Inactive" is selected, "Stop" is not displayed. Beverage customization Option: Active | Inactive 1. If 'Active' is selected, the drink recipes can be adjusted during preparation by tapping the left and right buttons.
- Page 31 6.6.4 Advertising AD - Standby Settings for advertisements when the machine is in standby. Advertising resources can be loaded from a USB stick. Parameters Setting range Remarks Standard: 60 Waiting time 0-100 seconds seconds Infinite loop; end automatically after Cycle type display Standard: Off Single frame playback...
-
Page 32: User
6.7 Users Different user rights can be assigned using corresponding PIN codes. 6.7.1 Administrator PIN code Set up the administrator PIN code here, which consists of 5 digits. By entering the correct PIN code, all menu rights can be displayed. 6.7.2 Maintenance PIN code Set up the maintenance PIN code here, which consists of 4 digits. -
Page 33: Language
6.8 Language Available languages are displayed here. Select language. The default language is English. 6.9 Statistics Display the history data of various beverage preparations, the total number of beverages as well as care and maintenance data. 6.9.1 Drinks Quick search Data can be displayed by 1 week, 1 month, 3 months, current date, half a year or a year. -
Page 34: Help
6.10 Help About Display machine information Information about the machine can be displayed here, including CTR version (PCB software) • HMI version (screen software) • Android system version • Calibration file version • Serial number of the machine • IMEI information of the machine •... -
Page 35: Preparation Of Parts
Cleaning intervals Operation Kind Clean the milk frother with Weekly cleaning agent With cleaning agents When the screen displays a Brew group rinsing message When the screen displays a If available Decalcification message When the screen displays a Filter change message 7.2 Preparing the parts Parts... -
Page 36: Weekly Cleaning
7.3.2 Emptying the coffee grounds container Empty the coffee grounds container (at least once a day). 1. Remove the coffee grounds container. 2. Empty the coffee grounds. 3. Clean thoroughly with fresh water. 4. Dry and put the coffee grounds container back. 7.3.3 Emptying the drip tray The drip tray is located under the coffee grounds container. -
Page 37: Cleaning The Brewing Unit (If Necessary)
7.4.2 Cleaning the brew group with the brush 1. The brew group can become clogged if the coffee beans are ground too finely. It is recommended to clean the brew group once a week with a brush. 7.5 Cleaning the brew group (if necessary) A message 'Clean brew group with tablet' appears on the screen if the coffee system needs to be cleaned with a cleaning tablet. -
Page 38: Cleaning The Milk System (If Necessary)
7.6 Milk system cleaning A 'Clean milk system' message appears on the screen when the milk system needs to be cleaned with cleaning fluid. The total duration is approx. 10 minutes. 1. Open the "Maintenance/Cleaning" menu. 2. Tap on the "START" button. 3. -
Page 39: News And Explanations
8. news and explanations 8.1 Company news If an error occurs, the machine displays an error message, which is indicated by a red triangle in the top right-hand corner of the control panel. Tap on this symbol to obtain further information. Information on Possible solutions Check that the water tank is inserted correctly or... -
Page 40: Error Messages
8.2 Error messages The error message appears automatically if the entire system is affected by an error. Restart the machine if serious problems occur. 1. Switch the machine off and on again using the main switch to restart it. 2. Please contact a service technician if the machine cannot be started or if you are unable to rectify the fault. -
Page 41: Short-Term Decommissioning (Within One Month)
9.2 Short-term decommissioning (within one month) 1. Empty the water circuit (have the water circuit of your coffee machine emptied by a service technician). 2. Disconnect the machine from the power supply. 3. Close the water supply. 4. Switch off all additional devices and disconnect them from the power supply. 9.3 Long-term shutdown (longer than one month) Some components may no longer function properly after prolonged storage or disuse. -
Page 42: Storage
10.2 Storage The storage conditions must be met: 1. Permissible temperatures: -10 to +50 °C 2. If the machine has not been completely emptied, it must not be used at temperatures stored below 0 °C. 3. The machine must be set up in an upright position. 4. - Page 43 List of service organizations: CZ: RM GASTRO CZ s. r. o., Náchodská 818/16, Praha 9 Tel. +420 281 926 604, info@rmgastro.cz, www.rmgastro.com SK: RM Gastro Slovakia, Rybárska 1, Nové Město nad Váhom Tel.: +421 32 7717061, obchod@rmgastro.sk, www.rmgastro.sk PL: RM GASTRO Polska Sp. z o. o., ul. Skoczowska 94, 43-450 Ustroń Tel.: +33 854 73 26, www.rmgastro.pl dubna 23, 2025 2:03 odp.
