Summary of Contents for DEGREE CONTROLS HotSpotr 2.0

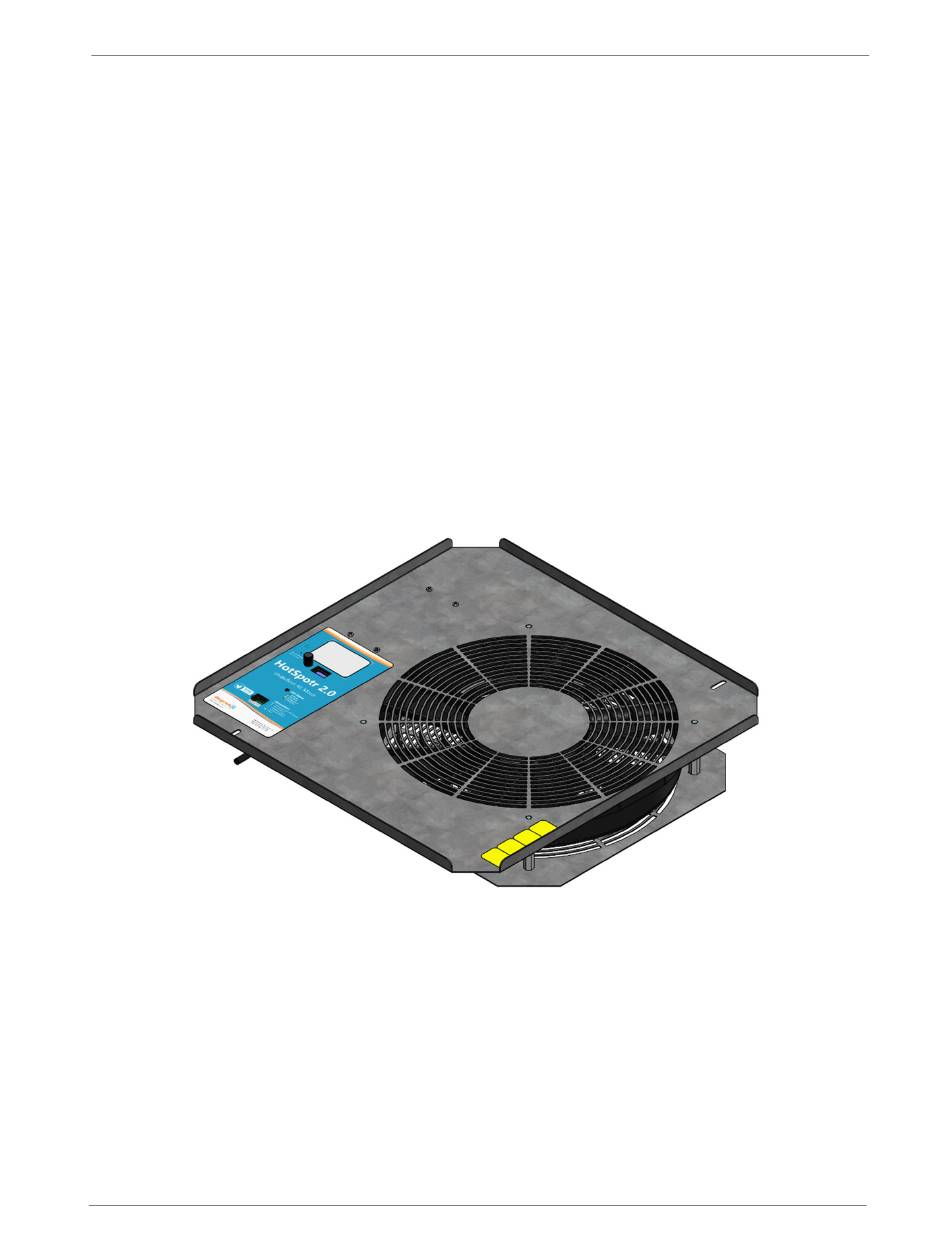

- Page 1 HotSpotr 2.0 Manual HotSpotr 2.0 User Manual This is proprietary information of Degree Controls Inc., contents are protected under US copyright laws © Degree Controls, Inc. 2025. 10161MN000-A01 HotSpotr 2.0 Manual Page 1 of 24...
- Page 2 Degree Controls Information © Copyright by Degree Controls, Inc. All Rights Reserved. This publication may be reproduced for use of registered users of Degree Controls, Inc. products. For all other purposes reproduction, storage or transmission in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, requires prior permission of Degree Controls, Inc.
-
Page 3: Table Of Contents
Troubleshooting ......................................17 Maintenance ......................................... 17 Safety Guidelines ......................................18 Consignes de Sécurité ....................................18 Specifications ........................................ 19 Degree Controls Warranty ..................................20 Appendix ........................................21 12.1 Airflow vs % Fan Speed ................................21 12.2 Use of Blanking Panels ................................. 21 12.3... -
Page 4: Introduction
Because the HotSpotr 2.0 is active, i.e., it utilizes a fan to move air, it can overcome many obstacles and/or low-pressure areas of the underfloor region, effectively boosting airflow where more air is needed. -
Page 5: Hardware Overview
The sensor’s inline connector allows you to quickly disconnect/reconnect the sensor head as needed. The HotSpotr 2.0 User Manual is available for download at www.degreec.com. 3 Hardware Overview The operator panel with connections is located on the topside of the HotSpotr, and the power cable exits from the bottom. -
Page 6: Electrical Power
The socket should participate in the same backup power arrangements as your CRAC units to ensure that the HotSpotr underfloor air mover continues to operate in similar periods as the cooling units during a facility power loss. Be sure your power meets HotSpotr specifications. 10161MN000-A01 HotSpotr 2.0 Manual Page 6 of 24... -
Page 7: Operating Modes
Operator Panel The HotSpotr 2.0 features an operator panel with user interface, status LED, and input connections, everything a user needs to monitor status and control operation. -
Page 8: Status Led
3, 4 Temperature sensor 1 1, 2 Temperature sensor 2 (for redundancy) To open the terminal point and install the wire, push in using a small flat head screwdriver. Pin 1 Install wire 10161MN000-A01 HotSpotr 2.0 Manual Page 8 of 24... -
Page 9: Part Number And Serial Number
The HotSpotr is labeled with its part number and serial number. This information is also presented on the display during startup. 4 Installation Guidelines Before removing or installing a fan tray ensure that you read and follow the guidelines and safety warnings listed. 10161MN000-A01 HotSpotr 2.0 Manual Page 9 of 24... -
Page 10: Des Lignes Directrices
Une tuile perforée standard avec au moins 25 % de surface ouverte doit être installée. N'utilisez jamais le HotSpotr dans et autour de l'eau. The HotSpotr 2.0 underfloor air mover is to be installed by a skilled person in a secure place such as a datacenter. Installation consists of: 1. -
Page 11: Steps
For a typical 2” thick floor tile, you should have at least 165mm (6.5”) from top of the floor tile/walking surface to first obstruction. HotSpotr 2.0 will only fit if clearance is > than 165mm (6.5”). HotSpotr fan tray Perforated floor tile Figure 2 For a 51mm [2”] thick tile, HotSpotr fits the floor if there is at least 165mm [6.5"] to the first obstruction. - Page 12 3. Close off any unused rack spaces in front of, or adjacent to, the HotSpotr with blanking panels (see Appendix). Mount HotSpotr Within Floor System Mount the HotSpotr at the proper height with respect to the top of the raised floor to achieve optimal air supply volume. 10161MN000-A01 HotSpotr 2.0 Manual Page 12 of 24...
- Page 13 8. If the HotSpotr is to operate under temperature control, mount temperature sensor(s) near the top and front of the rack to be monitored (see Appendix), and connect them to the T1 and/or T2 terminals. 10161MN000-A01 HotSpotr 2.0 Manual Page 13 of 24...
-
Page 14: Operation
The bar graph is colored red when fan current is between 85% and 100% of maximum Setpoint: 97% Fan Current: current. Mode: Temperature Setpoint: 23°C Temperature: 22.4°C Temperature values can be displayed in Celsius or Fahrenheit. Mode: Temperature Setpoint: 77°F Temperature: 77.2°F 10161MN000-A01 HotSpotr 2.0 Manual Page 14 of 24... -
Page 15: Settings
Turn the knob to cycle through menu options and then press the knob to make a selection. The knob is also used to change settings and increase/decrease values. After 20 seconds of user inactivity, the HotSpotr will return to the main status screen. 5.1.1 Graphical User Interface 10161MN000-A01 HotSpotr 2.0 Manual Page 15 of 24... -
Page 16: Parameters And Default Values
IGAIN – Integral Gain Integral gain addresses the output error based on past cumulative error values. The range is 10 to 150. EPO Polarity NC – Normally Closed NO – Normally Open 10161MN000-A01 HotSpotr 2.0 Manual Page 16 of 24... -
Page 17: Troubleshooting
Note: The fan motor is completely sealed and does not need cleaning. For HotSpotr installations using temperature sensors, sensor heads may be carefully wiped to remove dust. Use a soft cloth moistened with a mild detergent solution. 10161MN000-A01 HotSpotr 2.0 Manual Page 17 of 24... -
Page 18: Safety Guidelines
Le HotSpotr et les capteurs doivent être utilisés et stockés dans les plages spécifiées. Si de la fumée est présente, si du liquide s'est répandu ou si le HotSpotr est physiquement endommagé, éteignez immédiatement l'appareil. 10161MN000-A01 HotSpotr 2.0 Manual Page 18 of 24... -
Page 19: Specifications
HotSpotr 2.0 Manual 10 Specifications Model HT2-500 Description HotSpotr 2.0 Underfloor Air Mover Physical Specifications Airflow (without floor tile in place) 1700 CFM at 0 Static Pressure Dimensions 585mm x 585mm x 113mm (23.02” x 23.02” x 4.45”) Packaged Dimensions 737mm x 686mm x 193mm (29.0”... -
Page 20: Degree Controls Warranty
OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY WARRANTY ARISING FROM A COURSE OF DEALING OR USAGE OF TRADE, NON-INFRINGEMENT AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE OR USE. 10161MN000-A01 HotSpotr 2.0 Manual Page 20 of 24... -
Page 21: Appendix
HotSpotr 2.0 Manual 12 Appendix 12.1 Airflow vs % Fan Speed HotSpotr 2.0 CFM Through ASM AF500 56% Perf Tile CFM @ 0.05" Pressure 2000 1800 1600 1400 1200 1000 100% 120% Fan Speed of HotSpotr 2.0 12.2 Use of Blanking Panels The use of blanking panels to fill unused “U”... - Page 22 Note: The HotSpotr will bring additional cool air directly to one rack, and will indirectly assist cooling in the two adjacent racks. If you wish to directly assist cooling in the adjacent racks, determine which rack generates more heat, and mount the second sensor in this rack. 10161MN000-A01 HotSpotr 2.0 Manual Page 22 of 24...
-
Page 23: Sensor Mounting Guidelines
The sensor should be located on the inside of the door so that it is facing the servers. Steps are: Align the sensor with the top edge of the top server or 1.5m (5 feet) above the floor, whichever is higher. It must be in the cool air stream. 10161MN000-A01 HotSpotr 2.0 Manual Page 23 of 24... - Page 24 The underfloor HotSpotr is designed to bring additional cool air to the inlet side of servers, based upon the temperature of air entering the rack. Placing temperature sensors in an excessively hot area will defeat the adaptable control feature of your HotSpotr. 10161MN000-A01 HotSpotr 2.0 Manual Page 24 of 24...
