IMPORTANT INSTALLATION INFORMATION
• Before Installation, please check all parts against
the parts list on the back page of this booklet.
• Make sure that the parts are undamaged and that
their finish is as expected.
• Should you find a faulty or damaged part, please
be in touch with our Customer Services Team
immediately using the contact details below.
Swadling Brassware, Churchward Road, Yate, Bristol, BS37 5PL
Telephone: 01454 322888 Email: techsupport@swadlingbrassware.co.uk
INSTALLATION INSTRUCTIONS

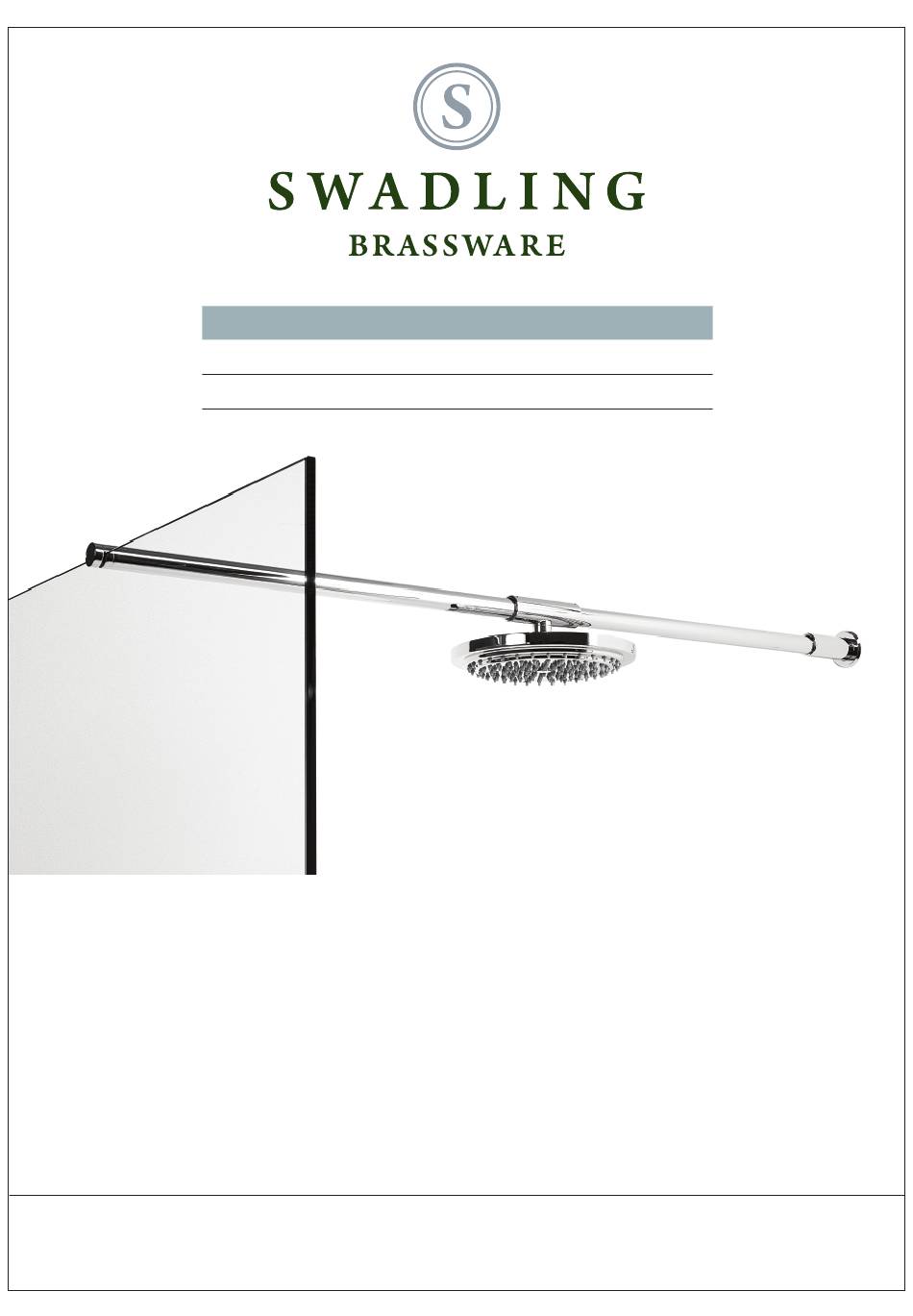

Illustrious Shower Brace with Deluge
9872100OOX and 9872300OOX (with Robe Hook)
• Any claim for faulty or damaged parts will
require the affected part to be returned to
Swadling Brassware for inspection and testing.
• No claim for damaged parts or issues with a
product finish will be accepted after the product
has been installed.
SB 2031 03/25
Advertisement
Summary of Contents for Swadling 9872100OOX
- Page 1 • Should you find a faulty or damaged part, please has been installed. be in touch with our Customer Services Team immediately using the contact details below. Swadling Brassware, Churchward Road, Yate, Bristol, BS37 5PL Telephone: 01454 322888 Email: techsupport@swadlingbrassware.co.uk SB 2031 03/25...
- Page 2 IMPORTANT GENERAL DIMENSIONS & ADJUSTMENT RANGE READ INSTRUCTIONS IN FULL BEFORE STARTING JOB! 227 25mm 33mm Finish Tiled Surface SUITABLE FOR 10mm ONLY Outside Face of Glass Panel Finally Fitted Finish Tiled Surface 50mm Minimum Manifold Depth 65mm Maximum Manifold...
- Page 3 SETTING OUT AND FIRST FIX PLUMBING IMPORTANT PLUMBING HEIGHT TO CENTRE OF MANIFOLD MUST BE EQUAL TO THE FINAL HEIGHT OF GLASS PANEL ONCE INSTALLED! THIS MUST INCLUDE ANY HEIGHT OF SHOWER TRAY BEING USED. ANY OUT-OF-LEVEL FLOOR NEEDS TO BE ACCOUNTED FOR. AS WELL AS ANY FINISHED WET ROOM SYSTEM FINAL HEIGHT.
- Page 4 SETTING OUT AND FIRST FIX PLUMBING ALTERATIVE PLUMBING DEPTH PLUMBING OPTION 1 PLUMBING OPTION 2 PLUMBING DIRECTIONS OUTLET 1/2” BSP INLET OUTLET 1/2” BSP INLET BLANKING PLUG 90° MIXED WATER INLET THREAD IMPORTANT (SEE PREVIOUS PAGE) 2.5mm DECORATIVE RING...
- Page 5 INSTALL WET ROOM PANEL AND MEASURE CUSTOM DEPTH (A) ONCE WET-ROOM PANEL IS FITTED CONFIRM THE DEPTH MEASUREMENT TO PROCEED TO NEXT STAGE! MEASURE OUTSIDE FACE OF GLASS TO TILLED WALL. OUTSIDE FACE MEASURE IN GENERAL LOCATION OF MEASUREMENT ALREADY FITTED SPIGOT AND BRACKET FOR BEST RESULTS.
- Page 6 CALCULATING CUTTING DOWN SHOWER BRACE TUBES Brace is supplied at 1200mm. Cutting of both tubes is required. Deluge head is always central. A = ..... Cut length to side = Half (A) 84mm = ....Cut length to DRY side = Half (A) 59mm = .....
- Page 7 WATER BRACE ASSEMBLY WET SIDE SPIGOT THREADED LOOSEN 2.5mm ENSURING CORRECT PLUMBING DIRECTION DRY SIDE SPIGOT OUTER TUBE 19mm FULLY SUPPORT DELUGE CENTRE BRACKET HERE 2.5mm OUTER TUBE REMOVE PAPER BACKING FROM 2x ADHESIVE PADS...
- Page 8 DELUGE FITTING & COMMISSION FINAL FIX! 2.5mm ( x 2 ) ENSURE ALL FITTINGS ARE EVENLY TIGHTENED (DO NOT OVERTIGHTEN). CAREFULLY WATER TEST - CATCH WATER IN SUITABLE BUCKET. PLAIN DISC OPTION (PUSH-FIT) ADJUSTMENTS CAN BE MADE NOW IF DELUGE SPIGOT REQUIRES REPOSITIONING SUCKER TO POINT DOWNWARDS.
- Page 9 FINISH...
- Page 10 NOTES & CALCULATIONS...
- Page 11 NOTES & CALCULATIONS...
-
Page 12: Parts List
DIN 3771 - 17 x 2.5 WITH/WITHOUT WITH/WITHOUT 6251 AF 140 INLET BLANKING PLUG DELUGE DELUGE 6249 AF (1/2" BSP) SWADLING WALL ARM MANIFOLD PLUS ROBE HOOK 10607 SCREW HOOK 9994 114 WALL FIX BRKT 9993 114 DECORATIVE RING SB0267 BS 4518 - 0330-1.78...
