HouseMate HM-IR-TV-Z Quick Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
HM-IR-TV-Z Quick Guide
April 2025
-

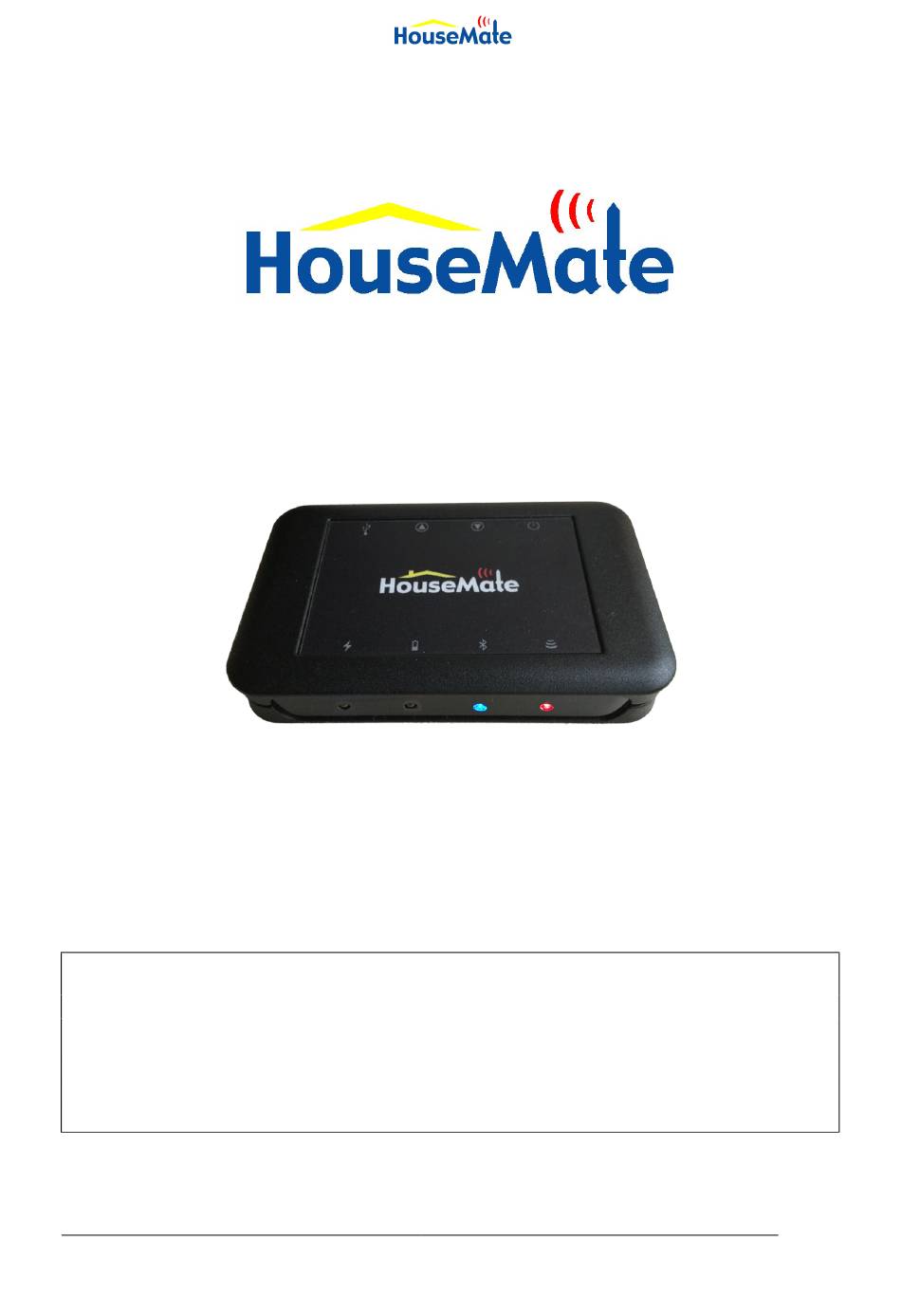

Quick Guide to the HouseMate IR-TV-Z
This quick guide describes how to use the HouseMate InfraRed to Smart TV and Z-Wave interface.
Note: The HouseMate IR-TV-Z has two functions:
1. Smart TV: It can be used to convert IR signals into Bluetooth HID keyboard & consumer events to control a
Smart TV or other device.
2. Zwave: It can be used to control Z-Wave binary state devices, such as light switches, bulbs, relays, sockets
and multistate devices, such as dimmers. It can also be used with selected Z-Wave hubs to activate scenes and
rules.
Unique Perspectives Ltd.
Page 1 of 11
www.click2go.ie ● info@click2go.ie
Ballyline ● Callan ● Co. Kilkenny ● Ireland
Phone: +353 56 7725913 ● Fax: +353 56 7725936

Advertisement

loading
Need help?

Need help?

Do you have a question about the HM-IR-TV-Z and is the answer not in the manual?

Questions and answers

Summary of Contents for HouseMate HM-IR-TV-Z

  • Page 1 April 2025 Quick Guide to the HouseMate IR-TV-Z This quick guide describes how to use the HouseMate InfraRed to Smart TV and Z-Wave interface. Note: The HouseMate IR-TV-Z has two functions: 1. Smart TV: It can be used to convert IR signals into Bluetooth HID keyboard & consumer events to control a Smart TV or other device.
  • Page 2 Z-Wave network and control appliance modules by triggering scenes, groups and rules created in the Z-Wave Gateway. The HouseMate IR-TV-Z is powered by a USB cable and has four status LEDs indicating Power On, Program Mode, Transmitting BT/Z-Wave and Receiving InfraRed.
  • Page 3 Step 1: Select Program Mode To place the HouseMate IR-TV-Z in program mode press and hold the program button at the rear of the unit until the yellow Program LED illuminates. You can exit program mode at any time by pressing this button again.
  • Page 4 HM-IR-TV-Z Quick Guide April 2025 Step 4: Test Smart TV control After enabling the Smart TV Control confirm that you can control the TV using the following pre- assigned keys: Smart TV function GEWA Button Home Volume Up Left Select...

  • Page 5: Selecting Program Mode

    There is no need to use any pc based configuration tool. The only time it is necessary to use a gateway is to add HouseMate IR-TV-Z and your electrical devices to the Z-wave network. A simple gateway that requires no pc software to carry out this procedure is the Z-Stick from Aeotec.
  • Page 6 Add/Remove from Z-Wave Network Factory Reset Cancel Program Mode Any other button Note: During programming HouseMate will automatically exit without saving after 90 seconds if no button is pressed. Add to Network Step 1: Select Program Mode & Identify Remote If you haven’t already done so select program mode and identify the IR remote.
  • Page 7 Central Scene Notification Central Scene Notification with timeout For actions 1-7 the blue Z-Wave LED will illuminate to indicate that HouseMate needs to know what Z-Wave appliance it is to control. To identify the appliance move on to step 5.
  • Page 8 #42 is sent when the button is released. You can use this feature to create momentary actions. Program Relay The HouseMate IR-TV-Z is fitted with a relay output that can be controlled from a button on your IR Remote. Step 1: Select Program Mode & Identify Remote If you haven’t already done so select program mode and identify the IR remote.

  • Page 9: Factory Reset

    Step 3: Enter Factory Reset code On the IR remote press buttons 4,3,2, and 1 one after the other. The HouseMate will reset to Factory settings, all button actions are erased and it is removed from the Z-Wave network.
  • Page 10 Do not operate the HouseMate if it behaves erratically, or shows abnormal response, heating, smoke or arcing. Turn the unit off, disconnect all cables, and consult your service agent. Ensure the HouseMate is turned off when not in use and never leave the HouseMate plugged into the mains unattended or overnight.
  • Page 11 NOTE: The HouseMate should be clearly labelled with the manufacturer’s service agent’s contact information. CE Marking The HouseMate is marketed as a technical aid for people with disabilities and satisfies the requirements of Medical Devices Regulation MDR 2017/745. HouseMate is classified as a Class 1 medical device.
