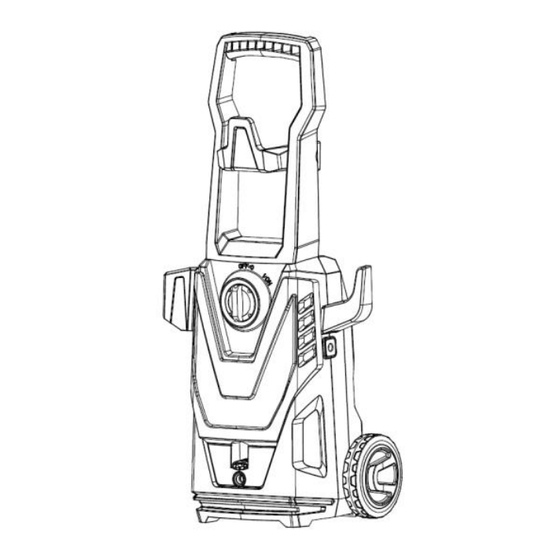

1600W High Pressure Washer
Item No:
P291
Instructions for Use
Please read and retain these instructions for future reference
Power Details:
Rated pressure
Permissible pressure (max.)
Rated flow
Max flow
Voltage/Frequency
Rated power input
Degree of Protection
Protection class
Accessories:
1. Gun Handle
2. Gun Lance + Spray Nozzle
3. High Pressure Hose
4. Water Inlet Connector
5. Pressure Washer
6. Quick Connector
7. Water Inlet Hose (not included)
8. Cable Hook
9. Gun Hook
10. Detergent Bottle
v001: 01/10/24
80Bar
120Bar
5.5L/Min
7.0L/Min
240V / 50Hz
1600 W
IPX5
II
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Victor Tools P291
Summary of Contents for Victor Tools P291
- Page 1 1600W High Pressure Washer Item No: P291 Instructions for Use v001: 01/10/24 Please read and retain these instructions for future reference Power Details: Rated pressure 80Bar Permissible pressure (max.) 120Bar Rated flow 5.5L/Min Max flow 7.0L/Min Voltage/Frequency 240V / 50Hz...
- Page 2 Please read this instruction manual thoroughly before starting and ensure you are familiar with the operation of your new HIGH PRESSURE WASHER. SAFETY STATEMENTS BEFORE USING THE PRODUCT, FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, ALSO INCLUDE ALL THE DOCUMENTS! In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid! No liability is accepted for consequential damage! In the case of...
- Page 3 Safety Rules Safety “Must Notes” 1. DO NOT use the appliance with inflammable or toxic liquids, or any products which are not compatible with the correct operation of the appliance. EXPLOSION OR POISONING HAZARD 2. DO NOT direct the water jet towards the unit itself, electrical parts or towards other electrical equipment.
- Page 4 23. Use only extension electrical cable with waterproof plug and socket; 24. Connecting or replace plug and electrical cable MUST be carried out by qualified staff; 25. DO NOT pull fiercely when discharging the plug; 26. Electrical cable should be far away from fire and sharp object; 27.
- Page 5 13. This appliance can NOT be stored in damp environment; 14. When stopping the appliance, shut the appliance’s switch before pulling plug out; 15. Use only original or manufacturer approved spare parts for safety sake 16. Total Stop (motor stops when trigger released) does NOT always keep effective and the appliance can NOT be at Total Stop for long time.
- Page 6 Assembly before operation Please read the below Operation Instruction carefully and follow it to avoid any problems when installing and operating the appliance. Please go to the dealer for exchange if assembly fails for not- matching accessories. 1. Fixing the hook and handle to the machine with attached screw in plastic bag. See figures 1 and 2．Attach the high pressure hose to the trigger gun .
- Page 7 5. Screw the water inlet coupling tight on to the water inlet Note: The inlet filter always be fitted in the water inlet pipe to filter out sand, lime stone and other impurities as these will damage the pump valves. See figure 9 and 10. 6．Connecting the lance to the gun handle.
- Page 8 Adjusting the spray The lance nozzle is adjustable to allow you to adjust the spray shape from linear shape to fan-shape. To adjust the nozzle, proceed as follows： 1．Hold the lance in one hand. 2．Turn the nozzle with the other hand. See figure 16. PLUG WIRING (UK &...
-
Page 9: Troubleshooting
Trouble shooting Symptom CAUSE Recommended action Machine refuses to start Machine not plugged in Plug in machine. Defective socket Try another socket. Fuse has blown Replace fuse. Switch off other machines. Defective extension cable Try without the extension cable. Fluctuating pressur Pump is sucking air Check that hoses and connections are airtight. -
Page 10: Care And Cleaning Instructions
CARE AND CLEANING INSTRUCTIONS • Always switch off and unplug before cleaning. • Do NOT immerse in water. Risk of electric shock. • Do NOT use abrasive cleaners or sharp utensils to clean this appliance. • Wipe surfaces with a soft dry cloth. •...
