UTICA BOILERS 550003247 Instructions

Kit installation shall be completed by qualified agency.
!
WARNING
Fire, explosion, asphyxiation and electrical shock
hazard. Improper installation could result in death or
serious injury. Read these instructions and understand
all requirements, including requirements of authority
having jurisdiction, before beginning installation.
Installation not complete until appliance operation
is verified per Installation, Operation & Maintenance
Manual provided with boiler.
!
CAUTION
Laceration, burn hazard. Metal edges and parts may
have sharp edges and/or may be hot. Use appropriate
personal protection equipment to include safety
glasses and gloves when installing or servicing this
appliance. Failure to follow these instructions could
result in minor or moderate injury.
Condensate Trap Kit Replacement Instructions
1.
Follow instructions To TURN OFF GAS TO APPLIANCE found
on Operating Instructions label on boiler or in Installation,
Operation & Maintenance Manual. Verify all electrical power to
boiler is turned off.
!
WARNING
Electrical shock hazard. Turn OFF electrical power
supply at service panel.
2.
Remove two (2) screws from front jacket cover. Lift jacket off.
!
WARNING
Burn hazard. Verify unit has cooled before servicing. Use
appropriate personal protection equipment.
3.
Inspect combustion chamber through sight glass. Verify
flame is not present. See Figure 1.
4.
Remove two (2) screws securing condensate collector plug
from botton of trap. See Figure 2.
5.
Disconnect field piping from units discharge pipe.
6.
Remove two (2) screws securing support bracket to back of
unit. See Figure 2.
7.
Lift up on condensate trap and pull through bottom panel.
8.
Remove clamps from top of condensate trap. Disconnect
tubing.
CONDENSATE TRAP REPLACEMENT
KIT 550003247 INSTRUCTIONS
FOR UCS & DMG 380 BOILER

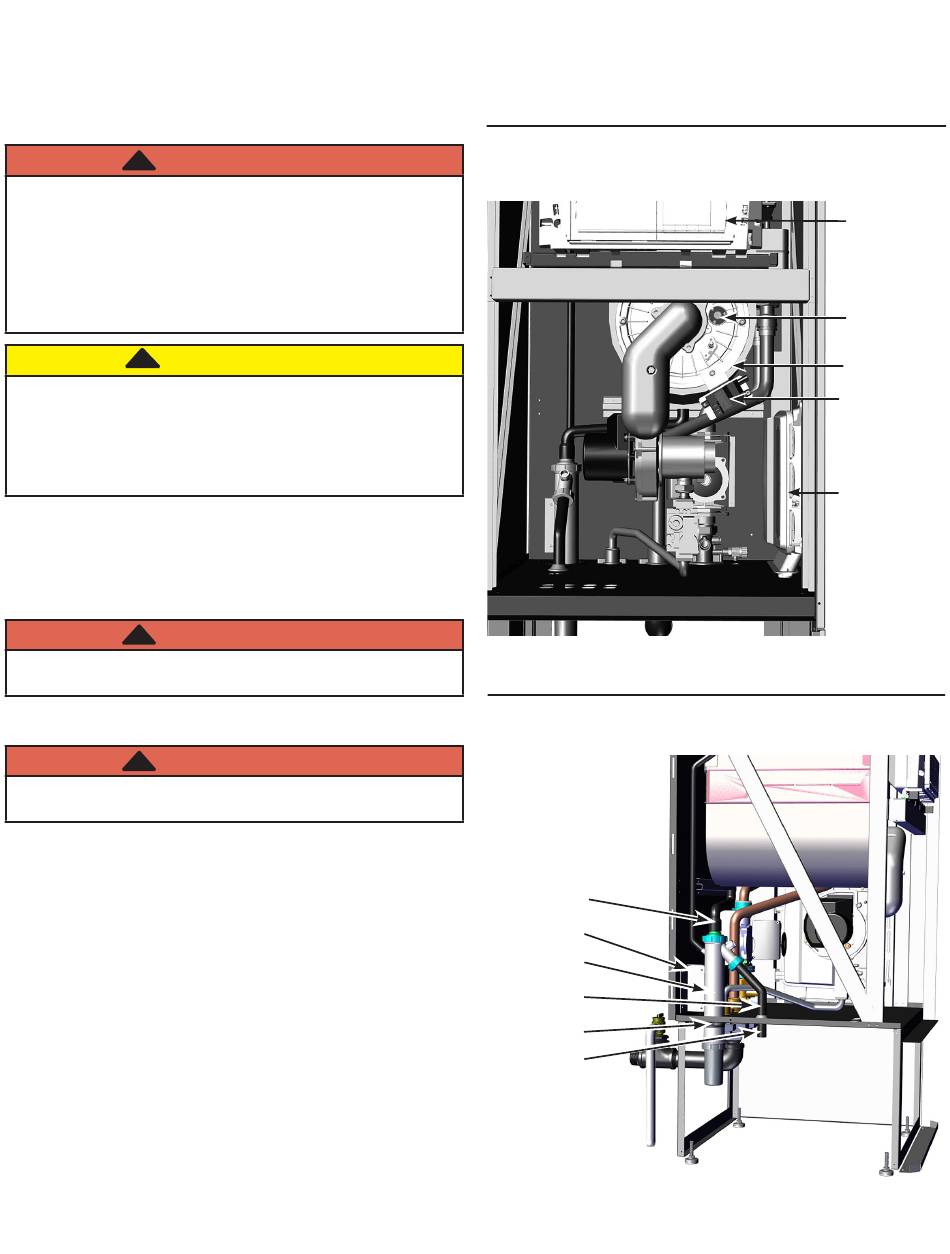

Figure 1 - Sight Glass
Figure 2 - Condensate Trap - (Left and front panels
removed for illustration only)
Condensate
Tubing w/Clamps
Support Bracket
Condensate Trap
Condensate
Discharge Pipe
Grommet
Field Piping
Connection
Illustrations are a depiction of the boiler for general location of parts and are
subject to change without notice.
Control
Sight Glass
Heat Exchanger
Spark Generator
Auxiliary Control
Box
P/N 240011716 Rev. A [02/15/2017]
