Dekko ECA Sto-Way Surface System 42 Installation Manual

STO-WAY (SURFACE) SYSTEM 42 INSTALLATION

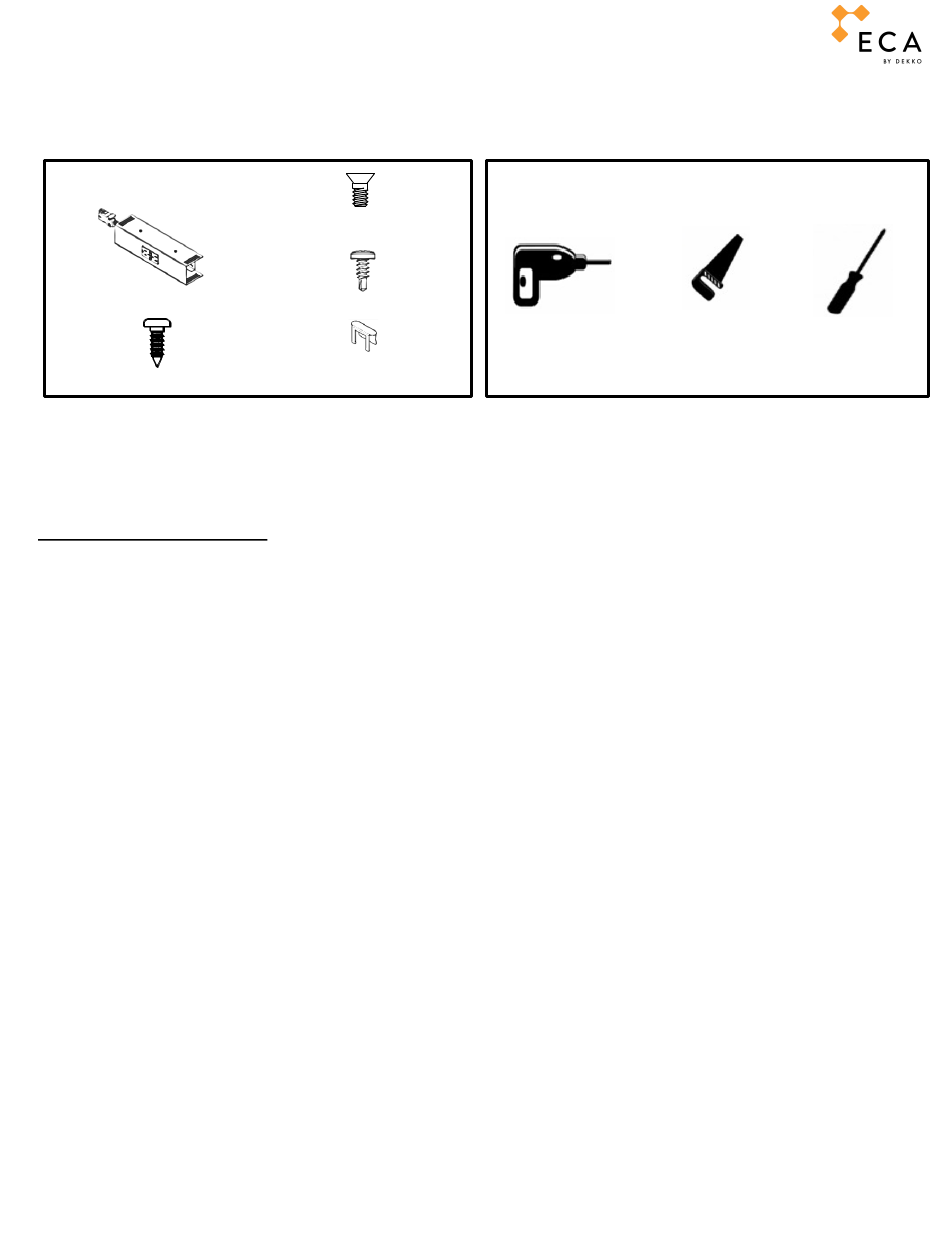

Components & Hardware
(A) Sto-Way(Surface)
(B) Wood Screw #8 X1/2" QTY. 4
Notes: Unit is not for permanent installation as part of the building structure and not for mounting in a permanently installed furnishing such as a
countertop. Unit is to be mounted above the furnishing surface and oriented such a way that spilled liquid on the furnishing surface cannot
enter any part of the unit. * Use for System 42 and Corded Versions use. ** Ensure all screws will not pierce finished work surface.
Recommended for mounting system 42 and corded versions to wood 5/8" to 1.0" thick and sheet metal .025" to 0.78" thick
Do not connect more than 12 outlets on one circuit Caution: Disconnect electrical load before servicing the unit
Installation Instructions:
1-
Remove the finish cover from the power unit(s). Save the screws for use later.
2-
Determine the power units mounting location and prepare the surface per (fig.1)
Ensure the correct spacing to allow the finish cover to be reinstalled later.
3-
Position the cable pass through opening (figs. 2 & 3)
4-
(Attach interconnecting cable if needed) Insert the cable end through the pass through (fig. 2). Mount the
power unit using screw (D) for sheet metal or screw (B) for wood** (fig. 3). Don't tighten the screws all the way.
Place the cover over the base to ensure proper fit shifting the base as needed. Tighten the mounting screws to
fix in place.
5-
To connect unit #2 align like color contacts and connect the base with the interconnecting cable (fig. 5). Mount
the power unit using screw (D) for sheet metal or screw (B) for wood** (fig. 3). Don't tighten the screws all the
way. Place the cover over the base to ensure proper fit adjusting the base as needed. Tighten the mounting
screws to fix in place.
6-
Repeat steps 1-5 as needed until the last unit in line is installed.
7-
Connect the power infeed (sold separately) to the first power unit in the circuit (fig.5).
8-
Attach the end cap (E) to the last power unit in the circuit if desired (fig.6).
9-
Mount the finish cover(s) with two screws (C) removed during step one to each
Power box (fig. 4).
