Summary of Contents for Calca WY Series

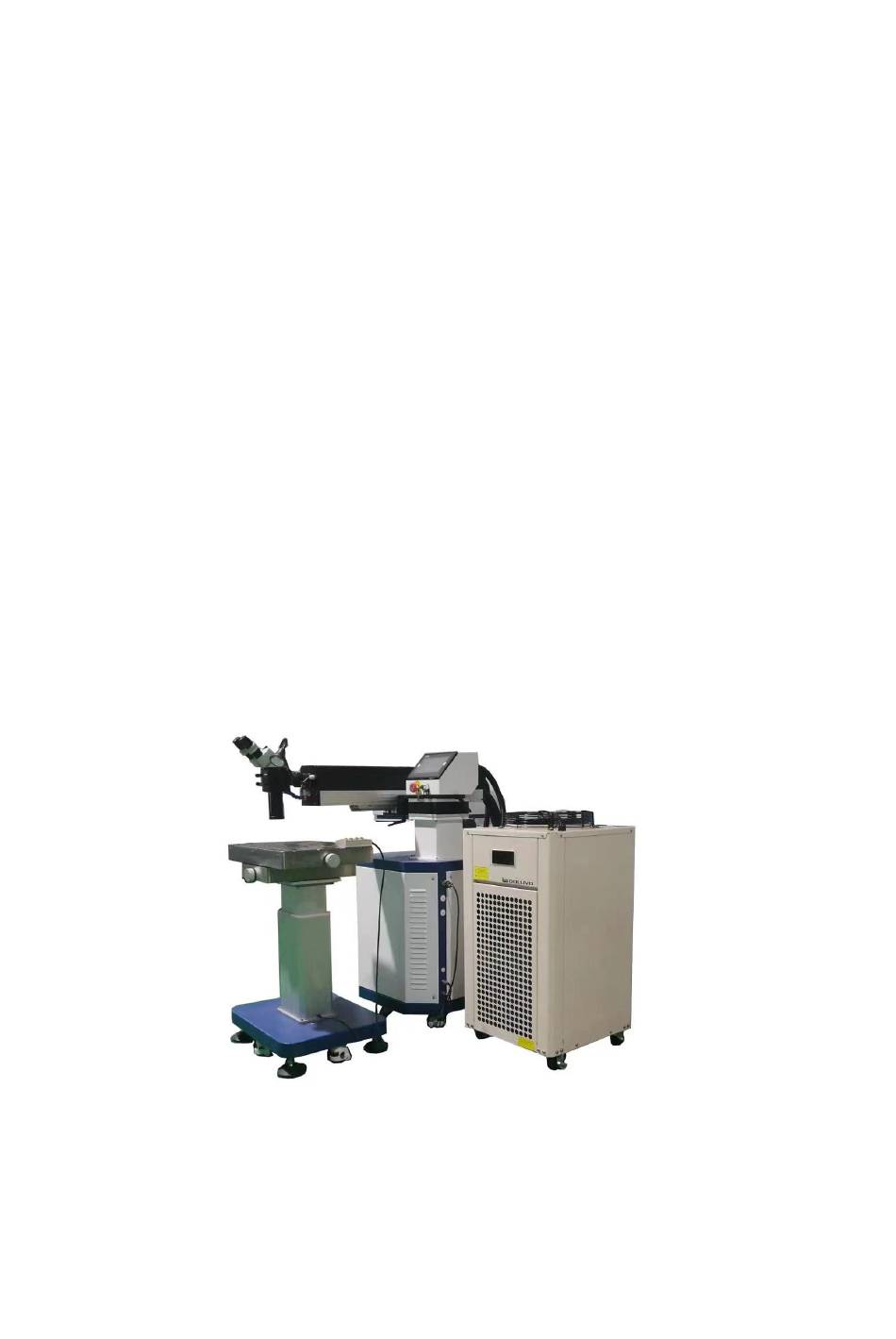

- Page 1 LWM-CY-WY300A General Laser Welder User Manual The above picture only for reference Please on a real configuration basis...
-
Page 2: Table Of Contents
Contents 1. Overview ……………………………………………………………………………………….…… 3 2. Initial Installation &Application ………………………………...…………………………3 3. Brief Description & Technical Index ……………………………………………….….…5 4. Overall Structure and Maintenance ……………………………………………………10 4.1 Laser 4.2 Power Supply 4.3 Optical System 4.4 Cooling System 5. Panel operation ………………………………………………………………………….…………16 6. Welding operation …………………………………………………………………...……………18 7. -
Page 3: Overview
1.Overview WY series laser welding machine is specifically designed for mold manufacturing and repair industries, and mainly used for precision mold repairing. The working principle of this laser machine is to take the advantages of the laser deposit welding and uses the technology of collective and spot welding with high heat of laser. - Page 4 （Spare parts） （Whole System）...
-
Page 5: Brief Description & Technical Index
3. Brief Description & Specifications 3.1 wiring for the whole system Power supply cable for working stage Control cable Power supply cable for working table Chiller Water Pressure power Water Protection input Water Water Pressure Protection Power supply cable output... - Page 6 Please fix up the two screws You may adjust the angle after after install the microscope loose the screws Please fulfill the chiller; the level of the water should over the cooling pipe.
- Page 7 3.2 Alignment for the optical path of the laser cavity (Here we take Spot Laser Welder as an example which has same structure with WY series welder) Remove the cover Remove the cover Put on the Connector Put on the Connector...
- Page 8 After connecting the power supply, we need to take off the cover of the laser cavity and make the alignment. 1、 Take the cover of the cavity. 2、 Remove the small paper from the two side of the YAD ROD. 3、...
- Page 9 3.1 Brief Description Laser mold welding machine is mainly used for the repairing of precision plastic molds and suitable for the repair welding of different types of mold steel. In addition, it also can be used for the welding of all sorts of small and precision metal parts (K gold, Platinum, Titanium, Silver, Copper Nickel, Aluminum, Magnesium, Stainless steel, etc.), featuring firm welding joints and smoothly welding lines.
-
Page 10: Overall Structure And Maintenance
3.2 Technical Index Model CY-WY300 Laser working substance ：YAG ceramic cavity Max. single-pulse energy Rated output power 300W Max. peak power Laser wavelength 1064nm Focal beam diameter Ф 0.2-3.0mm adjustable Min. molten pool 0.3mm Pulsed width 0.3-20ms adjustable Pulse depth 0. -
Page 11: Cooling System
e) Other parts: High voltage electrodes, insulation base plate, positioning bracket, adjustable diaphragm frame and laser holder. Precautions and maintenance (2). As the machine is highly precise equipment whose discharging features the high pulse voltage and charging features the large capacity, and the laser focusing energy is highly centralized, the operators must obtain professional knowledge and skills before they work on the machine. - Page 12 the output is not ideal, repeatedly adjust the resonant cavity; j. Cover the laser with outer hood. D. Nd ：YAG crystal is the core part of the laser, and is fairly expensive. Therefore, it should be installed with great care. The two end faces of Nd ：YAG crystal rod is absolutely parallel to each other and has high cleanliness.
- Page 13 A. Step-up/rectification circuit: it employs the single-phase stepping up, which converts AC220V into DV500V that supplies power to the charging circuit. B. Charging circuit The charging circuit is composed of the IGBT switch tubes. This charging mode will increase the repetition rate of the circuit.
- Page 14 4.3 Optics System Optical Principle Diagram of Laser Welding Machine Laser Cavity Output coupler BeamExpander Focus lens Adjust the crossing line of the microscope Focus lens Laser beam off-focus Negative Focus dot off-focus Positive Impact of focus set over on welding The Laser welding normally needs a certain degree of off-focus operation, for the welding point can be vaporized into a hole if the power density at facula center of laser focus is excessively high.
- Page 15 and vaporizing that pass the optical energy into the in-depth part of the material. Therefore, in actual applications, if the large penetration depth is required, the negative off-focus operation should be carried out. When thin materials are welded, the positive off-focus operation is needed. (1) Microscope This machine employs the binocular zoom stereo microscope, featuring its clear and stereo vision.
-
Page 16: Panel Operation
rod) ,Xenon lamp, lamp electrode of the laser. The deionized water with absorbed heat will pass by the heat exchanger discharging the heat and flow back to the water tank. The resistance rate of the deionized water is required to be higher than 0.5 MΩ—cm. After some time of use, the deionized water’s resistance rate will drop and it may have impurities, dirt or turbidity that will make the xenon lamp not lightened or pollute the laser cavity and glass tube, and lower the luminous efficiency. - Page 17 Power supply switch key Adjust the laser beam, microscope and Crossing use these 3 screw to alignment. LCD Display illustrate: CLOS for turn off the machine POR for Storage PAL for Pulse CUR for current WID for pulse width FRE for frequency FAC for beam size Pay more attention on Buzzer alarm protection on following sections: Presslow / Temp /Waterepre /Overtime /Commerr...
-
Page 18: Welding Operation
When the pedal switch is closed and the word “Laser” is displayed on the screen, the liquid crystal light valve can shield the flashing light. Under non-work conditions, the word “ Laser” won’t be displayed. Working current: It displays the discharging current for the laser. When the pulse width is identical, the higher the working voltage is, the higher the output energy of laser will be. -
Page 19: Specialties
be overlapped to the welding point on the work piece. At the time, step down the pedal switch to activate the laser to start the welding process. 7. Specialties The machine features its small size, easy operation, firm and good-looking welding point, and is suitable for repairing of different kinds of metal materials and can work for long hours, with small heated area and pollution free worksite. -
Page 20: Warranty
9. Warranty CY OPTO guarantee that the technical parameter of the machine WY200 laser welder accord to the technical requirements. The guarantee covers a period of twelve (12) months from the date of produce. The guarantee shall not apply in the event that the sub-assembly identification markings have been removed, defaced or altered or if any sub-assembly or part has been replaced or modified without the express consent of CY OPTO. - Page 21 · Do not obey the requirement parameter. · Mishandling to make the fiber burnt and damaged. · Unauthorized to open the laser box or change the components. · the guarantee do not included any freight cost of shipping...
-
Page 22: Service Report
10. Service Report Customer registered at (Time & Date): Under Warranty: □Yes □No Customer： Date of Commencement Time Date of Completion Time Address： Contact Person： Tel： Mode： Serial No.： Date of Setup： Fault Descriptions： Fault Identified： Measures Countered： Replaced Parts List： Part name and model Quantity Unit Price...
