Remote Control Rotation VHF & UHF
Combo TV Antenna
What's in the box?
Antenna main body
Power supply unit (PSU) *1
1.5-meter 3C2V coaxial cable
Antenna Specifica on
Frequency
Channels
Range
174-230MHz
CH.5-12
470-862MHz
CH.21-69
PSU Specifica on
Power Input
40-862MHz
AC110V 60Hz AC15V 100mA
How To Install
4*30MM screw *2
Rotation motor*1
No. of
Impedance
Elements
7
Power Output
Insert Loss
0.8dB
E
C
Connecting part *2
Remote control*1
Antenna
Front-back
Gain
Ratio
7-11dB
4-6dBi
7-10dBi
10-15dB
Operating
Temperature
Short-circuit Protection
Range
0-40 C
O
D
Rotating button
Control Rotation
SKU: 203NA-0003
Beam
Antenna
Width
Length
H85°/V105°
655mm
H55°/V75°
Yes
A
B
Remote
Advertisement
Related Manuals for 1byone Intelligent Twilight Switch
Summary of Contents for 1byone Intelligent Twilight Switch
- Page 1 Remote Control Rotation VHF & UHF Combo TV Antenna SKU: 203NA-0003 What’s in the box? Antenna main body 4*30MM screw *2 Connecting part *2 Power supply unit (PSU) *1 Rotation motor*1 Remote control*1 1.5-meter 3C2V coaxial cable Antenna Specifica on Antenna Beam Frequency...

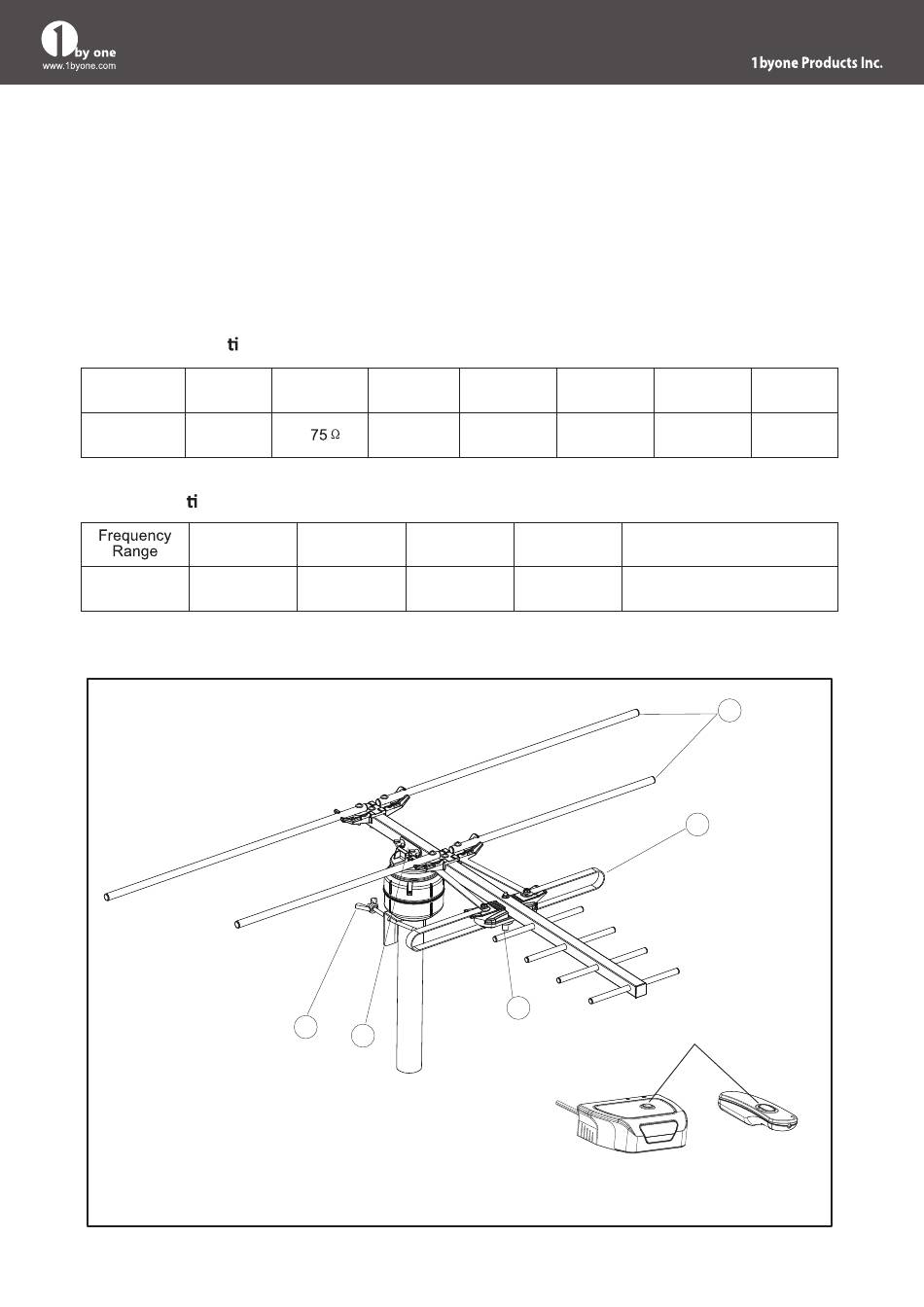

- Page 2 How To Install Step 1. Unfold the antenna booms until they stay in horizontal orientation (Refer to Graph A and B) Step 2. Combine the Rotation motor and the Antenna with Connecting part and two 4*30mm screws(Both included in the package). Please screw them tightly in case the antenna fell apart when the rotation motor starts working. (Refer to Graph C) Step 3. Connect the weather-proof F connector to the dipole box. Tighten the F connector and protect it with the weather-proof cover. (Refer to Graph D) Step 4. Mount the antenna to a pole with the connecting part (Included in the package) as high as possible and point the antenna towards the TV tower for the best reception. Then connect the other of the coaxial cable to the F connector on the PSU marked “IN”. Step 5. Connect the port on the PSU marked “TV” to the Antenna Input on your set-top box or digital TV set by the 1.5-meter 3C2V coaxial cable. (Included in the package) Step 6. Plug the PSU into a socket, turn on your TV and run a channel scan. If youʼre not receiving all your local channels, you can adjust the direction of the antenna by long-pressing the remote control or the push button on the power supply unit. The antenna can complete a full 360° rotation. If you keep pressing it, the antenna will rotate back. Note: Do remember to do a channel scan every time you change the antennaʼs direction.
