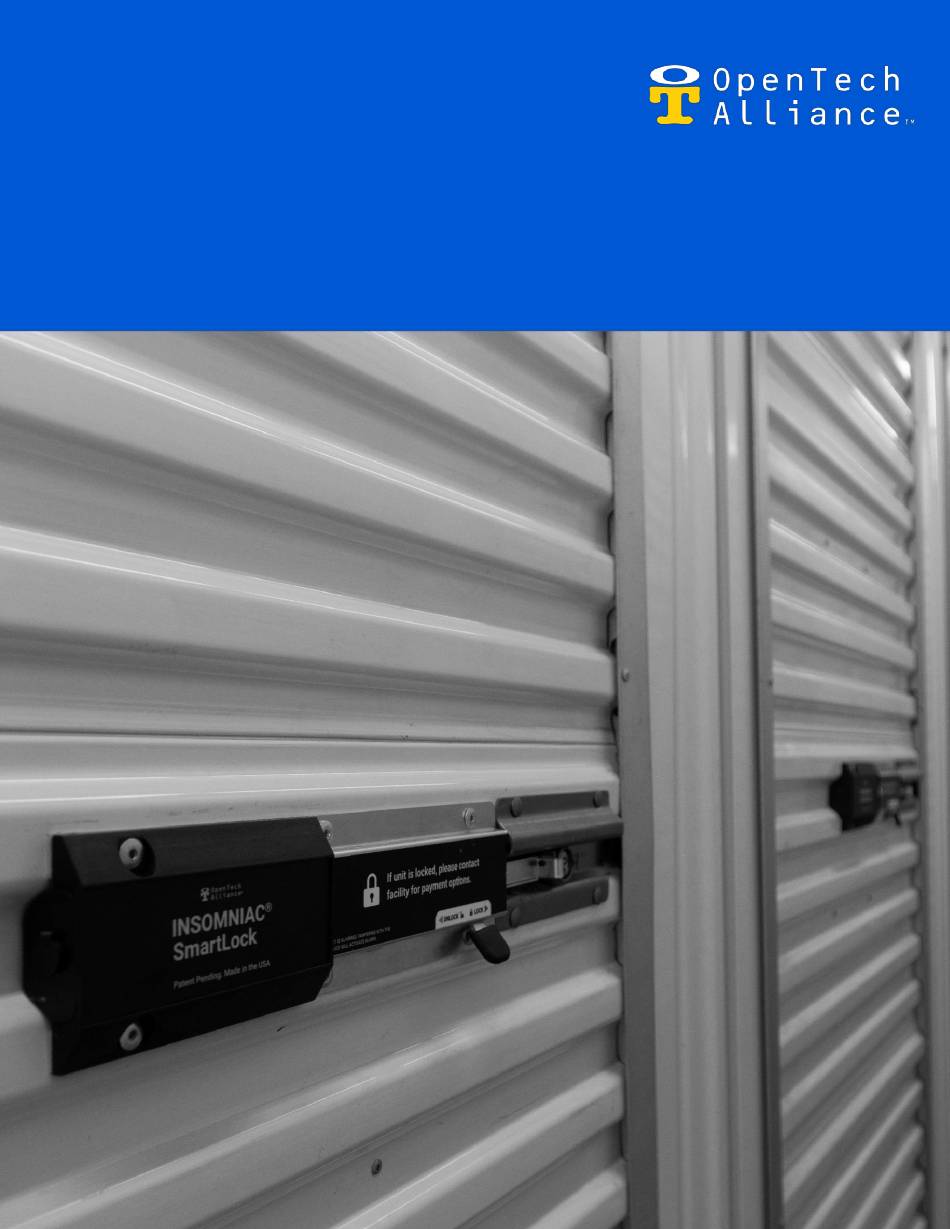

- Page 1 ® INSOMNIAC SmartLock - S Installation Manual Go to Top Installation Manual: SmartLock S Page 1 of 9 2025-03-07 2101 W Peoria Ave, Suite 100, Phoenix, AZ 85029 | 602.749.9370 | www.opentechalliance.com...
-
Page 2: Table Of Contents
INSOMNIAC ® SmartLock - S Installation Manual Table of Contents Introduction ............................3 INSOMNIAC® SmartLock - S Diagram ..................3 Required Tools / Specifications ......................4 Tools Required for the Installation ....................4 Technical Specifications ......................... 4 General Specifications ........................4 Installation Guide .......................... -
Page 3: Introduction
INSOMNIAC SmartLock - S Installation Manual Sales: +1.800.419.2006 Support: +1.602.773.1700 Website: opentechalliance.com Introduction This document describes the installation process of the INSOMNIAC® SmartLock - S for the following door configuration: Square Corrugation • Rollup Doors • Swing Doors o Note that swing doors will not allow the device to report door open and closed events. -
Page 4: Required Tools / Specifications
Required Tools / Specifications Tools Required for the Installation Driver Drill 17/64” Drill Bits Carbide Drill Bits or HSS Bits Recommended Pop Rivet Tool 7/16” Socket Wrench Powered Rivet Tool Recommended Technical Specifications BATTERY TYPE 8 STANDARD, NON-LITHIUM ALKALINE AA BATTERIES, FIELD-REPLACEABLE BATTERY VOLTAGE 12V - 12.5V... -
Page 5: Installation Guide
Installation Guide General Information The following sections introduce the installation of the INSOMNIAC® SmartLock - S on a square corrugated door for new and existing builds. INSOMNIAC® SmartLock - S Package Contents INSOMNIAC® (2) ¼" Pop SmartLock S Rivets Battery Pack (4) 7/16”... -
Page 6: Technical Information
Technical Information INSOMNIAC® SmartLock Network and Battery Life To ensure extended battery life and overall network redundancy in your INSOMNIAC® SmartLock wireless network, check the diagram below and follow these rules: Rule 1: Each INSOMNIAC® SmartLock should be placed within approximately 16.76 meters laterally (55 feet, side to side) of another active SmartLock or an Access Point/Edge Router, ensuring there is a clear line of sight between them. -
Page 7: Corrugated Door Installation
Corrugated Door Installation For any assistance during installation please contact our onboarding team. (602)773-1700 - ioeonboarding@opentechalliance.com Remember! Exercise your professional judgment, as each door installation may vary. Pre-Requisites Ensure the Access Points are online and within range of the units you intend to install. Installation Steps 1. - Page 8 4. Mount the SmartLock a. Align the SmartLock with the mounting holes, ensuring the 4 integrated post studs fit properly. b. Install one pop rivet in the front top-left mounting hole to temporarily secure the SmartLock. This will serve as a pivot point for adjustments.
-
Page 9: Insomniac® Smartlock Maintenance
INSOMNIAC® SmartLock Maintenance Cleaning the Enclosure and Touchpad Inspect and clean the enclosure and touchpad periodically to ensure superior performance over time. To clean, spray the SmartLock with a mild soapy water solution then wipe it with a soft cloth. •...
