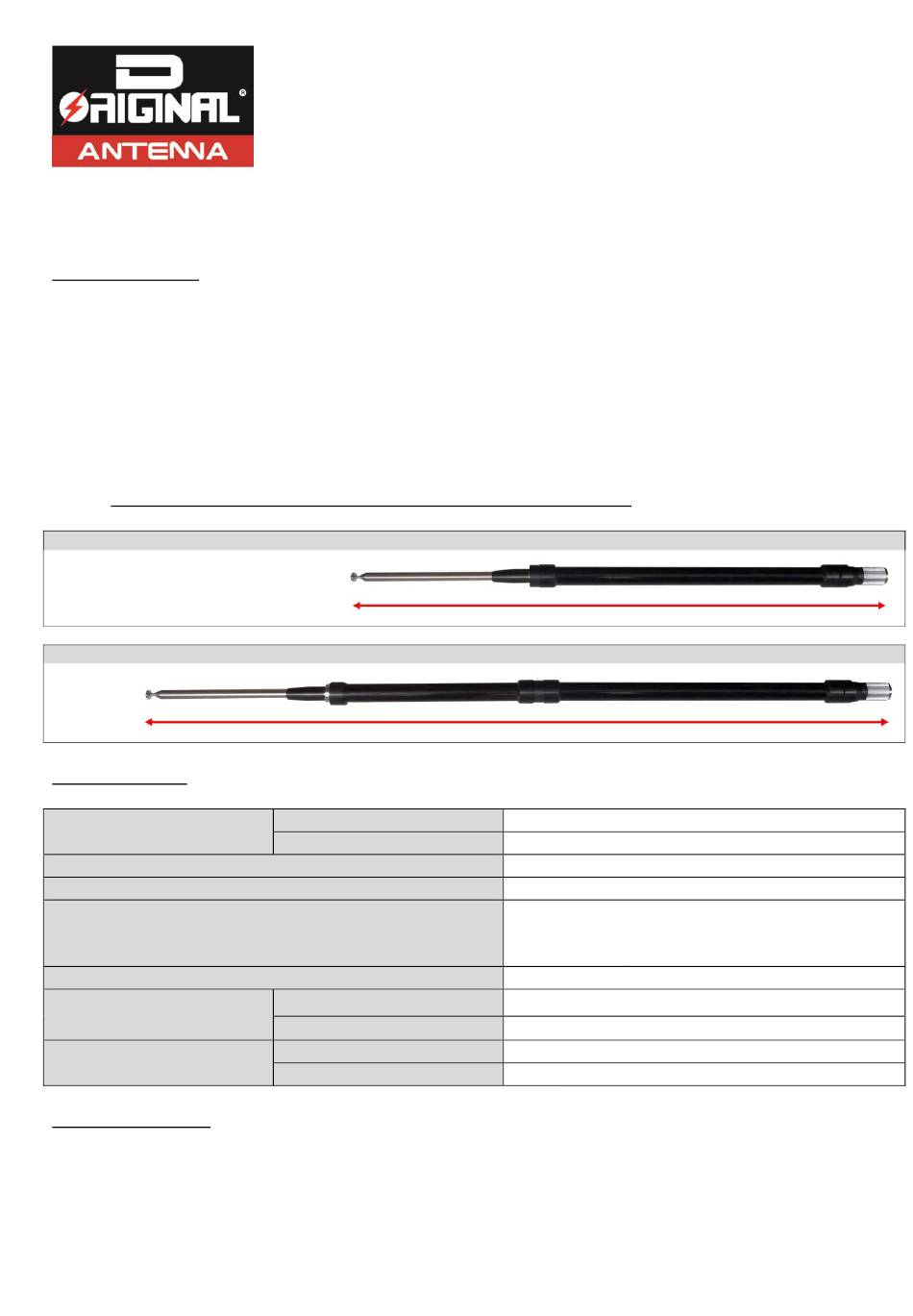

D-Original DX-HF-PRO-2-PLUS-T Quick Start Manual

The DX-HF-PRO-2-PLUS-T portable antenna is a broadband antenna that allows working in a wide range of amateur
radio frequencies (3.5 MHz ~ 30 MHz + 50 MHz + 144 MHz)
IMPORTANT NOTES

Antenna especially suitable for portable / portable use due to its small size.

It should not be used with the vehicle moving as it is not prepared for the wind force.

The use of an antenna coupler is recommended for best performance.

Do not touch the antenna during transmission due to the risk of radio frequency emission.

This product is manufactured under strict quality control. However, if it is damaged in transit, consult your
dealer immediately.

The design and specifications of this product are subject to change for future improvement without prior
notice.

For use in the 3.5 MHz band, you must attach the optional coil supplied.
CHARACTERISTICS
Frequencies
Maximum power
Impedance
Type
Connector
Length
Weight
ANTENNA ASSEMBLY

Connect the upper element and the lower element and fix them by hand. (do not use tools).

Screw the elements connected to the antenna body. (do not use tools).

The antenna includes:
o Optional coil for 3.5 MHz
o 10 section stainless steel telescopic rod.
Length of the rod collected: 18.5 cm. Extended rod length: 127 cm
DX-HF-PRO-2-PLUS-T
BROADBAND PORTABLE ANTENNA FOR HAM RADIO
Antenna with no coil for 3.5 MHz
Antenna with coil for 3.5 MHz
With 3.5 MHz coil
With no 3.5 MHz coil
With 3.5 MHz coil
With no 3.5 MHz coil
With 3.5 MHz coil
With no 3.5 MHz coil
HF / VHF
3.5 MHz ~ 144 MHz
57 cm
78.5 cm
3.5 MHz.
7 ~ 30 MHz + 50 MHz + 144 MHz.
130 W PEP
50 Ω
HF: 1/4 λ reduced type
50 MHz: 1/4 λ
144 MHz: 5/8 λ
PL male
78.5 ~ 215 cm.
57 ~ 188 cm.
440 gr.
335 gr.
