Watec WAT-200D Operation Manual

ＷＡＴＥＲ－ＲＥＳＩＳＴＡＮＴ ＴＹＰＥ ＷＡＴＥＲ－ＲＥＳＩＳＴＡＮＴ ＴＹＰＥ ＷＡＴＥＲ－ＲＥＳＩＳＴＡＮＴ ＴＹＰＥ ＷＡＴＥＲ－ＲＥＳＩＳＴＡＮＴ ＴＹＰＥ
ＩＮＴＲＯＤＵＣＴＩＯＮ： ＩＮＴＲＯＤＵＣＴＩＯＮ：
ＩＮＴＲＯＤＵＣＴＩＯＮ： ＩＮＴＲＯＤＵＣＴＩＯＮ：
Thank you for choosing our WAT-200D DIGITAL CCD COLOR Camera.
WATEC hopes that both the quality and design satisfy your requirements.
Before proceeding to install or operate the WAT-200D, please read and understand thoroughly the contents
of this Operation Manual.
For future reference we also advise safe keeping of this manual.
ＣＡＵＴＩＯＮＳ： ＣＡＵＴＩＯＮＳ： ＣＡＵＴＩＯＮＳ： ＣＡＵＴＩＯＮＳ：
1. Use a stabilized power adaptor designed for DC+15V～16.5V with a current capacity of 600mA. The attached
power adaptor AD-156 is optimal for use with the WAT-200D.
2. The WAT-200D is of water-resistance. Make sure not to use the WAT-200D under water. Make sure to avoid any
watery surrounding for its use and to avoid such an environment that the industrial medication will affect
the housing of the WAT-200D.
Attached WAT-200RX, receiver and AD-156, AC adaptor are not water-resistant.
3. Avoid the striking of hard objects or dropping the unit.
4. Do not disassemble and/or modify the WAT-200D or any of its component parts or accessories. WATEC can not
be held responsible for equipment failure or any damage and/or trouble caused by such action.
5. Do not install the WAT-200D near heat sources, such as radiators or heating air ducts, or in a position
subject to direct sunlight ※ , excessive dust, mechanical vibration or shock.
6. When installing the WAT-200D in an industrial or commercial environment (i.e. within equipment housing,
near other electronic device, etc.) Make sure to avoid any strong electromagnetic field, otherwise
the video output may be distorted and monitor clearness compromised.
7. Use only the standard WAT-200RX, receiver for the coaxial power/signal transmission supply model.
8. Do not connect any power supply directly to the VIDEO OUT terminal of the unit. This may cause damage.
9. When a cable operation system, such as video/power multiplex transmission is being used, check the
specifications or requirements of your monitor for proper connection to the video signal terminal of the
camera.
10. Do not make connections and/or operate the WAT-200D with wet hands.
11. Should the WAT-200D not work properly, switch off the power and then, check that power and video terminals
are properly connected.
※ Sunlight shining directly onto the camera lens can cause damage to the CCD.
ＣＯＮＴＥＮＴ： ＣＯＮＴＥＮＴ：
ＣＯＮＴＥＮＴ： ＣＯＮＴＥＮＴ：

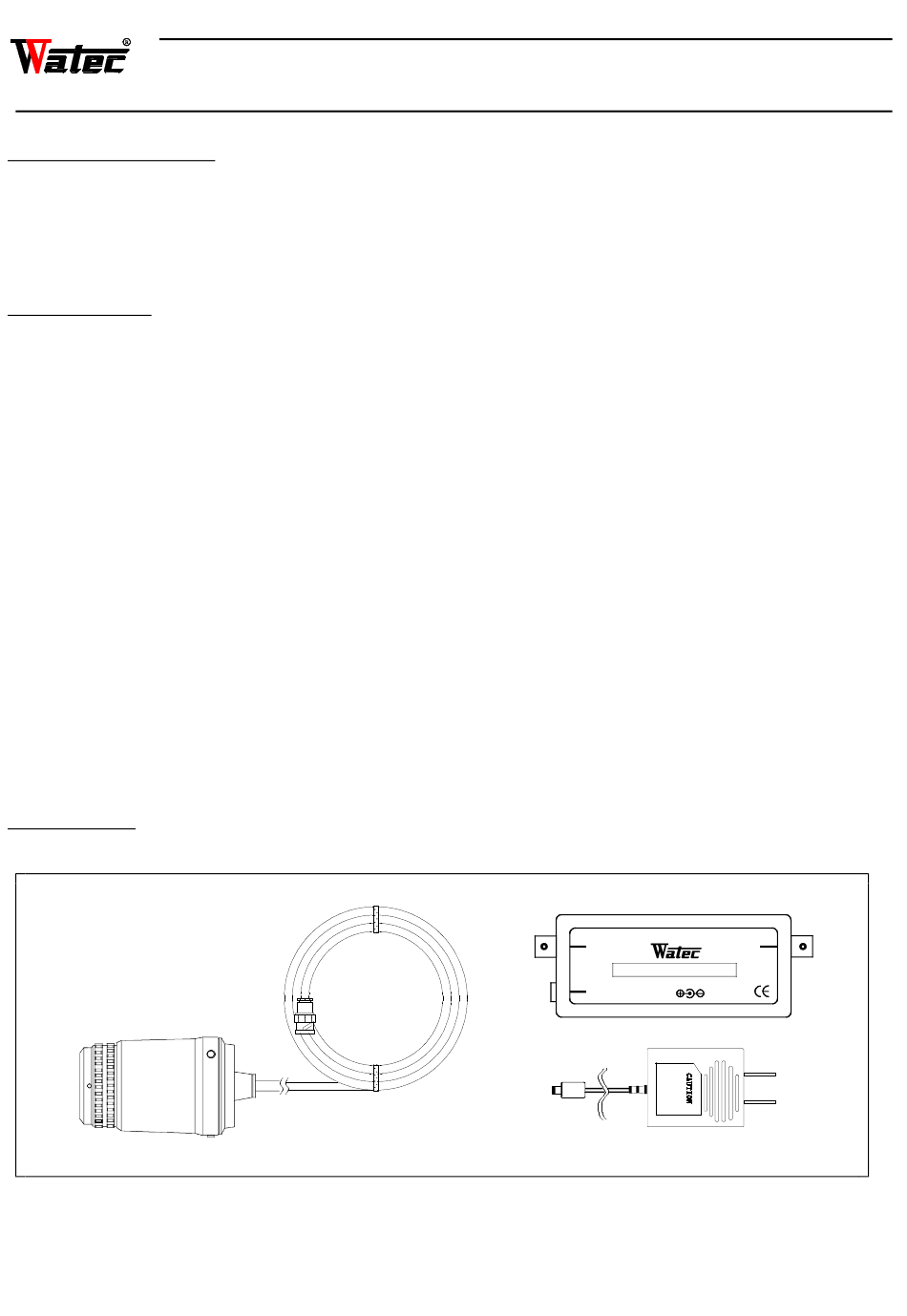

Using the contents figures below, check to make sure all parts are present before use.
Ｔｈｅ ＷＡＴ－２００Ｄ ｐａｒｔｓ
ＷＡＴ－２００Ｄ
Note : The WAT-200D stands the company's test for water-resistance corresponding to Japanese Water-resistance Note : The WAT-200D stands the company's test for water-resistance corresponding to Japanese Water-resistance
Note : The WAT-200D stands the company's test for water-resistance corresponding to Japanese Water-resistance Note : The WAT-200D stands the company's test for water-resistance corresponding to Japanese Water-resistance
standard(JIS C-0920, Protection class 6, Protection against water invasion). standard(JIS C-0920, Protection class 6, Protection against water invasion). standard(JIS C-0920, Protection class 6, Protection against water invasion). standard(JIS C-0920, Protection class 6, Protection against water invasion).
ＣＣＤ ＣＯＬＯＲ ＣＡＭＥＲＡ ＣＣＤ ＣＯＬＯＲ ＣＡＭＥＲＡ
ＣＣＤ ＣＯＬＯＲ ＣＡＭＥＲＡ ＣＣＤ ＣＯＬＯＲ ＣＡＭＥＲＡ
ＯＰＥＲＡＴＩＯＮ ＭＡＮＵＡＬ
ＷＡＴ－２００Ｄ
M O NIT O R C A M E R A
Ｗ Ａ Ｔ － ２ ０ ０ Ｒ Ｘ
W A T E C C O. , LT D. M A D E IN J A P A N.
P O W E R IN /
(D C +1 ５ V)
A D -15 ６
ＷＡＴ－２００ＲＸ
ＡＤ－１５６
