- Page 1 IKEA FORSÅ Work Lamp Owner’s Manual...
- Page 2 Table of Contents (Adapted Version of this) III. Warnings and Hazards Introduction (P.4) Definitions of Key Terms Technical Description (P.5-7) Instructions and Procedures (P.8-11) VII. (a) Assembly Guide (P.8-10) (b) Using the IKEA FORSA Work Lamp (P.11) VIII. Trouble-shooting Guide...
- Page 3 Introduction The IKEA FORSA Work Lamp is a versatile aide for your activities that require lighting over broad surface-spaces or from difficult angles. It is easy to assemble; extendable to a height of 18.5 inches or a reach of 17 inches; and its shade rotates 360 degrees to provide a strong, flexible source of illumination for projects that require focus.
-
Page 4: Technical Description
Lampshade handle turns lampshade 360 degrees Lamp shade rotates 360 degrees (1) Upper-joint (2) Elbow-joint Double-springs and double-strut arms (3) Base-joint for increased stability and durability Power switch Base: 1.8 kg Power cord: 1.8 m Measurements taken from IKEA product page... - Page 5 The lamp socket is located on the inside of the lampshade, at the point closest to the upper joint. The FORSA Work Lamp is compatible with size E14 lightbulbs with a maximum of 40 Watts. The IKEA Solhetta LED bulb (E14 470) is recommended...
- Page 6 If you work in an office or in the home, no problem! The IKEA Forsa Work Lamp boasts a friendly powder-blue profile to mask its functionality in a studios and...
-
Page 7: Assembly Guide
Assembly Guide 1. Please make sure all of the parts are present before continuing: Included Sold Separately Lamp Shade (1) IKEA Solhetta LED bulb—E14 470 (1) Screw-in Lamp Handle (1) Flat-head Screwdriver (1) Lamp Body (1) Lamp Base (1)Placeholder from Youtube—will sub later (finishing this... - Page 8 3. Attach the springs near (a) the base and (b) elbow joints (a) base spring (b) elbow spring 4. Put the Lamp Shade onto the Lamp Head 5. (a) Insert the threaded end of the Lamp Shade Handed into the neck of the Lamp Shade (b) Tighten turn clockwise until it fits snugly...

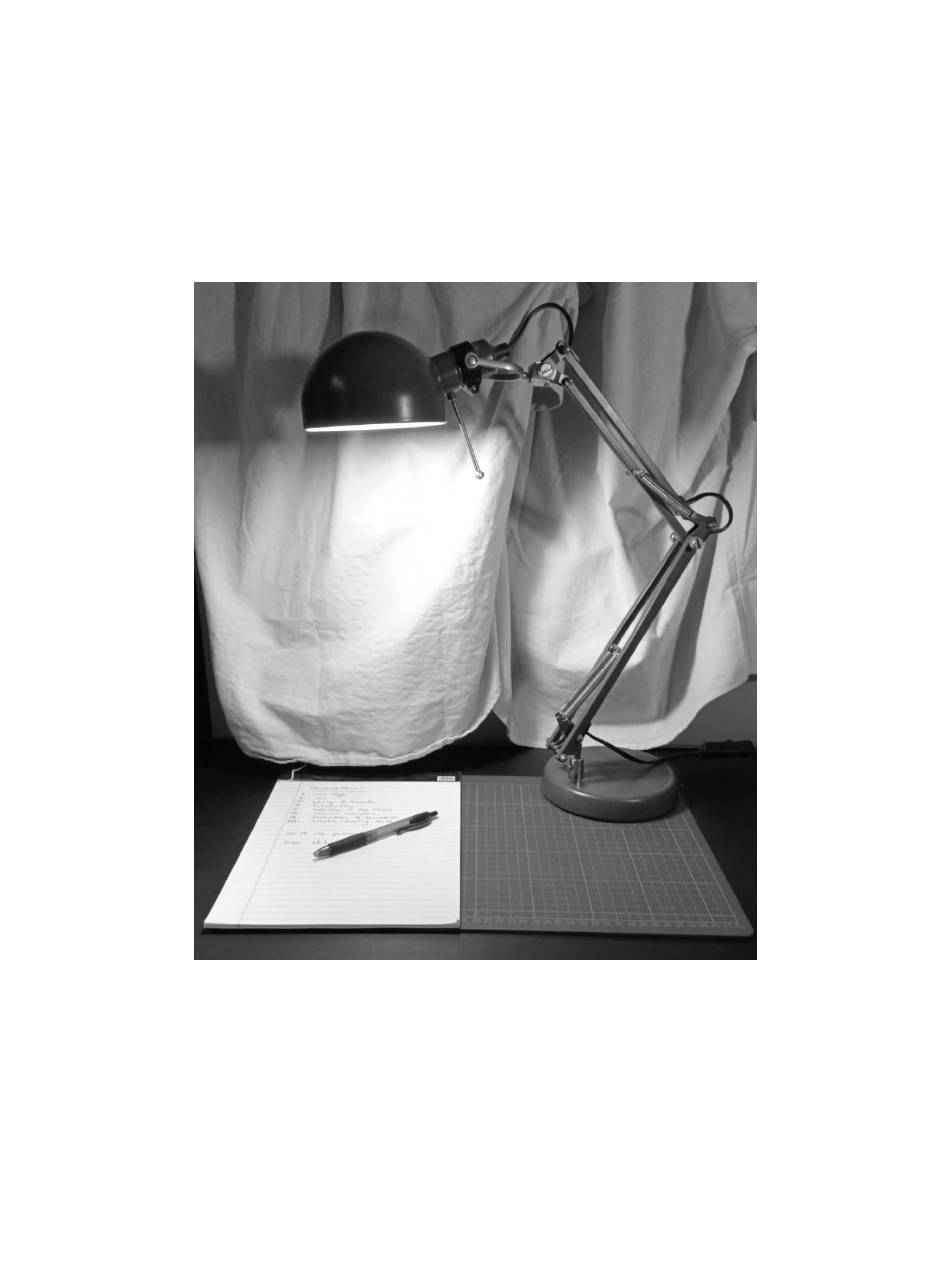

- Page 9 (1) upper joint (2) elbow joint 7. Take IKEA Solhetta LED bulb—E14 470 and rotate the base into the socket inside the Lamp head (now covered by the Lamp Shade) 8. When assembled, the IKEA FORSA Work Lamp will look like this:...
- Page 10 Using the IKEA FORSA Work LAMP 1) Take the plug located at the end of the power cord and insert it into an outlet 2) Locate the switch along the power cord (Need a shot without fingers) 3) To turn on, press the side of the switch down that is closest to the lamp...
