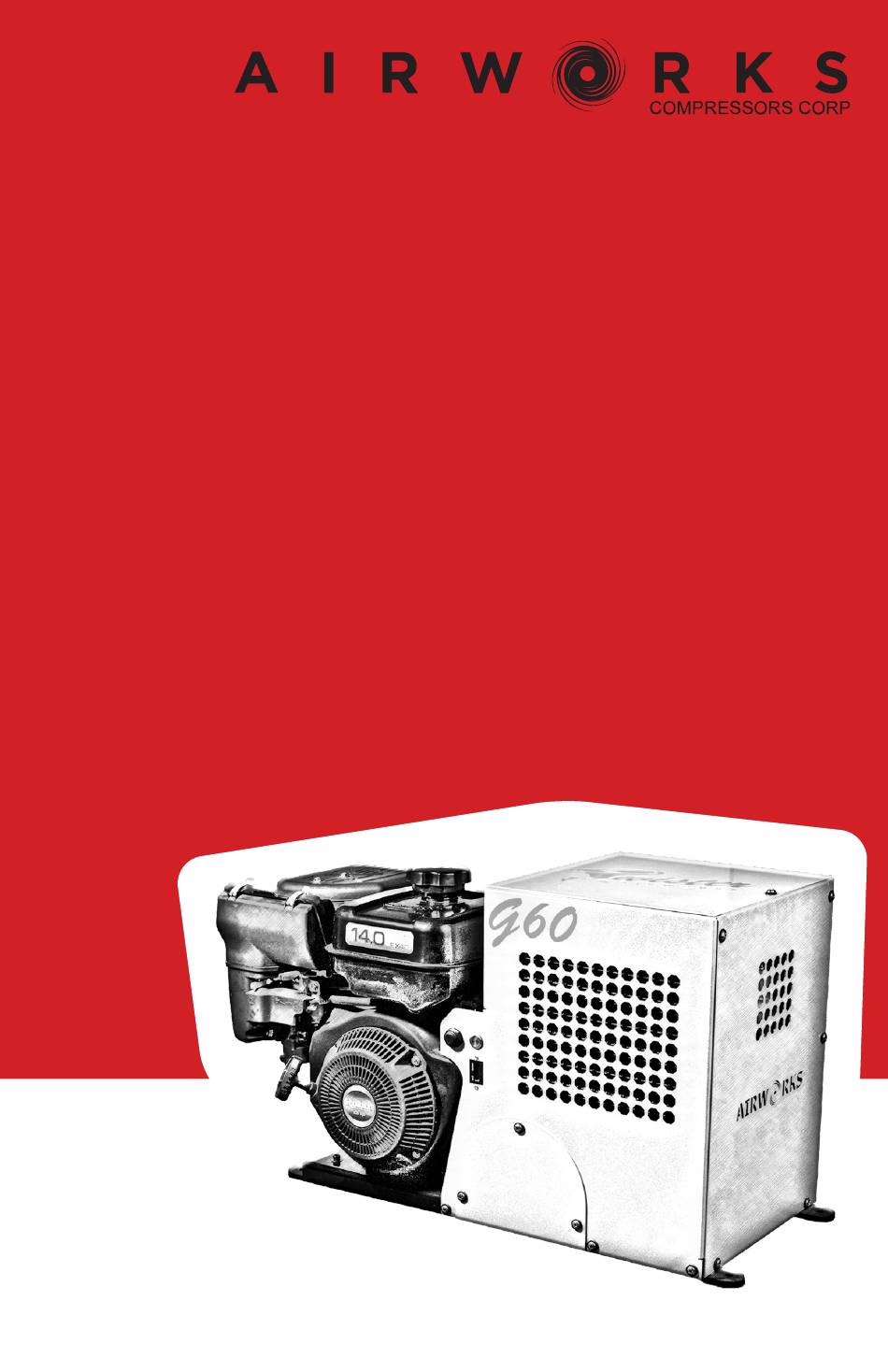

- Page 1 Operation Manual Twister G40/G60 Revised: 12/03/2024...
-
Page 2: Table Of Contents
At Airworks Compressors Corp, we built our company by listening to customers’ needs for air compressors that are efficient, cost-effective, and environmentally responsible. Since our founding in 2007, we’ve pioneered several world firsts, including the compact diesel-powered rotary screw air compressor and the propane-powered air compressor. -
Page 3: Unit Diagram
Air Output Your Twister G40/G60 is rated for 40 or 60 CFM, respectively, at up to 150 PSI. The maximum PSI can be adjusted between 135 and 150 PSI (see page 10). Air Quality We use flooded lobe rotary screw air ends to maximize reliability, which introduces trace amounts of oil into the air as a byproduct. -
Page 4: Service Log
Service Log Date Unit Hour Reading Service Type Next Service Due... -
Page 5: Service Notes
Contact Airworks Compressors Corp. Service Notes Browse our website: airworkscompressors.com Give us a call: 780-454-2263... -
Page 6: Safety Precautions
Safety Precautions Before Operating the Compressor Ensure you read and comprehend the operation manual and all related safety materials before operating the air compressor. The installer must ensure that the manual and all safety decals are delivered with the unit upon completion of product installation. -
Page 7: Preventing Accidents
Safety Precautions Refueling and Fire Safety Refueling Precautions Never refuel the unit while it is running or hot. Avoid sparks and flames when refueling. Only refuel in well-ventilated areas. Combustion Engine Keep flammable materials away from the unit’s engine and exhaust at all times while the unit is running. -
Page 8: Installation
Installation Preparation Trace the base size and mount hole locations onto cardboard to create a template. Use this template to drill holes for mounting the compressor in a suitable location. Exercise caution when drilling to avoid obstacles beneath the surface. Allow for proper fitting and hose/wire routing. -
Page 9: Startup/Shutdown Procedure
Startup/Shutdown Procedures Turning On the Unit 1) Turn on fuel petcock (#4 on the Unit Diagram) to enable to flow of fuel to the engine. 2) Apply choke (#3). 3) Ensure compressor button (#7) is turned off. 4) Turn key (#6) to the right to crank the engine. Release key when engine has started. -
Page 10: Maintenance Guide
Maintenance Guide Your Twister is a finely-tuned machine, and requires routine maintenance in order to provide you with decades of reliable use, and maintain its warranty. Please adhere to these service intervals to get the most use out of your Twister. Where Can I Service My Compressor? Our products can typically be serviced or repaired by any reputable small engine repair shop. -
Page 11: Adjusting The System
Every 500 Hours / Every 12 Months Perform 250-hour checks plus: • Change compressor coalescing filter. • Change spark plug. • Check radiator hoses and clamps. • Check air intake lines. • Replace the fuel filter element. • Check valve lash and ensure that it is set to 0.14mm. •... -
Page 12: Troubleshooting Guide
Troubleshooting Guide Compressor Does Not Produce Adequate Air Check and correct the following: • Ensure the compressor oil level is correct. • Verify the drive belt is intact and has adequate tension. • Confirm the unloader valve (#8 on the Parts Guide) is operational. •... - Page 13 Troubleshooting Guide Excessive Oil in the Air Produced Check and correct the following: • Verify the compressor oil level is correct. • Ensure the oil scavenging line is clear. This is a Teflon tube located between the compressor (#10) and the auxiliary cooler (#5). •...
-
Page 14: Parts Guide
Parts Guide... - Page 15 Parts Guide 1 - Coalescing Filter (ATC004) 2 - Minimum Pressure Valve (ATC026) 3 - 12v Control Solenoid (ATC027) 4 - Belt (ATB402) 5 - Auxiliary Cooler (ATB406) 6 - AC-DC Rectifier (ATB415) 7 - Throttle Control Wire (ATE404) 8 - 135-150 PSI Unloader Valve (ATC405) 9 - Pressure Switch N/C -10 PSI (13-344) 10 - G40/G60 Rotary Screw Air End (ATC001-C) 11 - Compressor Air Filter Housing (ATC002-02)
- Page 16 Airworks Compressors Corp. 14503 115th Avenue NW Edmonton, Alberta T5M 3B8 780.454.2263 airworkscompressors.com...
