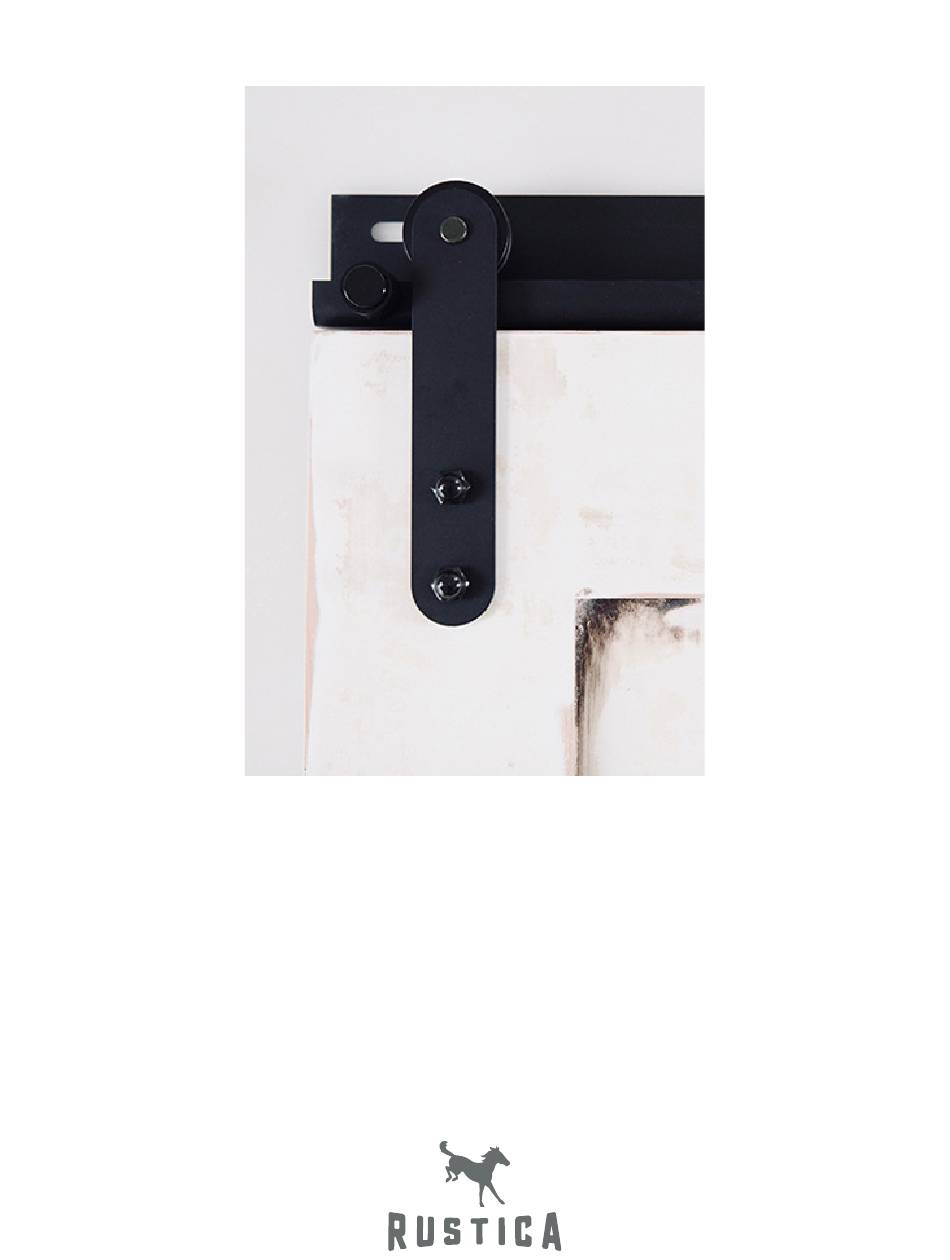

- Page 1 LEGACY LOW CLEARANCE SYSTEM ASSEMBLY INSTRUCTIONS...
-
Page 2: Recommended Tools
RECOMMENDED TOOLS Drill with 1/8”, 1/4” and Socket Wrench 7/32” Allen Wrench 3/8” Bits, and Phillips Bit with 9/16” Socket Pencil Level Tape Measure LOW CLEARANCE SYSTEM SPECIFICATIONS 2" 8" 4 " 2 " 4 " 2 " www.Rustica.com Version 1–9/2019... - Page 3 Door Guide Lag Screw Anti-jump Bracket Hex Nut Button Head Bolt Anti-jump Block (For use Round Adjustable Stop on bi-parting door systems) Phillips Screw Low Clearance Track DIT! (DO IT TOGETHER) WE RECOMMEND TWO PEOPLE FOR THIS BUILD www.Rustica.com Version 1–9/2019...
- Page 4 4 " should rest around 2” from the edge of the door. 2 " Mark the center of each installation hole with a pencil. Repeat steps 2-4 for the opposite end of the door. Set the hangers aside. www.Rustica.com Version 1–9/2019...
- Page 5 Drill all the way through the pilot holes using a drill with a 3/8” drill bit. Door Front Install the hangers to the front of the door using button head bolts, washers, and hex nuts (provided), using a 7/32” Allen wrench and 9/16” socket. www.Rustica.com Version 1–9/2019...
-
Page 6: First Things First
Mark an intersecting line inside each slotted hole wherever they work best for your wall (i.e. stud locations). Take the track down, remove double stick tape (if used) and set the track aside. www.Rustica.com Version 1–9/2019... - Page 7 Attach one end of the track to the wall with one lag screw, and one washer (provided) using a socket wrench with 9/16” socket. Do not tighten. Install remaining lag screws and washers (provided) using a 9/16” socket wrench. Tighten all lag screws. www.Rustica.com Version 1–9/2019...
- Page 8 Install the Door Guide using a Phillips screw (provided) and a drill with a phillips bit. Slide the door toward the open position until the other side of the Door Guide is exposed. Install the second Phillips screw (provided) using a drill with a phillips bit. www.Rustica.com Version 1–9/2019...
- Page 9 LOW CLEARANCE SYSTEM ASSEMBLY INSTRUCTIONS ADJUSTABLE STOP INSTALLATION Place the adjustable stop on your track. Position along the length of your track to stop door at the desired location. Tighten bolt with a 9/16” wrench/socket. www.Rustica.com Version 1–9/2019...
- Page 10 CONGRATULATIONS ON YOUR DECISION TO BRING HOME AN AMERICAN MADE PRODUCT OF THE HIGHEST QUALITY. WE HOPE YOUR LOW CLEARANCE SYSTEM BRINGS ART AND FUNCTION INTO YOUR LIFE. DESIGNED AND CRAFTED ENTIRELY IN THE U.S.A. DON’T BE A STRANGER. FOLLOW US ON SOCIAL MEDIA. support@rustica.com...
