Cocina a gas
Gas stove
1992/2 - 1993/2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1992/2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ARIETE 1992/2

Summary of Contents for ARIETE 1992/2

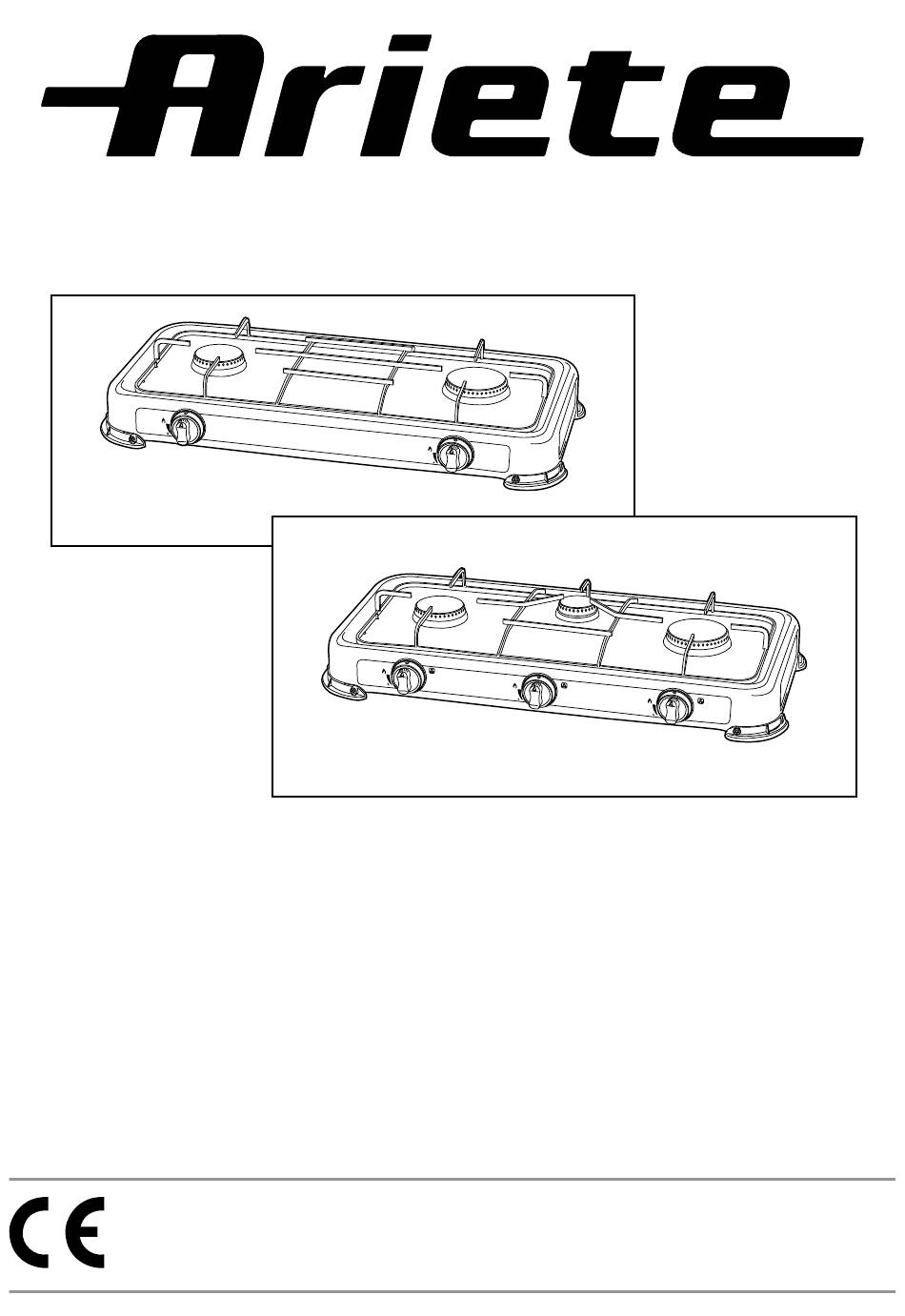

  • Page 1 Cocina a gas Gas stove 1992/2 - 1993/2...
  • Page 2 Fig. 1 - Mod. 1992/2 Fig. 1 - Mod. 1993/2...
  • Page 3 Mod. 1993/2 Mod. 1992/2 Fig. 2 Mod. 1992/2 Mod. 1993/2 Fig. 3...

  • Page 4: Advertencias Importantes

    ADVERTENCIAS IMPORTANTES LEER ESTAS INSTRUCCIONES ANTES DEL USO YA QUE CONTIENEN IMPORTANTES INFORMACIONES SOBRE LA SEGURIDAD, EL USO Y EL MANTENIMIENTO DEL APARATO. Este aparato, apto exclusivamente al aire libre, deberá destinarse solo a la función para la que ha sido expresamente concebido. Cualquier otro uso debe considerarse inapropiado y peligro- so.
  • Page 5 ridad de utilización. Verificar periódicamente el buen estado del aparato y de los componentes; en caso de duda, acudir a un centro de asistencia autorizado. No utilizar el aparato si no funciona correctamente o si muestra desperfectos; en caso de duda, acudir a personal calificado.

  • Page 6: Instalación

    DESCRIPCIÓN DEL APARATO (Fig. 1) Rejilla de soporte de acero Botones Tapa difusora del quemador Boquilla para conectar el tubo del gas Corona del quemador Cuerpo del aparato INSTALACIÓN Este aparato funciona con gas licuado y es necesaria una instalación que prevea la utilización de un tubo de goma flexible homologado de conformidad con las normativas vigentes.

  • Page 7: Características Técnicas

    NO USAR aparatos eléctricos si se sospecha de la presencia de fuga de gas. Para asistencia técnica, contactar con el vendedor, un centro de asistencia calificado o con el proveedor del gas. CARACTERÍSTICAS TÉCNICAS MODELO 1992/2 (dos fogones) 2.3 kW (168 g/h) CALOR TOTAL CATEGORÍA DE GAS 3B/P(30)

  • Page 8: Instrucciones Para El Uso

    INSTRUCCIONES PARA EL USO - Colocar el aparato sobre una superficie estable lejos de materiales inflamables. - Asegurarse de que los botones (E) estén colocados en “0”. - Coloque la tapa difusora del quemador (B) encima de la corona del quemador (C) y presione hasta el fondo;...

  • Page 9: Important Safeguards

    IMPORTANT SAFEGUARDS READ THESE INSTRUCTIONS BEFORE USE AS THEY CONTAIN IMPORTANT INFORMATION ABOUT SAFETY, USE AND MAINTENANCE OF THE APPLIANCE. This appliance is intended OUTDOORS USE ONLY and for the purpose for which it was expressly designed. Any other use would be improper and dangerous. The manufacturer cannot be held responsible for any damage deriving from improper, incorrect or unreasonable uses.

  • Page 10: Installation

    Install the appliance far from flammable material and at a distance of minimum 2 cm from any wall. Any shelf above the appliance must be at least 75 cm from the support surface. WARNING: the appliance parts reach very high temperatures. Keep children away from the hob! The supply hose is to be replaced at the indicated expiry date.
  • Page 11 at an authorized centre, to be sure it has been checked and filled properly. Always use a pressure regulator connected to the cylinder. Connect the hose to the rubber support of the regulator and to the one of the device with the fixing hose.

  • Page 12: Technical Features

    TECHNICAL FEATURES MODEL 1992/2 (two burners) 2.3 kW (168 g/h) TOTAL HEAT GAS CATEGORY 3B/P(30) GAS TYPES Butane (G30), Propane (G31) or their mixture GAS PRESSURE (28-30) mbar NOMINAL HEAT AND INJECTOR SIZE: LARGE BURNER (L) 1.3 kW (95 g/h) - 0.57 mm MEDIUM BURNER (M) 1.0 kW (73 g/h) - 0.52 mm...

  • Page 13: Cleaning And Maintenance

    SWITCHING A BURNER ON - Place the lighter flame near the burner to be switched on. - Rotate the knob of the corresponding command counter-clockwise, as shown in Fig. 3. WARNING: Make sure the switching on is immediate, otherwise, turn immediately the knob off by turning it clockwise to interrupt the gas supply and wait some minutes before trying again.
  • Page 14 800-809065 De’ Longhi Appliances Srl Divisione Commerciale Ariete Via San Quirico, 300 50013 Campi Bisenzio FI - Italy E-Mail: info@ariete.net Internet: www.ariete.net 637111...

This manual is also suitable for:

1993/2
