INSTALLATION GUIDE
•
Model: KF-91-IT-BK
•
Extra inner tray for KF-91-BK Serial ATA mobile rack
•
Aluminum cover tray for KF-91-BK mobile rack
•
Special shock absorber system
•
For standard 1" or 1.6" height, 3.5" H.D.D.
•
Support all brands of 3.5" Serial ATA H.D.D.
•
Suitable hard disk type 1.0" or 1.6" height 3.5" Serial ATA H.D.D.
•
Easy transport and secure valuable data
*KF-91-IT-BK is the inner tray for KF-91-BK SATA hot swap mobile rack, and only compatible with KF-91-BK.
KF-91-IT-BK Installation Instruction：
1.

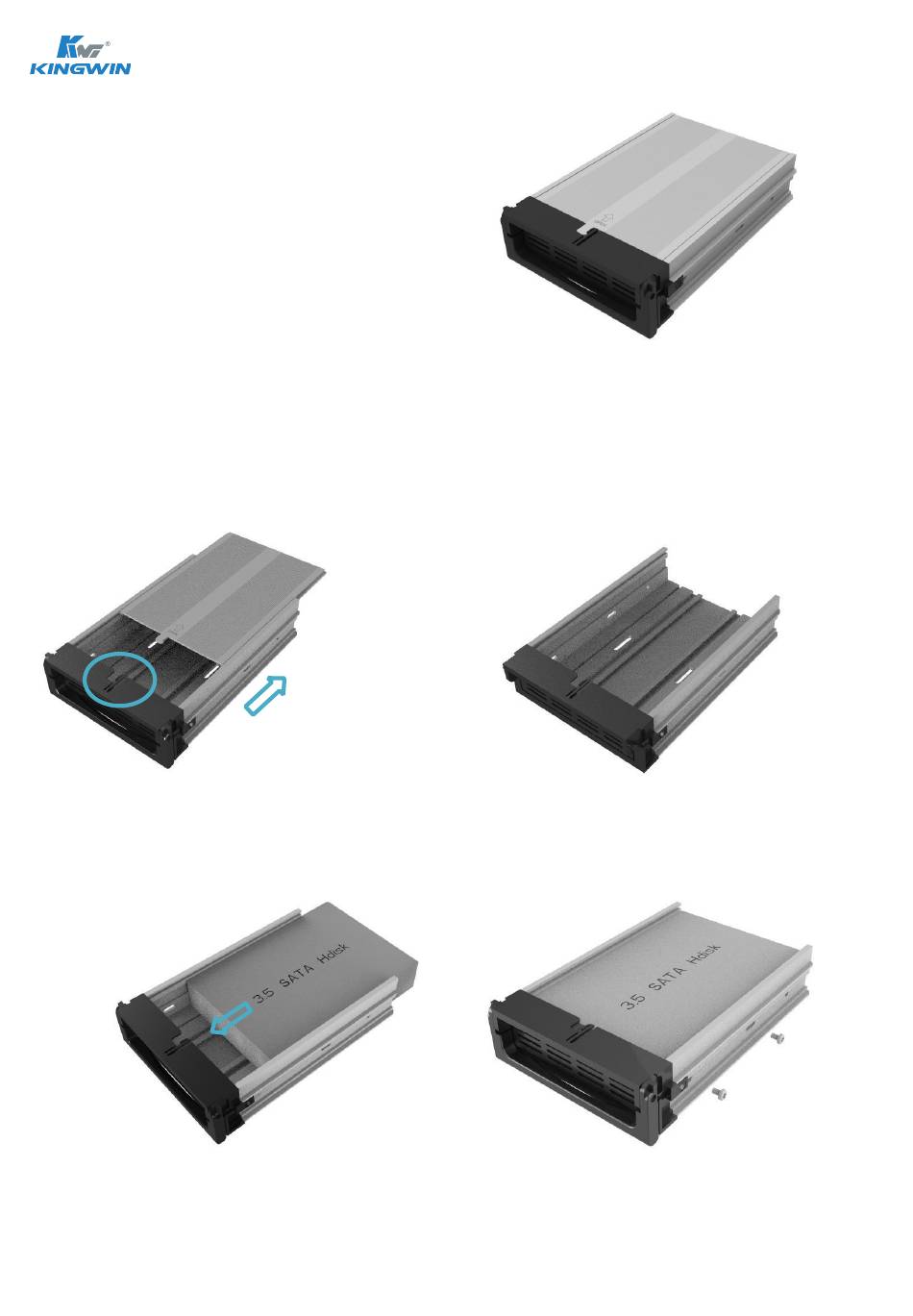

P ush the locking tab toward right . (Picture 1)
2.
S lide out top aluminum cover. ( Picture 2)
(Picture 1)
3. Install a 3.5" SATA hard drive into the tray, match screw holes with side of tray (Picture 3), open the included
screw pack and secure hard drive onto the tray with screws. (Picture 4)
（Picture 3）
(Picture 2)
（Picture 4）
