Summary of Contents for cubiio PL-01

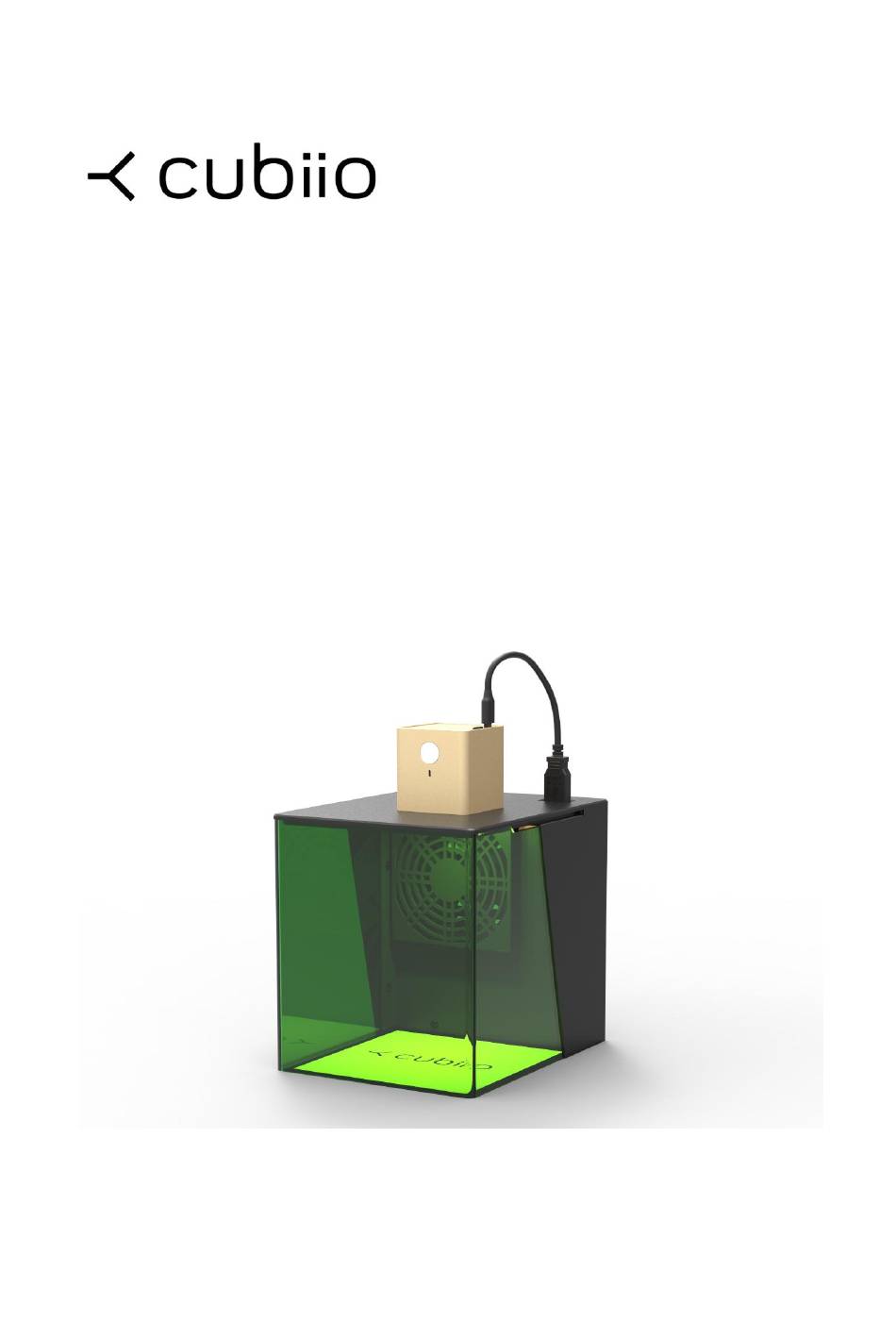

- Page 1 PL-01 User’s Manual...
-
Page 2: Table Of Contents
Cubiio Specification .............. 11 Getting Started ................12 Product Overview ..............12 Application ................13 Setup ................... 13 Assembly ..............13 Turning cubiio on and off ..........14 Ready to work ............... 14 Online Support ................15 Copyright Information ..............16... -
Page 3: Warnings And Cautionary Messages
Warnings and Cautionary Messages Before using cubiio, you are fully aware that the operation of a laser, such as cubiio, is a hazardous activity. Also, you acknowledge that you have attained the legal age of majority according to the laws of your respective Country. - Page 4 Caution: Read all of the Important Safety Instructions and keep them for later use. Caution: Follow all warnings and instructions on the manual. Caution: This product does not contain any serviceable user parts.
-
Page 5: Safety And Regulatory Information
Safety and Regulatory Information Compliances and Safety Statements FCC ID: 2AN3XPL-011025 FCC Warning Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 6 Taiwan NCC Warning Statement Administrative Regulations on Low Power Radio Waves Radiated Devices warning: Article 12 Without permission granted by the NCC, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to an approved low power radio-frequency devices.
-
Page 7: Important Safety Instructions
Important Safety Instructions Wear appropriate attire and personal protective equipment at all times while operating the cubiio. This includes, but is not limited to, protective eyewear, closed toed shoes, and clothing that adequately covers your extremities. Always be alert when the laser is powered on. -
Page 8: Renewal Policy
Disclaimer You (the consumer), and by extension your successors and assign in interest, agree to release and hold harmless cubiio, its owners, directors, employees, agents, distributors, retailers, contractors and affiliates from any and all liability loss, claims (including, but not... -
Page 9: Before Starting
Thank you for purchasing cubiio, the most compact laser engraver. This manual provides information regarding functions, performance and operating methods that are required for using the equipment. Before you turn on the cubiio, please read this manual thoroughly to deepen your understanding of the product. Checking Contents... -
Page 10: Product Features
Product Features Cubiio contains several safety measures to provide fully protection for users: Eye Protection: Goggles are included in every cubiio package. Always wear goggles while cubiio is working. Do not look at the laser radiation even with the goggles. -
Page 11: Cubiio Specification
Cubiio Specification Laser Source Blue Laser, 450 nm Max. Laser Output <800 mW Working Area 100x100 mm Working Distance 155 mm Dimensions 140x181x220 mm Weight 1.3 kg Power Input AC 100-240V , 50-60Hz Power Output DC 5V, 2A via USB Type A... -
Page 12: Getting Started
Getting Started Product Overview... -
Page 13: Application
Application Download cubiio app by QR codes on the official website or search “cubiio” in Google Play or Apple store. Follow the instruction to install cubiio app step by step and read Quick Start provided in the app carefully to ensure correct use of the product. -
Page 14: Turning Cubiio On And Off
Turning cubiio on and off Turn on the device 1. Turn on the power switch. 2. Touch the power key once and check the notification light (amber) on. Turn off the device 1. Touch and hold down the power key until the notification light off. -
Page 15: Online Support
5. Run cubiio app. Search and select your device. 6. Read Quick Start thoroughly before actual processing to ensure correct use of all the functions inside cubiio app. Online Support We provide online support worldwide. If you have any further question, please send us an email at: support@muherz.com... -
Page 16: Copyright Information
MUHERZ LIMITED, All rights reserved. cubiio is a trademark of MUHERZ LIMITED. All other trademarks are the property of their respective owners. Information in this document is subject to change without notice and does not represent a commitment on the part of MUHERZ LIMITED.
