Summary of Contents for WhisperPower OctoControl Pro

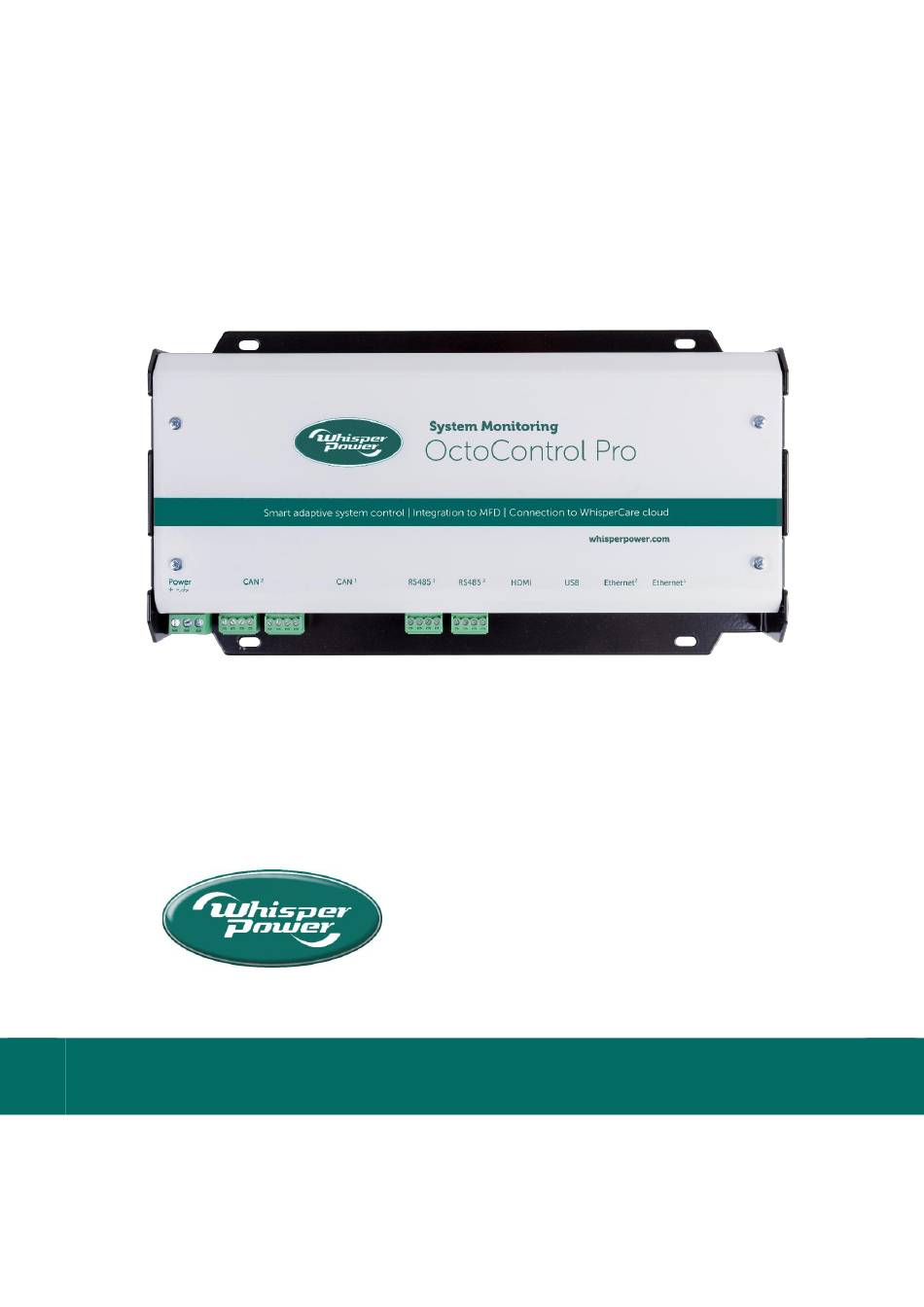

- Page 1 User/Installation Manual WhisperCare 2.0 OctoControl Pro OctoControl Pro | OctoControl Pro 4G | We connect, we manage, we control whisperpower.com...
-
Page 2: Table Of Contents
2 OctoControl Pro | OctoControl Pro 4G Table of Contents Introduction 1.1. Use of this manual / applicability of this manual 1.2. General features 1.3. Clarification of notation 1.4. Glossary of terms 1.5. Applicability of this manual 1.6. Safety, liability, and warranty specifications 1.6.1. - Page 3 OctoControl Pro | OctoControl Pro 4G 3 3.6. RS485 3.6.1. DDC bus 3.7. OctoView Touch Monitor 3.8. Multi-functional display 3.8.1. Raymarine 3.8.2. Garmin 3.8.3. Simrad 3.8.4. B&G 3.9. WhisperCare 2.0 Cloud connection 3.9.1. Utilizing the WhisperCare 2.0 4G router 3.9.2.
-
Page 4: Introduction
OctoControl Pro and OctoControl Pro 4G manufactured and marketed by WhisperPower. It is therefore essential that every person who works on or with the OctoControl Pro or OctoControl Pro 4G should be familiar with the contents of this manual, and that he/she should carefully follow the instructions contained herein. -
Page 5: Applicability Of This Manual
WhisperPower does not accept liability for damage due to use of the OctoControl Pro or OctoControl Pro 4G, possible errors in the manuals and the results thereof. -
Page 6: Identification
6 OctoControl Pro | OctoControl Pro 4G 1.6.4. Identification The identification label is located at the back of the OctoControl Pro or OctoControl Pro 4G. Important technical information required for service, maintenance and secondary delivery of parts can be derived from the identification label. -
Page 7: General Operation
General operation The content on the screens is automatically generated based on the equipment connected and configured on the OctoControl Pro. The images shown in this manual may differ from the actual content on your screen. 2.1. System overview modes Two modes can be used to display all the information of the system and devices. -
Page 8: Screen Content
8 OctoControl Pro | OctoControl Pro 4G 2.2. Screen content 2.2.1. Lock screen System status icons are always shown in top left corner. Shows if shore/grid input is present Shows if generator is standby/running Shows if solar input is present... -
Page 9: Energy System Overview Screen
OctoControl Pro | OctoControl Pro 4G 9 2.2.2. Energy system overview screen Pressing the WhisperPower logo returns to this screen Switch between light and dark Change mode of operation System widgets • AC Input – Shows summary of all shore/grid information. -
Page 10: Device Widget Overview Screen
10 OctoControl Pro | OctoControl Pro 4G 2.2.3. Device widget overview screen Choose between device widget overview or energy system overview. Two different overviews with just one setting. Change the settings See the list of devices Each device is shown in a widget. The widget displays the status of the... -
Page 11: Device Information Screen
OctoControl Pro | OctoControl Pro 4G 11 2.2.4. Device information screen Basic controls of the device, for example starting and stopping the generator. Overview, Monitor and Control tab to provide detailed information and control. Detailed monitoring data... -
Page 12: Navigation Between Screens
12 OctoControl Pro | OctoControl Pro 4G 2.3. Navigation between screens Lock screen Press lock icon to lock Touch anywhere on the screen. screen to unlock. System overview screen Press WhisperPower Press any sub system logo to go back. widget. -
Page 13: Installation
Install the OctoControl Pro in a well-ventilated room protected against rain, snow, spray, vapour, bilge, moisture, and dust. Never use the OctoControl Pro or OctoControl Pro 4G in a location where there is a danger of gas or dust explosions. Ensure that there are no obstructions to the airflow through the ventilation openings. -
Page 14: Connection Descriptions
14 OctoControl Pro | OctoControl Pro 4G 3.2. Connection descriptions Power – 3 pin pluggable screw terminal 1. V+ 2. V- 3. PE CAN² – 2x 4 pin pluggable screw terminal 1. CAN 2. CAN high 3. CAN 4. CAN CAN¹... - Page 15 OctoControl Pro | OctoControl Pro 4G 15 RS485 – 4 pin pluggable screw terminal 1. NC 2. RS485 3. RS485 4. RS485 RS485 – 4 pin pluggable screw terminal 1. NC 2. RS485 3. RS485 4. RS485 HDMI Used for OctoView Touch Monitor USB –...
-
Page 16: Connector Adapters
While this is suitable for connecting bare wires, to connect a communication cable an adapter may be required. The following adapters are available to be used with the OctoControl Pro: OctoControl CAN to WhisperConnect adapter... -
Page 17: Power Supply
It is recommended to use a navigation battery bank as the power source for the OctoControl Pro. Using a correct size and length of battery cable (not provided), connect the power supply. Install the fuses in the positive cables. -
Page 18: Wpc Bus
Every WhisperConnect device is equipped with two data ports. All devices are daisy chained together using UTP patch cables. It is recommended to use WhisperConnect cables supplied by WhisperPower. The resulting network is one chain of connected devices with an open WhisperConnect port at each end. -
Page 19: Lithium Power Plus
It collects and process all data from each individual battery and presents this information on the CAN bus to be read by the OctoControl Pro. A Lithium Power Plus to WhisperConnect splitter must be used to connect to a WhisperConnect network. -
Page 20: Rs485
20 OctoControl Pro | OctoControl Pro 4G 3.6. RS485 3.6.1. DDC bus... - Page 21 Connect the DDC bus from the generator to either RS485 or RS485 . Only one generator can be connected per RS485 communication port of the OctoControl Pro. It is recommended to always install the DDC remote panel in the system.
-
Page 22: Octoview Touch Monitor
Connect the USB cable and HDMI cable between the OctoView Touch Monitor and OctoControl Pro. Provide power to the OctoView Touch Monitor. The USB and HDMI port on the OctoControl Pro are not designed to provide power to a connected monitor. Both cables are necessary for correct functioning OctoView Touch Monitor. -
Page 23: Multi-Functional Display
OctoControl Pro. Follow the instructions of the Garmin multi- functional display. The integration process is automated. The Garmin multi-functional display will automatically recognize the OctoControl Pro and the WhisperCare icon will popup automatically. Press the WhisperCare icon to open the WhisperCare environment. -
Page 24: Simrad
The integration process is automated. The Simrad multi-functional display will automatically recognize the OctoControl Pro and the WhisperCare icon will popup automatically. Press the WhisperCare icon to open the WhisperCare environment. 3.8.4. B&G Connect an ethernet patch cable with a B&G ethernet adapter between the B&G multi-functional... -
Page 25: Whispercare 2.0 Cloud Connection
3.9.2. Using an existing internet connection Connecting the OctoControl Pro to the internet allows the use of the WhisperCare 2.0 cloud portal. An energy system can be monitored and controlled using this portal. Furthermore, automatic notifications can be sent in case the energy system needs attention. -
Page 26: Update Firmware
The WhisperCare software files can be found on the dealer portal. Dealer have access to the portal, customers can contact their dealer to request the latest software available for the OctoControl Pro. The files need to be copied on a USB Flash drive in the main/root folder. The picture below shows an example how the files should look like on a USB flash drive. -
Page 27: Updating The Octocontrol Pro
With the USB Flash drive prepared the update processes can be started. It is important you can access the OctoControl Pro so you can insert an USB Flash drive. The OctoControl Pro must be powered on and power may not be removed during the update. - Page 28 Press “Update from USB” button to start the update procedure. The unit will start scanning for USB devices. 3. Remove the OctoView Touch Monitor USB cable from the OctoControl Pro. Insert the USB device with the WhisperCare update files. This needs to be completed within 60 seconds after...
- Page 29 5. When the home screen is shown. You have to wait an additional 5 minutes in order for the OctoControl Pro to fully complete the update in the background. 6. Remove the USB flash drive. Reinstall the OctoView Touch Monitor USB cable.
- Page 30 30 OctoControl Pro | OctoControl Pro 4G 7. You can check if the update was successful by checking if the versions changed on the Firmware tab...
-
Page 31: Update Procedure With A Mfd
OctoControl Pro | OctoControl Pro 4G 31 4.1.5. Update procedure with a MFD 1. Insert the USB device with the WhisperCare update files. 2. On the MFD, open the WhisperCare app, go to “Settings”, select the “Firmware” tab. Press “Update from USB”. - Page 32 32 OctoControl Pro | OctoControl Pro 4G 3. A popup screen appears describing the update procedure. Make sure to read the procedure properly. Press “Update from USB” button to start the update procedure. The unit will start scanning for USB devices.
- Page 33 OctoControl Pro | OctoControl Pro 4G 33 6. Remove the USB flash drive containing the WhisperCare update files. 7. You can check if the update was successful by checking if the versions changed on the Firmware tab...
-
Page 34: Update Failed
A factory reset will not reset the firmware version. All installed firmware will stay on the same version. WARNING! Performing a Factory reset will remove any persistent data on the OctoControl Pro. After performing the reset, the OctoControl Pro needs to be configured before being useful again. -
Page 35: Troubleshooting
WhisperConnect tool 5.2. Checking software version In case of a fault, your WhisperPower representative may need the software version to provide the best support. The software version can be found in the settings menu. From there select the firmware tab. Please note all software versions listed on this page. -
Page 36: Technical Specifications
36 OctoControl Pro | OctoControl Pro 4G Technical specifications 6.1. Electrical specifications OctoControl Pro OctoControl Pro 4G Article number 60208025 60208030 Electrical Specifications Input voltage 8-32 V DC 8-32 V DC Power consumption < 500 mA @ 12 V DC <... -
Page 37: Connections
OctoControl Pro | OctoControl Pro 4G 37 6.3. Connections OctoControl Pro OctoControl Pro 4G Article number 60208025 60208030 Connections Power 3 pin pluggable screw 3 pin pluggable screw connector connector CAN #1 2x RJ45 (pinout following 2x RJ45 (pinout following... -
Page 38: Regulations And Directives
6.6. EU declaration of conformity Manufacturer: WhisperPower BV Address: Kelvinlaan 82, 9207 JB Drachten, The Netherlands Hereby WhisperPower declares under our responsibility that product: OctoControl Pro is in conformity with the following provisions of the EC: • 2004/108/EC (EMC Directive), the following harmonized standards having been applied: •... - Page 39 OctoControl Pro | OctoControl Pro 4G 39...
- Page 40 WhisperPower BV Kelvinlaan 82, 9207 JB Drachten The Netherlands www.whisperpower.com sales@whisperpower.com...
