Craftright 6 TIER SHELVING UNIT Assembly Instructions

WARNING
Children have died from
furniture tipover.
ALWAYS secure this furniture
•
with an anchor device.
NEVER allow children to stand,
•
climb or hang on drawers,
doors, or shelves.
NEVER open more than one
•
drawer at a time.
Place heavy items down low.
•
NEVER put a TV
on this furniture

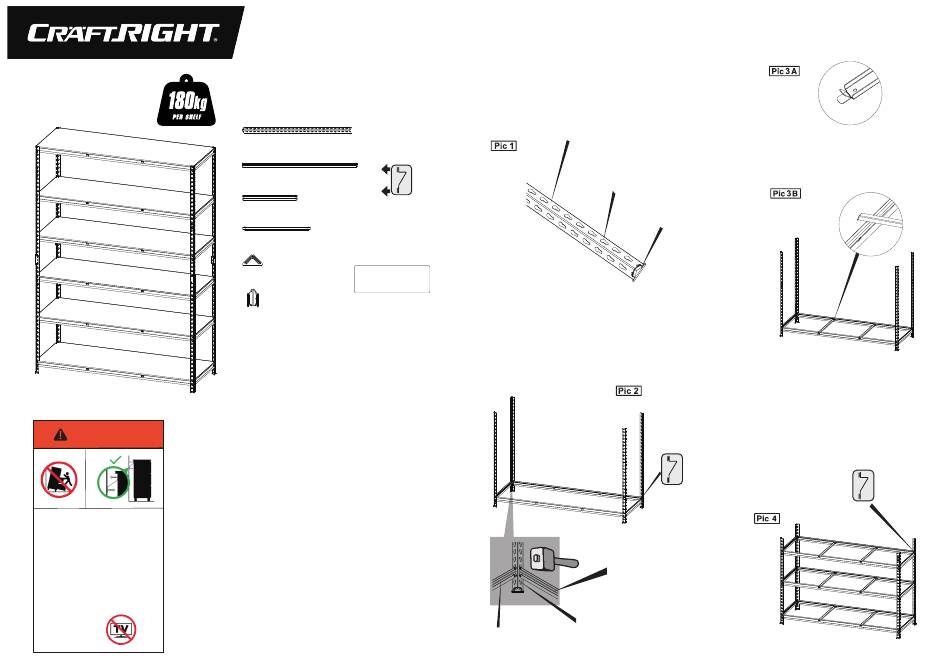

6 TIER SHELVING UNIT
List of Parts
8 x Uprights
End Profile View
12 x Long Shelf Supports
12 x Short Shelf Supports
12 x Middle Cross Bars
8 x Plastic End Caps
4 x Upright Connector Braces 6 x MDF Shelves
PLEASE NOTE:
Tip-over prevention fixing devices included
(refer to last page for installation).
T
ools Required
The only tool you require is a rubber mallet.
WARNING:
· Handle cut metal edges carefully.
· We recommend wearing gloves whilst assembling
this unit.
. Please confirm that you have all the parts listed.
· Assemble the unit on a solid, level surface. Avoid carpet.
· You will need the assistance of a second person
during assembly.
· This unit should be fixed to the wall for added safety
and support.
· Please note when moving shelving unit lift using the
bottom leg uprights.
· Ensure even weight distribution when loading items on the
shelves.
· Load items on shelves with care, avoiding heavy or forceful
impacts.
· Regularly inspect the shelving unit. Discontinue use at any
sign of damage or wear.
Assembly Instructions
1. Attach plastic end caps onto the bottom of the uprights.
NOTE: Ensure keyholes are the correct way up. (Pic 1).
KEYHOLE
UPRIGHT
KEYHOLES
TO BE
THIS WAY UP
PLASTIC
END
CAPS
2. Fit 2 short shelf supports and 2 long shelf supports
(note end profile) to the bottom holes (for maximum
strength) of 4 keyhole uprights by slotting the keylock
pins in the supports into the keyholes in the uprights
and tapping firmly with a rubber mallet to seat in place.
(Pic 2).
SHELF SUPPORT
END PROFILE
LONG
SHELF
SUPPORT
FIT TO
BOTTOM HOLES
SHORT
SHELF
SUPPORT
3. Bend the both ends of the middle cross bars firstly.
(Pic 3A).
Insert the middle cross bars onto the long shelf supports.
(Pic 3B).
4. Fit long and short shelf supports where you want the
2nd & 3rd shelf to be positioned. We recommend leaving
a space down from the top of the uprights as this will
form the usable space of the 4th shelf (from the top).
(Pic 4).
SHELF SUPPORTS SHELF SUPPORT
FOR 2ND & 3RD END PROFILE
SHELF
