Summary of Contents for TBB power PICO-2

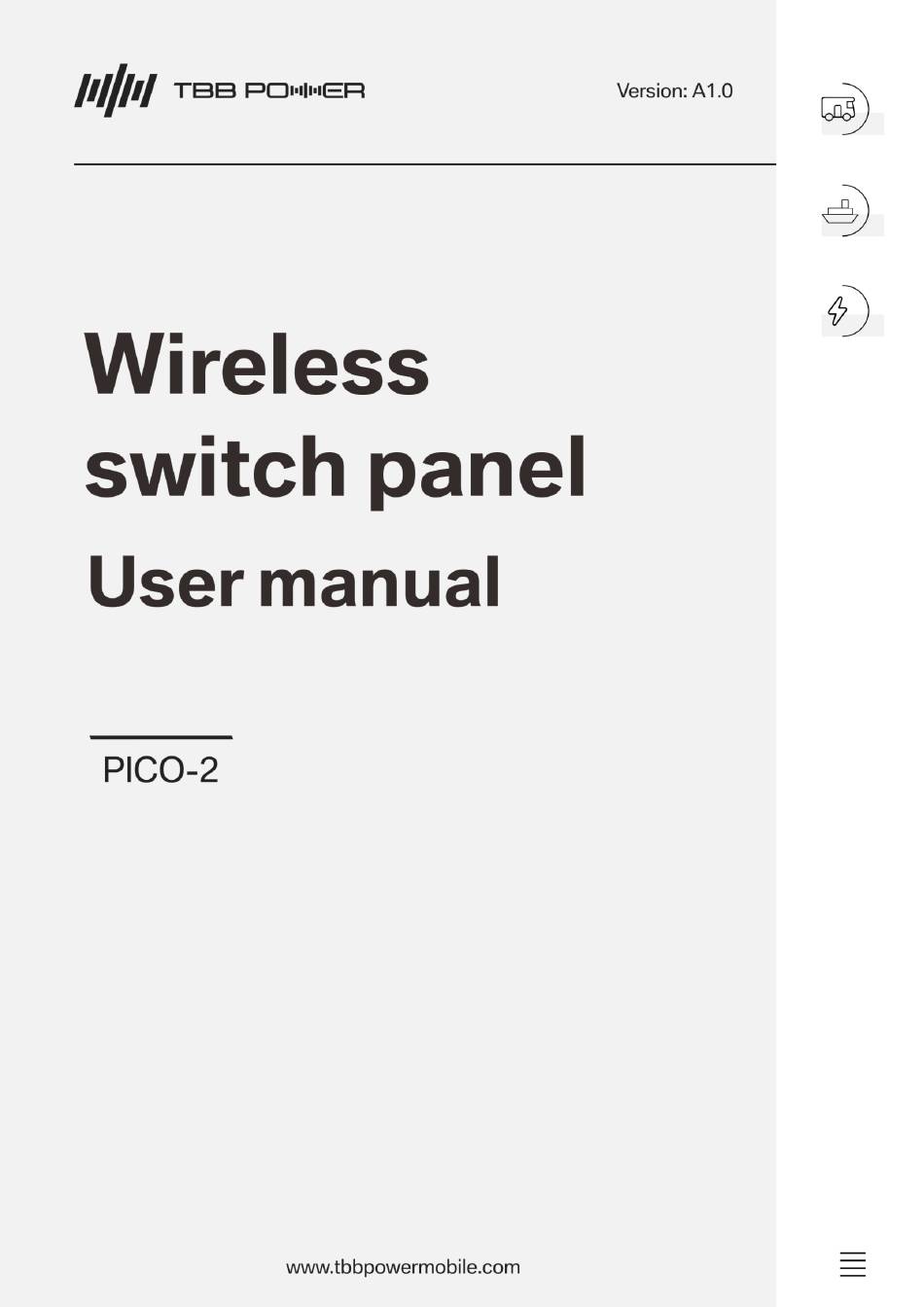

- Page 1 User manual of wireless switch panel PICO-2...
- Page 2 User manual of wireless switch panel PICO-2 Thanks for choosing our products and this manual is suitable for wireless switch panel PICO-2. This manual contains important safety and operation instructions. Read it before any operation/installation and keep it well for future reference.
- Page 3 User manual of wireless switch panel PICO-2 Context 1. General Safety Instruction ......................1 1.1 Safety instruction......................1 1.2 General Precaution ....................... 1 n ........................2 n ....................2 s .......................... 2 n ................2 n ............................3 x ........................3 n ........................
- Page 4 User manual of wireless switch panel PICO-2 ➢ Please read this manual and remark, sticker on product before installation or operation ➢ Please abide by required electrical safety procedure and requirement to prevent any damage or injury. Safety instruction in this manual is not equal to these safety procedure and requirement ➢...
- Page 5 User manual of wireless switch panel PICO-2 TBB’ wireless switch panel PICO-2 comes with compact design and powered by cell battery. It communicates with other device via Radio Frequency and its frequency is 433MHz. It will enter into zero consumption mode when no operation to save power. It’s equipped with 2 dip switches for identification purpose when there are multiple units in one system.
- Page 6 ➢ Keep this user manual properly for future reference Separate the PICO-2’s frame and PICO-2 before installation. Fix the frame onto a flat surface by screws, and then install PICO-2 back to the frame Remarks: Please don’t revere polarity of cell battery when put them into PICO-2...
- Page 7 User manual of wireless switch panel PICO-2 Parameter Remarks Rated current 10mA Communication Radio Frequency 433MHz 工-40℃~65℃ Working temperature Rated voltage Certificate...
- Page 8 User manual of wireless switch panel PICO-2...
