enbrighten BrightLink Manual

BrightLink™
READ IT OR WATCH IT
Motion-Activated
Switch
Thank you for purchasing the
BrightLink™ Motion-Activated Switch.
Please note that this product is
intended for use ONLY with lighting
fixtures that are specifically compatible
with the BrightLink™ linking system. Read instructions or watch easy-to-follow video.
Scan QR code or visit http://bit.ly/2KlhyGu
SAVE THESE INSTRUCTIONS FOR POSSIBLE FUTURE USE.
IMPORTANT SAFETY INSTRUCTIONS
Read entire installation procedure before you begin.
Do not alter the connectors.
Electrical Ratings: Motion-Sensing Module
Line Voltage 120V
Maximum Current 0.4A
Maximum Wattage 50W
DO NOT exceed maximum electrical ratings listed above. To make sure
your installation will not exceed ratings, add the current (A) or wattage
(W) rating for all light fixtures that will be connected to the switch. The
total sum of the current or wattage for all connected light fixtures cannot
exceed the maximum listed above for the type of module being installed.
INSTALLATION INSTRUCTIONS FOR MOTION-ACTIVATED SWITCH
The Motion-Activated Switch is intended for use with the BrightLink™ linking
system to allow you to control power to a connected series of compatible
lighting fixtures. The entire connected series of lights can be turned ON/OFF
with a single module instead of turning ON/OFF each individual light fixture.
1) DO NOT ATTEMPT TO INSTALL SWITCH WHILE PLUGGED
IN OR WITH PLUGGED-IN LIGHTING FIXTURES.
2) If installing the switch within a previously installed light fixture
installation using the BrightLink™ linking system, unplug the power
supply cord from the 120VAC 60Hz outlet and disconnect the 3-pin
connector from the first LED light fixture.
3) Carefully plan your installation prior to mounting the switch.
See Figure 1 for layout of components and all electrical connections.
Make sure that the 5ft. power supply cord will reach the nearest
electrical outlet and the switch location, and that the
linking cord will reach the first LED light fixture.
ELECTRICAL CORD CAN BE
ROUTED AROUND CORNERS TO
SUIT THE INSTALLATION
2 Pin 3 Pin
2 Pin
LED Light
Fixture
3 Pin
4) Select a suitable dry mounting location (for
use indoors only). Make sure mounting
surface is capable of supporting the switch.
5) Place the switch in the desired location and
clearly mark the locations for the two
mounting holes. See Figure 2. Make sure
the 2-pin connector is facing the direction
of the first light fixture and the 3-pin
connector is facing the direction of the
closest electrical outlet.
6) Pre-drill holes in the mounting surface with a 1/16" (1.5mm) drill bit.
7) Place the provided 5/8" wood screws in the pre-drilled mounting holes
and drive the screws into the mounting surface until approximately 1/16"
(1.5mm) of space remains under the screw head. Use only a #1 Phillips
head manual screwdriver to avoid stripping screws. CAUTION: DO NOT
USE POWER TOOLS TO SECURE SCREWS, AS THERE IS A RISK OF
STRIPPING THE SCREWS.
8) Secure the switch to mounting surface via keyholes. See Figure 3
and Figure 4. If necessary, tighten screws to secure switch.
9) Connect the linking cord (provided with compatible light fixture).
Insert the 2-pin connector of the linking cord into the 2-pin connector
on the switch. Insert the 3-pin connector of the linking cord into
the 3-pin connector of the first light fixture.
10) Insert the 3-pin connector of the power supply cord into
the 3-pin connector on the switch.
11) Plug the power supply cord plug into a 120VAC 60Hz outlet.
12) Ensure the power switch to all individually connected light fixtures
is turned ON.
13) To turn ON: Move a hand or other object in any direction within 2"-3"
past the motion sensor on the switch. See Figure 5A.
14) To turn OFF: Move a hand or other object in any direction past the
motion sensor a second time. See Figure 5B.

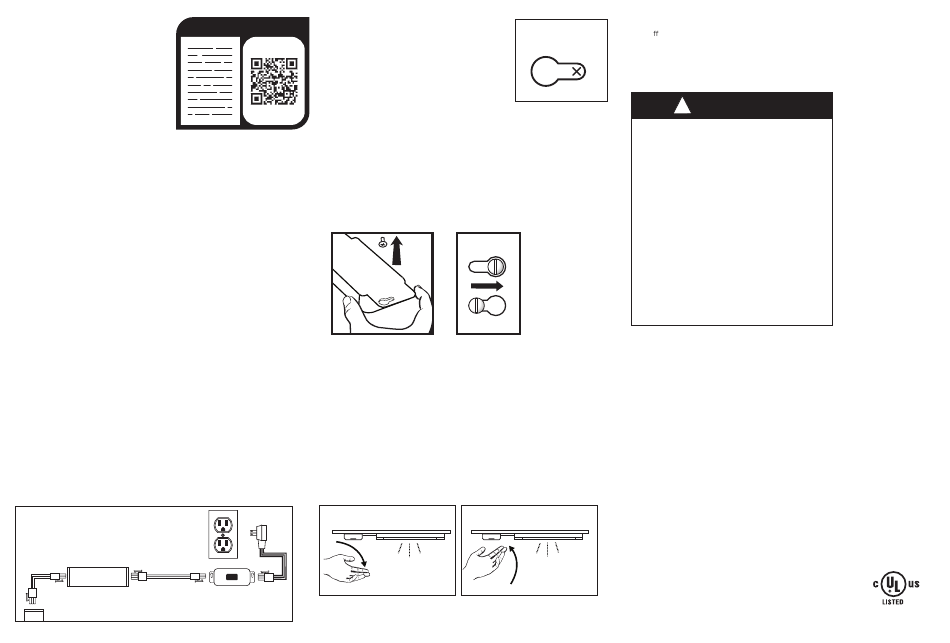

Figure 1
3 Pin
BrightLink™
Motion-Activated
Switch
Figure 2
1/16" (1.5mm)
from the end
Figure 3 Figure 4
Insert
Slide
Figure 5A Figure 5B
MOTION-ACTIVATED SWITCH TROUBLESHOOOTING:
* Detection range seems to vary. The detection range of the motion sensor
can di er based upon a variety of factors, including the tone of the user's
skin, the amount of light in the room and proximity of other objects.
* Light stays ON or stays OFF: This light should be mounted 18" above a
countertop with no objects directly beneath it. Objects directly under the
sensor can impede its ability to function properly.
WARNING
!
RISK OF ELECTRICK SHOCK
- DO NOT USE IN WET LOCATIONS.
- USE INDOORS ONLY.
- USE ONLY INSULATED STAPLES OR PLASTIC TIES TO
SECURE THE CORDS.
- ROUTE AND SECURE THE CORDS SO THAT THEY WILL
NOT BE PINCHED OR DAMAGED.
- NO SERVICEABLE PARTS
RISK OF FIRE
- DO NOT EXCEED ELECTRICAL RATINGS
- USE ONLY WITH BRIGHTLINK-COMPATIBLE LIGHTING
FIXTURES.
- NOT INTENDED FOR USE ABOVE STOVES, COOK TOPS,
SINKS OR OTHER HEAT PRODUCING APPLIANCES, SUCH AS
COFFEE MAKERS, TOASTERS OR TOASTER OVENS.
- NOT INTENDED FOR RECESSED INSTALLATION IN CEILINGS
OR SOFFITS.
- DO NOT CONCEAL POWER SUPPLY CORD OR LINKING
CORDS INSIDE A WALL, CEILING, SOFFIT, KITCHEN CABINET
OR SIMILAR PERMANENT STRUCTURE.
- DO NOT RUN POWER SUPPLY CORD OR LINKING CORDS
THROUGH HOLES IN WALLS, CEILINGS OR FLOORS.
DO NOT USE WITH A DIMMER OR DIMMING CIRCUIT.
MADE IN CHINA / HECHO EN CHINA
Distributed by Jasco Products Company LLC,
10 E. Memorial Rd., Oklahoma City, OK 73114.
This Jasco product comes with a limited-lifetime warranty.
Visit www.byjasco.com for warranty details.
Questions? Contact our U.S.-based Consumer Care
at 1-800-654-8483 between 7AM—8PM CST.
45021 v1 6/25
