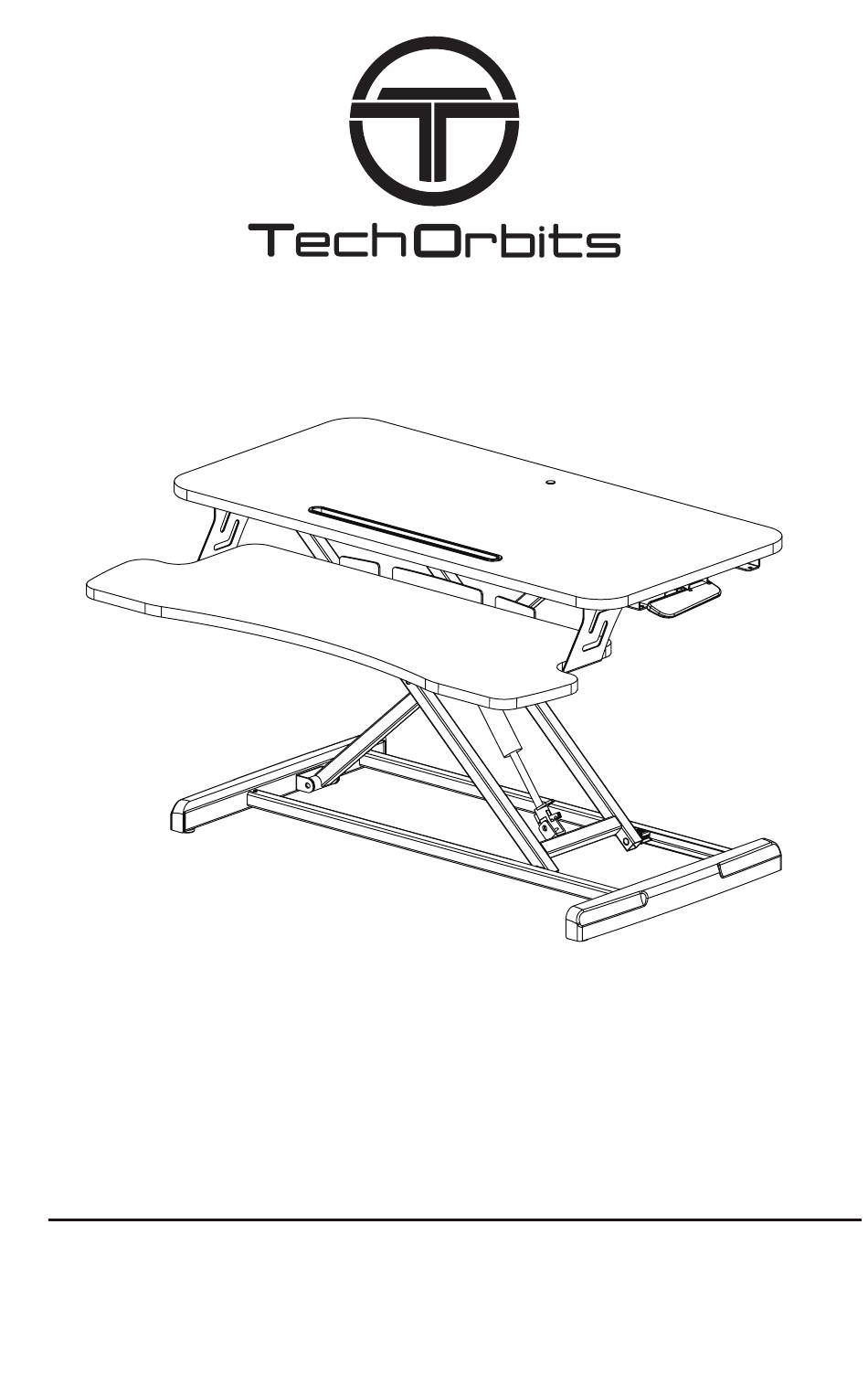

- Page 1 Desktop Converter Instruction Manual SKU: OF-S06-1-BL...
- Page 2 POWER CABLES HAVE ADEQUATE LENGTH TO ACCOMMODATE THE CHOSEN HEIGHT OF YOUR DESK RISER. Need Help? We’re Here For You US-Based Customer Support from Trained Professionals Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Give Us a Call help@techorbits.com 309-278-5303 ext. 1...
-
Page 3: Package Contents
Package Contents A (x1) B (x1) C (x1) Desk Left Bracket Right Bracket D (x1) E (x2) F (x2) G (x1) Keyboard Cable Keyboard Stop Tray Included Hardware S-A (x9) S-B (x6) M5x12mm Flathead M5x12mm Roundhead Screw Screw Tools Needed: Weight Capacity: 28.6lbs 5lbs... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Carefully remove the Desk (A) from the packaging. TEAM LIFT Place the Desk (A) upside down on a protective surface and use a scissors to cut the shipping ties. DO NOT press the handle until the desk is flipped upright. - Page 5 STEP 2 Flip the Desk (A) upright. TEAM LIFT Pull up on the Lever to raise the Desk (A) to its highest position. Lever...
- Page 6 STEP 3 3.1 Attach the Keyboard Stop (G) to the bottom of Keyboard Tray (D) using M5x12mm Flathead Screws (S-A) and a Phillips screwdriver. 3.2 Attach the Left Bracket (B) and the Right Bracket (C) to the bottom of Keyboard Tray (D) using M5x12mm Flathead Screws (S-A) ensuring the Brackets are extending outwards.
- Page 7 STEP 4 Attach the Keyboard Tray Assembly to the Desk (A) using M5x12mm Roundhead Screws (S-B) and a Phillips screwdriver. Keyboard Tray Assembly STEP 5 Place devices onto the Desk (A).
- Page 8 STEP 6 Organize cables using the Cable Ties (E).
-
Page 9: Tension Adjustment
Tension Adjustment Why Is My Riser So Why Is My Riser So Hard/Easy To Raise? Hard/Easy To Raise? If your desk riser lifts up or If your desk riser lifts up or down too easily, or is too down too easily, or is too difficult, the gas spring cable difficult, the gas spring cable can be adjusted to your desired... - Page 10 1. Desk Is Difficult to Raise/Lower [ How to Increase Tension ] If the desk feels difficult to raise and lower, you will need to increase the Gas Spring Cable tension. Gently pull the cable upwards until the Lower Nut (2) is firmly pressed against the middle divider.
- Page 11 2. Desk Raises/Lowers Too Easily [ How to Decrease Tension ] If the desk is raising or lowering without the handle being pressed, the tension will need loosened. Gently push the cable downwards until the Upper Nut (1) is firmly pressed against the middle divider.
- Page 12 LAST UPDATED: 04/02/25 REV2V v2.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@techorbits.com 309-278-5303...
