Instructions for the
Elegra Humidifier
INS-0255

Advertisement

loading
Need help?

Need help?

Do you have a question about the Elegra and is the answer not in the manual?

Questions and answers

Related Manuals for Glass Expansion Elegra

Summary of Contents for Glass Expansion Elegra

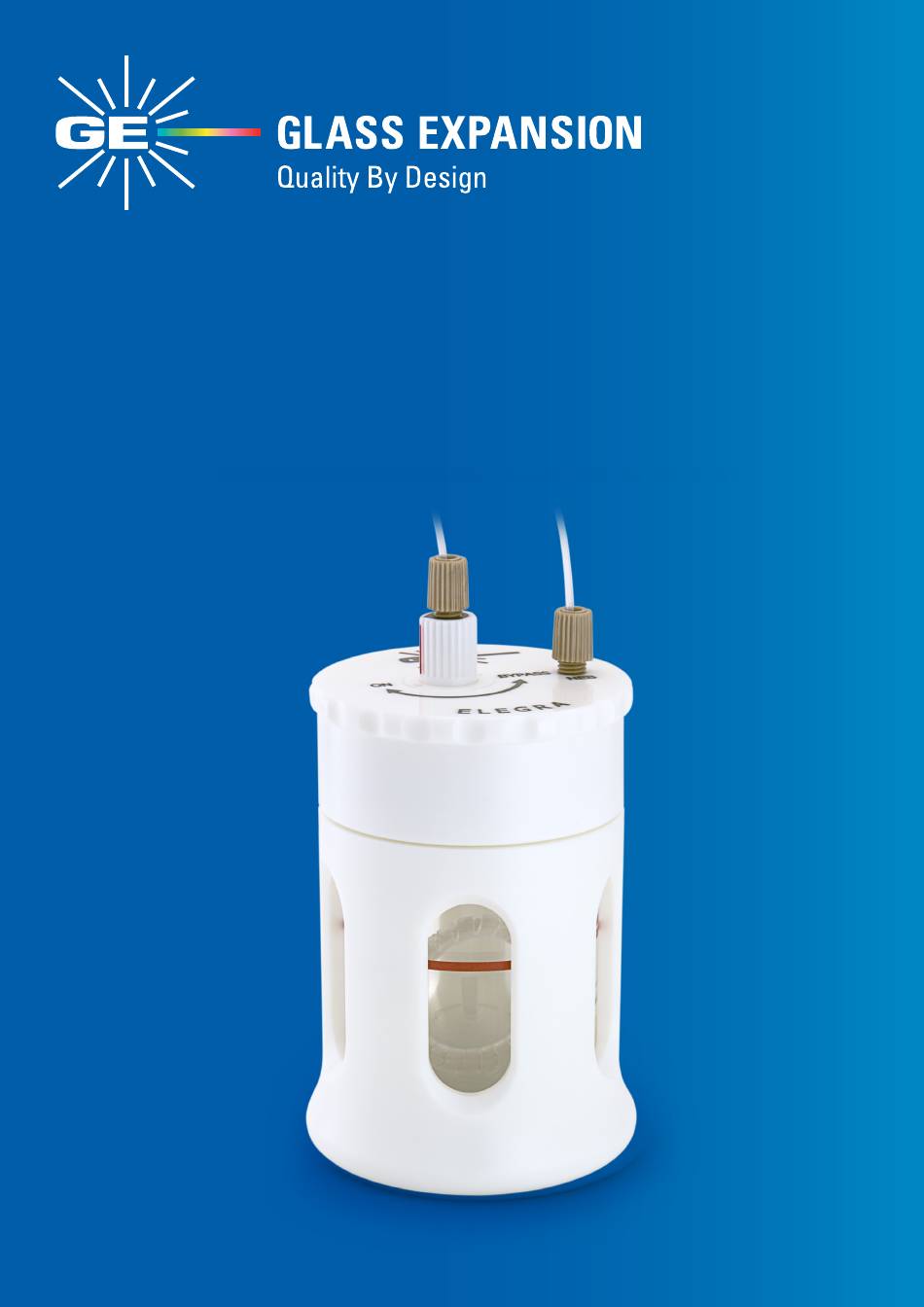

  • Page 1 Instructions for the Elegra Humidifier INS-0255...
  • Page 2 Disclaimer: Glass Expansion supplies products to customers with the assumption that only qualified individuals who are properly trained in the appropriate procedures will use our products. It is our customer’s entire responsibility to safely store, handle and use the products ordered from Glass Expansion.
  • Page 3 Elegra Humidifer Diagram To Spectrometer gas port To Nebulizer Gas Inlet Gas Outlet Glass Expansion Version 3.1 Page 3 ®...
  • Page 4 Assembly of the Elegra Humidifier Initial Filling with water To fill the Elegra humidifier, unscrew the top cap and place it aside. The membrane coil will remain attached to the cap. Take care not to damage it, particularly when screwing the cap back on.
  • Page 5 P/N EL-1 (Ezylok Kit). In either case, connect the ratchet fitting to the Elegra gas outlet (marked NEB on cap) as described above. Connect the other end to the nebulizer gas inlet using the ratchet fitting (for 70-803-1505) or the Ezylok kit (for 70-803-1105).
  • Page 6 Hold the Elegra cap with rotating female Luer lock assembly facing outwards. Insert one end of the membrane firmly into the Elegra cap outlet whilst rotating female Luer lock in the direction of the arrow (Figure 2). Now repeat to secure the other end of the membrane.

  • Page 7: Consumables List

    EzyLok Connector for 4mm Tubing 70-808-0735 EzyLok 6mm Hose Adaptor 70-803-2006 Elegra Argon Humidifier Cap Assembly 70-803-1257 Elegra Reservoir 70-V-225 O-ring for Capricorn or Elegra Cap (PKT. 3) 50-100-1636 O-ring Removal Tool 70-803-1286 Elegra Membrane 70-803-1581 Elegra Mount 70-803-1229 Elegra Humidifier Housing Glass Expansion Version 3.1...
  • Page 8 For more information please visit www.geicp.com or contact one of our offices below Asia Pacific 6 Central Boulevard, Port Melbourne, VIC 3207, Australia Telephone: +61 3 9320 1111 Email: enquiries@geicp.com Americas 31 Jonathan Bourne Drive, Unit 7 Pocasset, MA 02559, USA Telephone: 508 563 1800 Email: geusa@geicp.com Europe...
