Motionics CrankSense WCDGK-1 Product User Manual

Product User Guide
IMPORTANT NOTES
Turn on both Bluetooth transmitter AND digital indicator before pairing.
Turn off both Bluetooth transmitter and digital indicator after each use. They will NOT
turn off automatically.
Do NOT open the Gauge. Opening causes permanent damage and voids the warranty.
CrankSense Wireless Crankshaft Gauge operates on two separate batteries:
1) Rechargeable built-in Li-Po battery for the Bluetooth transmitter.
2) Coin SR44 or LR44 battery for the digital dial.
Use the punch included in this kit or other 60° punches to create blunt points on
crankshaft webs to create sitting spots for the gauge tips.
Adjust the adjustable probe to keep the gauge travel around the middle of its
measurement range.

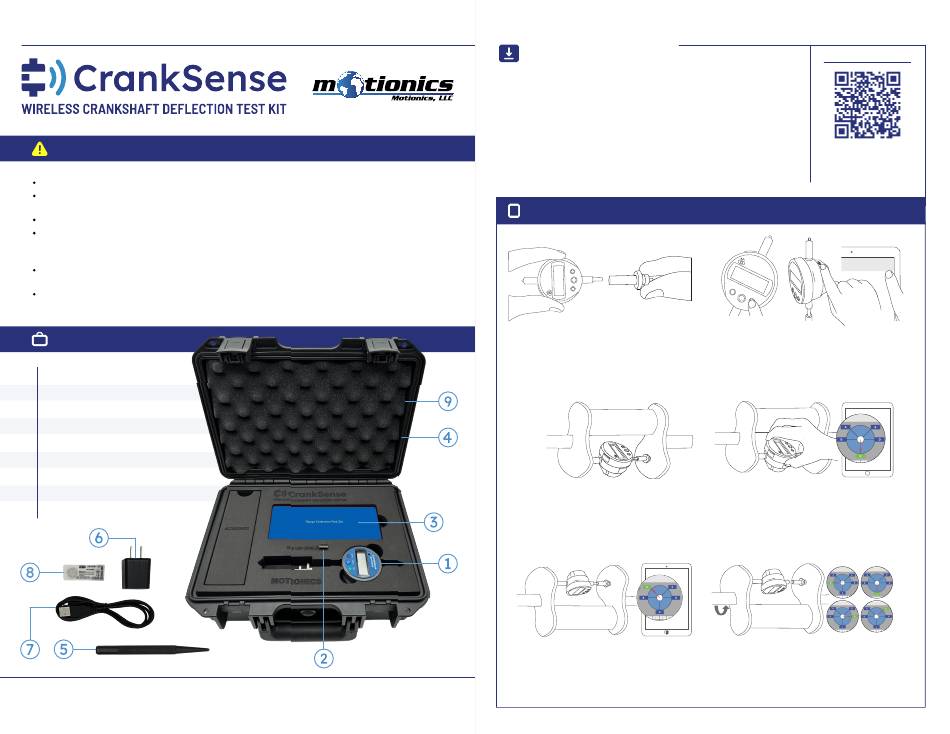

WHAT'S IN THE BOX
1 Wireless CrankSense Gauge
2 BLE USB Dongle
3 Extension Rod Set
4 Protective CrankSense Case
5 60° punch
6 USB Power Adapter
7 USB Charging Cable
8 CrankSense Coin Battery
9 Documents behind lid foam
Motionics, LLC www.motionics.com
© 2025 Motionics, LLC All Rights Reserved
SOFTWARE DOWNLOAD
CrankSense app/ software is available for free
on iPad and Windows devices.
For direct download, click the link below or
scan the QR code.
CrankSense for iPad
https://apps.apple.com/us/app/cranksense/id1009483905
CrankSense for Windows:
https://motionics.com/downloads/crankshaft-windows/setup.exe
QUICK START FOR IPAD USERS
1. Connect the wireless gauge to the
adjustable probe. Add extension rods
based on the crankshaft web gap.
Flywheel
side
3. Create 60° blunt points on the crank
shaft webs using the punch in the kit.
Install the wireless gauge between two
blunt points.
5. Rotate the crankshaft pin to near the
bottom position. Once the A button turns
green, tap on it and start data collection.
info@motionics.com
Made in the USA
1
CrankSense: Wireless Crankshaft Deflection Test Kit
CrankSense for iPad
2. Turn on BOTH the digital indicator and the
Bluetooth transmitter on the gauge. Pair the
gauge in the iPad app.
4. Rotate the crankshaft pin to the top
vertical position. Adjust the orientation of the
wireless gauge until the C button turns green
in the iPad app.
6. Rotate the crankshaft counter-clockwise,
then tap buttons B to E one by one when they
turn green to finish the test for one web.
Pair
