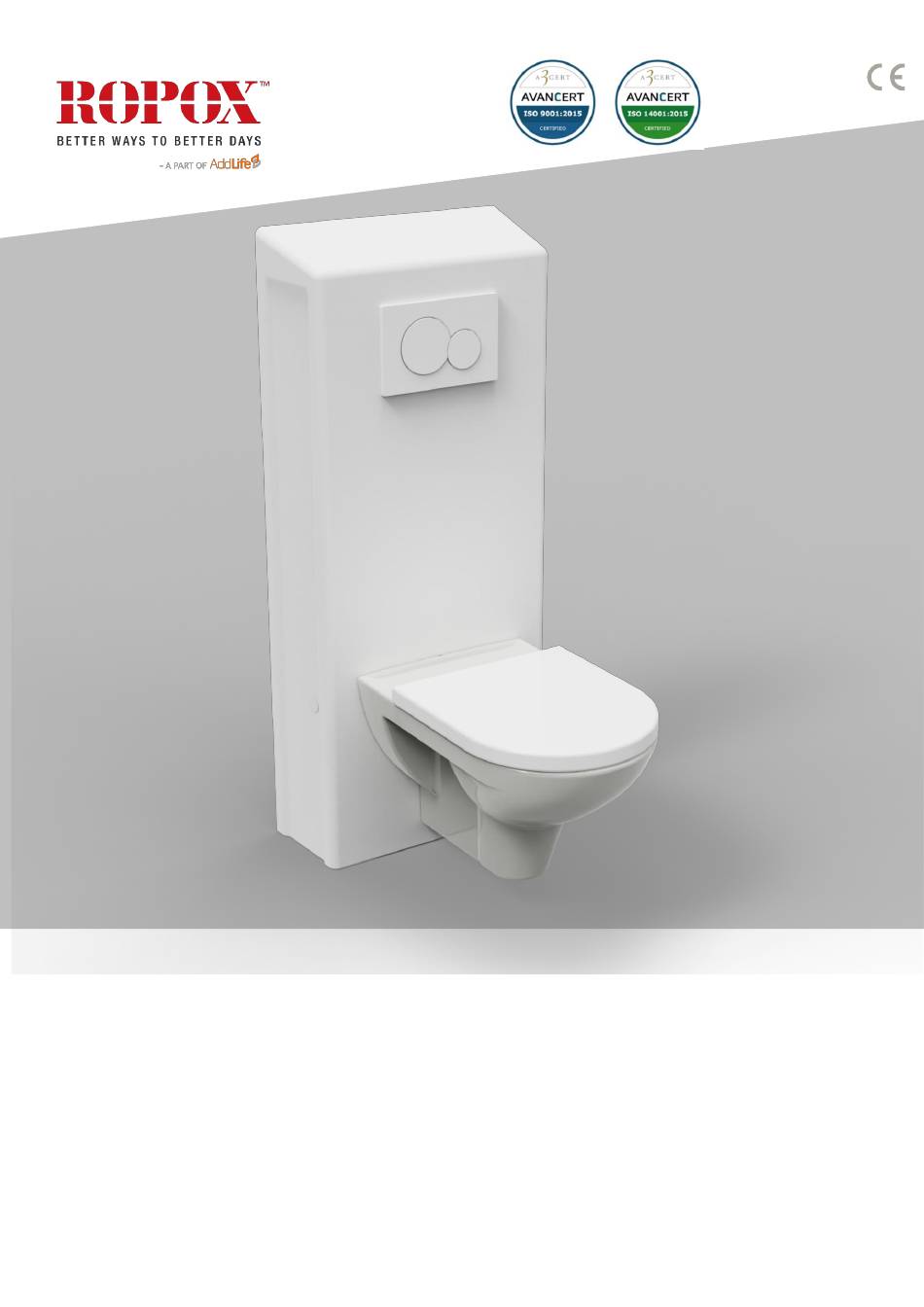

- Page 1 ROPOX Toilet lifter Manual User manual This manual should always be in close proximity of the product TF 200.13.0005_ENG / Date 02-01-2025...
-
Page 2: Table Of Contents
Table of content Symbols used in this manual ........................3 General safety ............................3 Product Unit label ........................5 General requirements ..........................6 3.1 Product information ........................6 3.2 Product description ........................7 3.3 Intended use..........................7 3.4 Intended operator .......................... 7 3.5 Essential performance ........................ -
Page 3: Symbols Used In This Manual
1. Symbols used in this manual Warning! Indication of potentially hazardous situation. If not avoided, it can result in serious injury or death. Caution! Indication of potentially hazardous situation which may result in minor or moderate injury. It may also be used to alert against unsafe practices. Notification! This symbol is used to notify correct use and handling of the product. - Page 4 Do not perform repairs, disassembly or assembly operations, add-ons, re-adjustments, or modification of the product beyond what is described in this manual. These must be carried out by Ropox or Ropox authorized personnel. Do not perform service while in use. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if...
-
Page 5: Product Unit Label
2.1 Product Unit label This product is CE-marked in accordance with: European Medical Device Regulation (EU)2017/745 Manufacturer name and address Date of production Stock number Serial number Consult manual for important safety related information, warnings, and safety precautions Do not dispose as unsorted municipal waste. Product must be returned to a designated recycling station Operating and storing temperatures may not exceed 5-40°C Consult the instructions for use... -
Page 6: General Requirements
3. General requirements 3.1 Product information Manufacturer Ropox A/S Ringstedgade 221 DK-4700 Naestved +45 55 75 05 00 Info@ropox.com Product models Part number Model Configuration 40-45026 Toilet lifter Manual Floor drain 40-46026 Toilet lifter Manual Wall drain Expected service life 5 years MDR Class Class I... -
Page 7: Product Description
3.2 Product description The ROPOX manual toilet lifter can be set in heights ranging from 400-620mm by the use of a crank handle. This can be done on either side of the toilet lifter if space is limited. Height adjustment will meet different sitting height needs from various patient heights. -
Page 8: Instructions For Use
4. Instructions for use 4.1 Installation of product The following instructions describe how to assemble and mount the toilet lifter, as well as optimal placement of water and drain, based on whether the toilet lifter with floor drain or wall drain has been purchased. 4.1.1 Installation interface for water It is recommended to always place the water connection as shown below. -
Page 9: Installation Interface For Wall Drain
4.1.3 Installation interface for wall drain For 40-46026 For the toilet lifter with a wall drain, it’s recommended to place the drain within the hatched area, not deviating further than the shown tolerances. This ensures the best flushing. NB! All dimensions in mm Ropox supplied toilets Shortening of ferrule Shortening of flushpipe... -
Page 10: Construction
4.1.4 Construction Note! The toilet lifter is supplied with a set of 6 screws and rawlplugs suitable for mounting in a concrete wall. The fitter should always consider the material, condition, and strength of the wall and use screws and rawlplugs suitable for the specific wall type. Caution! Maximum pulling force per screw is 44kg, at 400kg max user weight according to ISO 17966: 2016... -
Page 11: Mounting The Product
4.1.5 Mounting the product Line up frame with adjustment screws. Mark out 6 holes and drill holes for appropriate rawlplugs. Ensure that the center of the bottom 2 holes is at least 130mm above the floor Connect water hose on wall outlet and electric outlet before securing frame to the wall Secure frame to wall. - Page 12 For 40-45026 If drain is in floor, mount the drain bellow as instructed below. The examples given below to the left, are configurations that will work, but as a general rule, the installation interface in 4.1.2 should be followed. Make sure the bellow is not twisted Mount the bellow as shown below for correct flow...
- Page 13 For 40-46026 If drain is in wall, mount the drain bellow in wall drain, mount the accompanying brackets on the wall, so that the toilet flange is held in place. Make sure the bellow is not twisted...
- Page 14 Cut threaded rods to length and secure them in the frame Mount inner covers 1 and 2...
- Page 15 Before mounting inner cover 2, if the extension covers have been purchased, these must be mounted beforehand. See 4.4.3 Mount outer cover. If the extension covers have been purchased, these must be mounted before the outer cover. See 4.4.3...
- Page 16 Shorten ferrule and flush pipe to length and mount them Mount the toilet and press pad Finish the installation by checking the following: 1. Rigidity test, sit on the toilet and check screw connections are firm. 2. Check that full travel of the product goes unhindered. 3.
-
Page 17: Operating The Product
4.2 Operating the product Adjusting the height is done by turning the crank. Warning! The product should always be able to travel the full range of actuation without colliding with objects. Failing to do so will compromise the product stability. Special care should be taken in ensuring that no children or adults are sited under the product as severe injury from entrapment may occur. -
Page 18: Installation Of Accessories
4.4 Installation of accessories 4.4.1 Installation of height-adjustable brackets 1. Start by unscrewing the transport screw from the plate nut, it’s an M8x20 Allen screw, save it for later use. 2. Mount the bracket with four M6x30 screws + washers (included) in the four threaded holes on the toilet lifter. - Page 19 3. Install the M8x20 screw + washer in the top hole in the centre of the bracket, it must go in and catch the plate nut on the back, note that it is the top hole in the plate nut that the screw is inserted into, tighten the screw slightly as it only helps to guide the plate nut.
- Page 20 5. The support attaches to the threaded studs on the bracket and is mounted with six M6 locknuts (included) Reattach the plastic caps to the support.
- Page 21 6. Adjust the resistance/release of the bracket on the four M6x30 screws that move in the slots. The bracket is adjusted to minimise wiggle room without making it difficult to move up and down. Wiggle the support sideways, check if the support is firm enough, if it seems very loose, tighten the screws slightly until the tolerance is satisfactory.
- Page 22 7. Mount the spacer together with the cover plate with the clamping handle in the lower hole in the centre of the bracket, the clamping handle must also engage with the plate nut on the back. 8. The clamping handle adjusts so the bracket can be freely adjusted up and down when open and effectively locks the bracket in the closed position.
- Page 23 9. The toilet supports are now fully installed. Try adjusting them up and down to see if they move as they should.
-
Page 24: Installation Of Backrest
4.4.2 Installation of backrest If Ropox Back Support long is ordered together with Ropox Toilet Lifter, there will be pre-drilled holes in the cover cap. If the back support is ordered later for subsequent mounting, new holes must be drilled. Please see the dimension drawing for the location of holes. -
Page 25: Installation Of Extension Cover
4.4.3 Installation of extension cover Only fits outer cover with slanted top! If the extension cover has been ordered, it must be mounted prior to mounting the original covers. The extension cover comes disassembled to make transport and disposal easier. It’s mounted onto the original covers by clamping it on, then fastening it with set screws. -
Page 26: Compatible Shower Toilets
Mount the large sides Continue mounting as normal, see 4.1.5f. 4.5 Compatible shower toilets For the Ropox Toilet Lifter, you have the option to use a shower toilet rather than a regular toilet. Both regular toilets and a shower toilet is offered as an option for the toilet lifter. The following shower toilets can be used with the toilet lifter: •... -
Page 27: Installation Of Bidet
4.5.1 Installation of bidet To mount Svancare Bidet Elegant, see TF 200.01.0025. -
Page 28: Cleaning
5. Cleaning Cleaning can be done with lukewarm water and a suitable all-purpose cleaning agent. Use a cloth or soft sponge to wash the product. For surface disinfection, chlorine-based disinfectants may be used in accordance with the product specification and safety precautions for these products, however, not at a solution greater than 1.000 ppm of active chlorine. -
Page 29: Maintenance
6. Maintenance Notification! Failing to comply with periodic maintenance may result in degradation of the product function and safety. 6.1 Periodic maintenance Component Maintenance activity Maintenance interval Registration date of maintenance Geberit Sigma 12 Descaling / change of 6-12 months dependent cistern worn components on calcium content in... -
Page 30: Component Parts List
7. Component parts list Notification! Ropox will make parts list available for extraordinary maintenance and repair beyond what is described in this manual. Repair beyond what is described in this manual may only be done by Ropox designated service personnel. 8.
