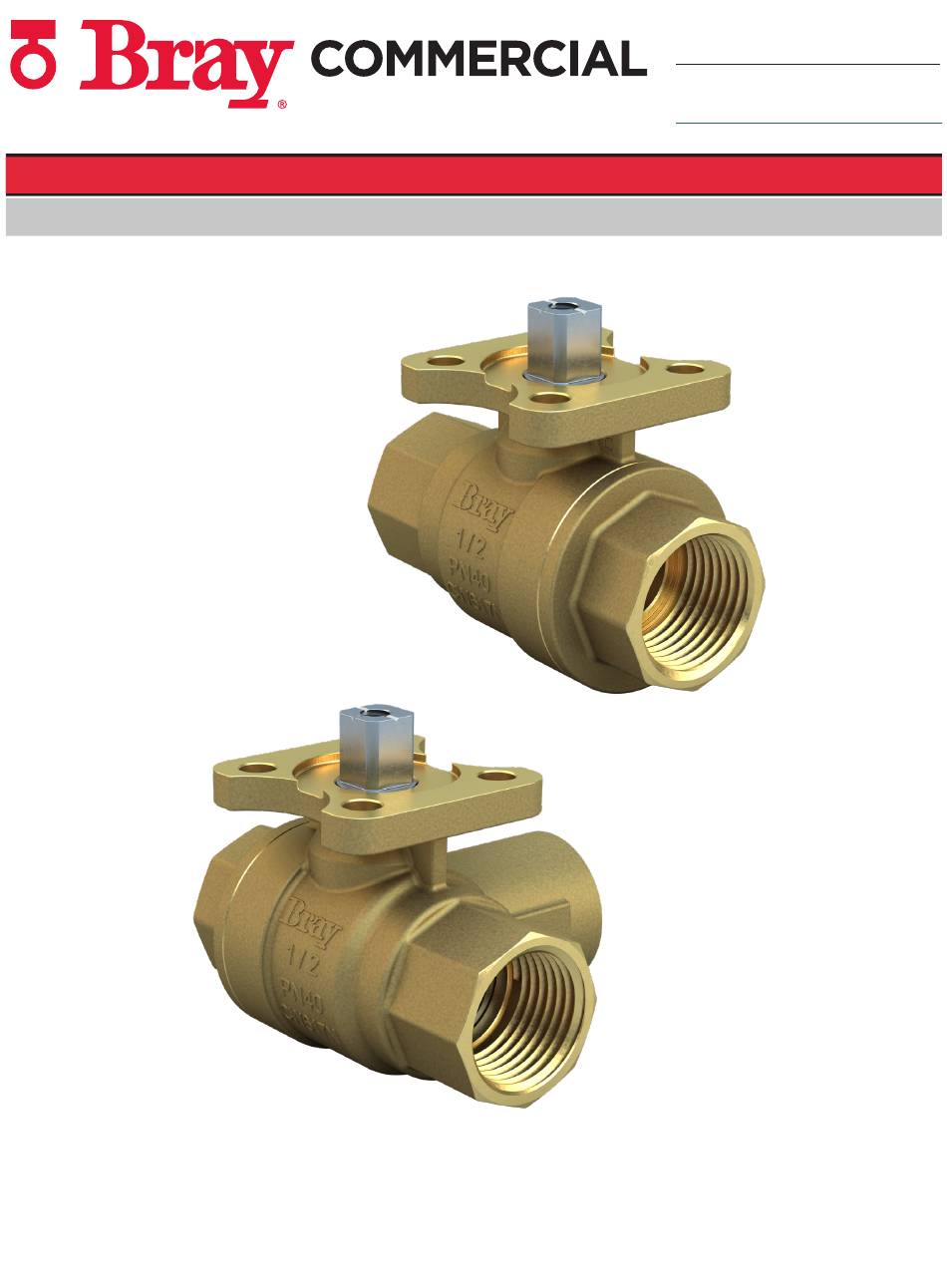

- Page 1 Bray Commercial Division 13788 West Road, Suite 200A Houston, Texas 77041 BCDSales@Bray.com Phone: 1-888-412-2729 www.braycommercialdivision.com © 2022 Bray International, Inc. 03/04/25 EBV Series - 2-Way & 3-Way, 1/2" – 2" IOM Manual...
-
Page 2: Table Of Contents
Disclaimer - The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications consult the local Bray office. Bray, Inc. shall not be liable for damages resulting from misapplication or misuse of its products. -
Page 3: Safety Instructions
The EBV Series characterized ball valves provide accurate and cost effective control of a wide range of equipment in HVAC applications. The EBV Series features a forged brass 2-piece body with Stainless Steel balls and stems for water temperature up to 284˚F (140˚C) and saturated steam up to 15 psig. -
Page 4: Port Configurations
EBV Series Installation, Operation & Maintenance Manual Continued Installation Install EBV Series Ball Valves with the actuator at or above the centerline of the horizontal piping, as shown in Figure 1. Port A Common Coil Port A Common Coil Bypass... -
Page 5: Sweat Valve Installation
Installation, Operation & Maintenance Manual Continued Press Valve Installation Sweat Valve Installation EBV Series press end connection valves are When soft soldering sweat ball valves, be sure to installed using RIDGID® press tools. Always refer use a low temperature solder with a melting point to the operator’s manual supplied with the RIDG-... -
Page 6: Piping Schematics
Supply Typical Two-Way Ball Valve Application Note : Mount the valve downstream from the coil to minimize heat transfer to the actuator. 2-Way - Default Configuration for EBV Series Ball Valves 2-Way Spring Return 2-Way Spring Return Valve Position at Actuator Position 2-Way Non-Spring Return N.O. -
Page 7: Actuator Dimensions
EBV Series Installation, Operation & Maintenance Manual Continued EBV Series - Actuator Dimensions DCS(M)-20 Series 5.37 136.4 4.77 121.3 1.42 2.79 36.0 70.8 2.93 74.4 4.87 123.8 DC(M)-44 Series 6.93 5.39 16.8 6.22 1.42 2.55 64.8 2.68 DCS(M)-62 Series 7.91 6.94... - Page 8 EBV Series Installation, Operation & Maintenance Manual Continued 2-WAY 2-WAY - VALVE BODY DIMENSIONS in. (mm) Flow Weights - lbs. Size (kg) Coefficient EBV Valve (SWEAT/ (NPT) Model # Prefix SWEAT/ PRESS) PRESS 2.60 4.60 0.69 1.14 0.35 1.22 0.98 0.71...
