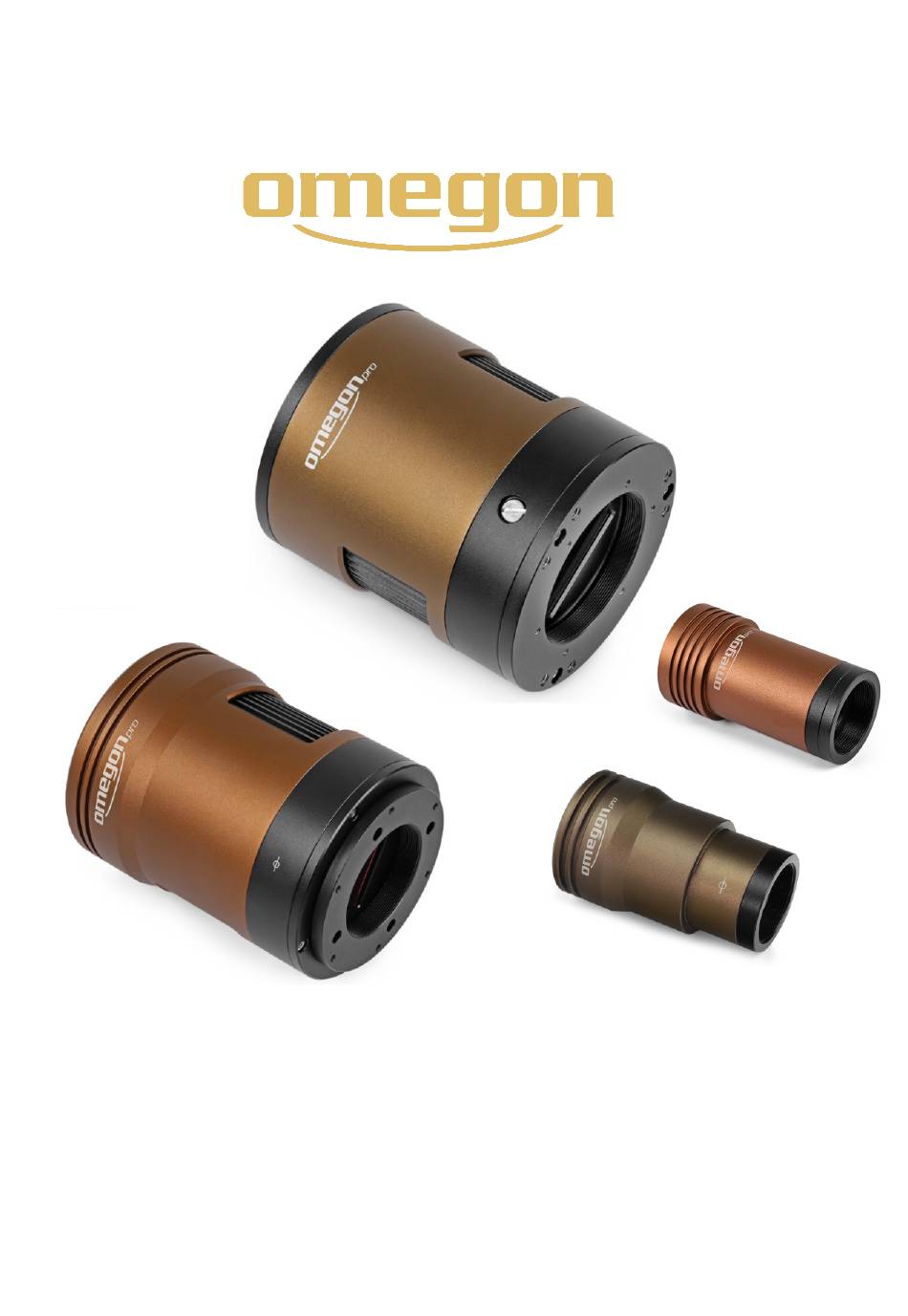

Instruction Manual
Omegon® Pro Cameras
veTEC, veLOX, GUIDE
English Version 12.2024 Rev. C Art.-Nr. 61033, 61034, 61035, 61036, 61037, 61038,
61039, 61040, 61041, 61042, 61043, 61044, 61045, 63068, 63069, 63070, 67319,
67320, 67338, 68722,68723, 69424, 79827, 80354, 80355, 80356, 80357, 82022, 83445, 83739, 84990, 85085
Reproduction of part or all of the contents of this document in any form is expressly prohibited other than for individual use only. All text, images and labels are property of NIMAX GmbH.
67320_EN_Bedienungsanleitung_REV_B
1 / 9
Advertisement
Table of Contents
Related Manuals for Omegon Pro Cameras veTEC
Summary of Contents for Omegon Pro Cameras veTEC
- Page 1 Instruction Manual Omegon® Pro Cameras veTEC, veLOX, GUIDE English Version 12.2024 Rev. C Art.-Nr. 61033, 61034, 61035, 61036, 61037, 61038, 61039, 61040, 61041, 61042, 61043, 61044, 61045, 63068, 63069, 63070, 67319, 67320, 67338, 68722,68723, 69424, 79827, 80354, 80355, 80356, 80357, 82022, 83445, 83739, 84990, 85085 Reproduction of part or all of the contents of this document in any form is expressly prohibited other than for individual use only.
- Page 2 The Omegon® Pro Cameras veTEC, veLOX, GUIDE Congratulations to your new Omegon® Pro Camera. This camera is designed for astrophotography in conjunction with a telescope and GoTo- or tracking mount. It is very different from common cameras you might be familiar with (for example the camera in your smartphone).
- Page 3 Please do not open the respective screw without talking back to Omegon support! If you encounter issues with humidity inside the camera, please contact us via service@omegon.eu...
-
Page 4: Other Properties
1.3.1. Sensor chamber protection window: A thin window protects your sensor from dirt and dust. The window is coated in anti-reflective layers to prevent internal reflections and flares. In Omegon veTEC cameras, the protection window is crucial for the sensor's cooling function: Any moisture from the environment would freeze over the cold sensor, if it wouldn’t be protected by the window. -
Page 5: Included Software
400 nm to 700 nm, so the important H-alpha wavelength at 656 nm can pass. Mono Cameras - no filter: In Omegon Pro mono cameras, the ultraviolet, visible and infrared light is transmitted. This makes the mono cameras sensitive to a wide range of wavelengths. If you are only interested in a specific range of wavelengths, you need to obtain a suitable filter. -
Page 6: Usage Examples
2.2. Connecting to PHD2 for autoguiding (optional) The Omegon Pro GUIDE and veLOX cameras are equipped with an ST4 Port and are ideal to use as an autoguider. For autoguiding, we recommend the free and open source application PHD2 (Open PHD Guiding). - Page 7 4. When choosing the connection to your mount, select On-camera to use the ST4 autoguiding port. Note: If you have a direct connection from your mount to your PC (for example via RS232 or USB cable), we recommend installing your mount specific ASCOM drivers and selecting those, instead of the On-camera option.
- Page 8 2.4. Taking long exposures – Deep Sky Photography Astrophotography of faint deep sky objects like nebulae or galaxies requires long exposures. Usually, those exposures are then being stacked into one final image with lower noise. The biggest obstacle for this kind of photography is your telescope mount: Unsteady tracking or poor alignment will limit your exposure time and stars will appear as streaks instead of points.
-
Page 9: General Safety Instructions
3. Security and longevity 3.1. General safety instructions Please keep this guide safe so you can refer to it. Pass it on to Never open the device yourself. Don't do any repairs yourself! subsequent owners. Handle the device carefully. It can be damaged by shocks, blows or falls This device is not intended to be used by persons (including children) from even a small height.
