Summary of Contents for Honeywell El Capitan

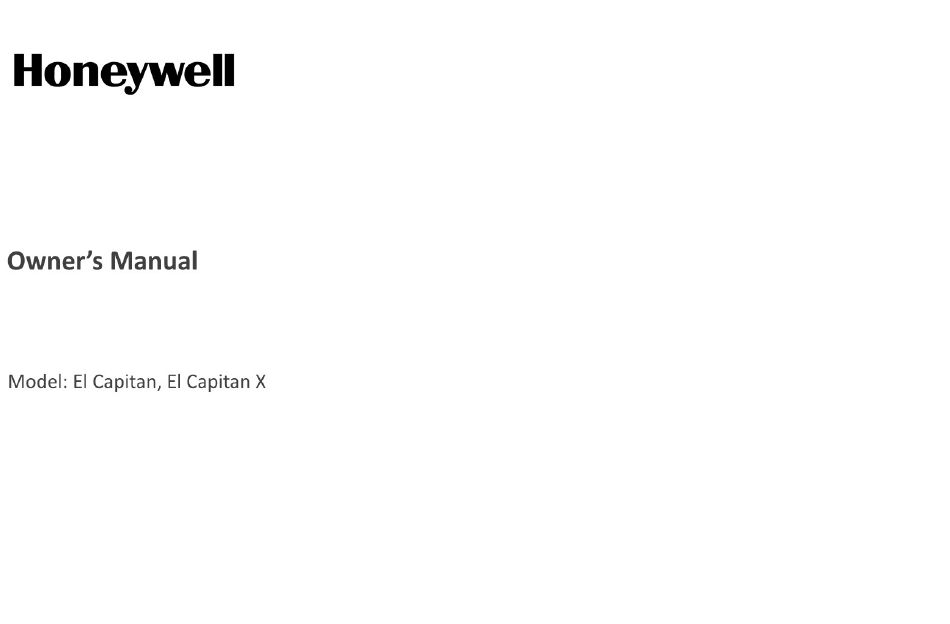

  • Page 1 Electric Mountain Bicycle...
  • Page 2 WELCOME Thank you for purchasing a Honeywell electric bike! We wish you many happy rides with your new ebike! Please read and understand all sections of this entire manual before operating the bike for the first time. This manual contains important safety, performance and service information. Failure to follow the instructions and warnings may lead to serious injury or death.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS General info ……………………………………………………………………………………………………………………………………………… 4 Battery ……………………………………………………………………………………………………………………………………………………….. 6 Assembly instructions …………………………………………………………………………………………………………………………… 9 Operation ………………………………………………………………………………………………………………………………………………….. 18 Maintenance and care ………………………………………………………………………………………………………………………….. 24 Warnings and safety ………………………………………………………………………………………………………………………..26 Warranty ……………………………………………………………………………………………………………………………………………………. 28...
  • Page 4: General Info

    GENERAL INFO Speed Limit Your Honeywell electric bike can assist you up to 20MPH (32 km/h), which is the legal limit in most areas in US and Canada. Honeywell bikes are considered Class 2 electric bikes in US. Riding Range Your electric bike can travel up to 40 miles (64 km) with pedal assist on a single full charge of the battery.
  • Page 5: Transportation And Storage

    GENERAL INFO (CONTINUED) Transportation and Storage • When transporting the bike, make sure the power is off. • If transporting on a vehicle, be aware of the maximum load capacity of the vehicle’s roof, towing hook and/or the bicycle carrier and make sure the battery is removed and stored elsewhere in the vehicle. •...
  • Page 6: Battery

    BATTERY General Info • Your electric bikes uses Lithium-Ion battery which can be charged on or off the bike. • Make sure to fully charge the battery for about 8 hours before the first use. • A full charge normally takes about 4-5 hours when the battery is not completely empty. •...
  • Page 7 BATTERY (CONTINUED) Battery Removal/ Installation • Ensure the bike is turned off while removing or installing the battery. • Insert the key in the lock and turn it to unlock the battery box. Carefully remove/insert the battery from/into the bike. •...
  • Page 8 BATTERY (CONTINUED) Battery Safety and Care • Make sure to turn off the bike while charging. • Check the charger, charger cables, plug and battery for damage before each charge, and ensure these components are dry to avoid any short circuit. •...
  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Step 1: Unbox your bike Open the bike box, first remove the small box inside, ask someone to help slowly lift the bike out of the box. Once the bike is removed from the box , set the bike on the ground with its rear wheel and front fork touching the floor. Open the small box and carefully set out all contents.
  • Page 10 ASSEMBLY INSTRUCTIONS (CONTINUED) Step 2: Install the handlebar First adjust the fork and make sure that it is facing forward in the correct direction. You will know the fork is in the correct position when the brake caliper is situated on the drivers left hand side of the bike. a.
  • Page 11 ASSEMBLY INSTRUCTIONS (CONTINUED) Step 2: Install the handlebar Once you find a suitable position you are able to start fastening down the handlebar faceplate. We recommend using the 4mm Allen key to attach the bolts one at a time (diagonally), then fully tighten until all bolts are installed. c.
  • Page 12 ASSEMBLY INSTRUCTIONS (CONTINUED) Step 2: Install the handlebar Make sure to tighten the top and bottom bolts on the stem with your 5mm Allen key. The bolts will already be in place, just make sure they are tightly fastened. e. Tighten the top bolt. f.
  • Page 13 ASSEMBLY INSTRUCTIONS (CONTINUED) Step 3: Install front wheel* *Note that even though the tire in the below photos might not be the same size for your bike, the installation process is the same. Once your handlebar is in place you are able to start the wheel installation process. Flip your bike upside down, make sure it is resting on the seat and the handlebar.
  • Page 14 ASSEMBLY INSTRUCTIONS (CONTINUED) Step 3: Install front wheel* *Note that even though the tire in the below photos might not be the same size for your bike, the installation process is the same. c. Position the front wheel and make sure that the d.
  • Page 15 ASSEMBLY INSTRUCTIONS (CONTINUED) Step 4: Install the pedals L/WL is marked as left pedal, R/WR is marked as right pedal. Carefully insert the right pedal (R/WR) into the right crank, and the left pedal (L/WL) into the left crank. Make sure that when installing, the pedal is rotated in the forward-facing direction, then use the 15mm flat wrench to tighten them into place.
  • Page 16 ASSEMBLY INSTRUCTIONS (CONTINUED) Step 5: Install the headlight Use your provided 4mm Allen key to loosen the headlight from the mounting bracket. Position your headlight so it is facing forward. Once you find a suitable position, use your Allen key to tighten the headlight into place. a.
  • Page 17 ASSEMBLY INSTRUCTIONS (CONTINUED) Step 6: Adjusting your seat height Your seat height should be adjusted properly to ensure you get the most comfortable ride possible. The seat height can be adjusted by loosening the lever on the seat tube clamp. Make sure to retighten after adjustment. If you are unable to adjust your seat, open the lever, and then turn it counterclockwise to loosen it.
  • Page 18: Operation

    OPERATION Location Information UP button POWER/SWTICH button LCD Display Operation DOWN button The table and image below show the various features and Pedal Assist Level (PAS): information displayed on the LCD display. (0 – 5) Mode; 0 = No assistance Battery Level Indicator: 4 Bars: over 70% battery capacity 0 Bar: less than 15% battery capacity...
  • Page 19: Pedal Assistance

    OPERATION (CONTINUED) Please read and understand all sections of this entire manual before operating the bike for the first time. Ensure the bike has been properly assembled and the pre-ride safety check has been performed. Turning on/off the e-bike • Your electric bike is operated using the display on the handlebar. Press and hold the ‘POWER’ button to turn-on or turn-off the display and the motor power supply of the bike.
  • Page 20: Walk Assistance

    OPERATION (CONTINUED) Throttle • Your electric bike is equipped with a thumb throttle, which is mounted near the rider’s right thumb. No pedal is needed once the bike is moving on the throttle power. • Simply push the throttle using your thumb and the throttle can propel you at speeds up to 20 mph (32km/h). •...
  • Page 21: Suspension Fork Adjustment

    OPERATION (CONTINUED) Suspension Fork Adjustment Your electric bike has a suspension fork at the front of the bike, which come equipped with adjustment and lockout mechanisms on the top of the fork. The lockout and preload adjustment controls allow riders to optimize the bike for their riding style and the trails that they love.
  • Page 22: Display Mode

    OPERATION (CONTINUED) Display Mode Press the ‘POWER’ button to cycle through the different modes of the display. The display will automatically return to display 1 after 5 seconds while riding. • Display 1: Battery level indicator/ Current trip time/ PAS level/ Real-time speed/ Current distance traveled •...
  • Page 23: Error Codes

    OPERATION (CONTINUED) Error Codes Your Honeywell electric bike is equipped with an error detection system integrated into the display. In the rare event of an electrical issue with the bike, an error code may appear on your display. Please note the error code and contact Honeywell Bikes Support at (800)-768-0792 immediately.
  • Page 24: Maintenance And Care

    • It is recommended to have your bike inspected and adjusted every 3 months by a professional bicycle technician. • Honeywell electric bikes and their components are water resistant. Riding in rain or snow should not cause any damage. However, please do not submerge your bikes electrical components in water, or use a pressure washer to clean the bike.
  • Page 25: Pre-Ride Safety Check

    MAINTENANCE AND CARE (CONTINUED) Pre-ride Safety Check It is recommended to perform a safety check of your electric bike before each ride. • Make sure tires are properly inflated. Use a reliable tire gauge to check the tire pressure, if the pressure is too low, inflate your tires until you reached the recommended pressure as shown on the tire sidewall.
  • Page 26: Warnings And Safety

    WARNINGS AND SAFETY This manual contains important safety, performance and service information. Failure to follow the instructions and warnings may lead to serious injury or death. • All users must read and understand this manual carefully before riding on the new electric bicycle. Always keep this manual for future reference.
  • Page 27 WARNINGS AND SAFETY (CONTINUED) This manual contains important safety, performance and service information. Failure to follow the instructions and warnings may lead to serious injury or death. • Take extra care while riding in wet condition such as snow and rain. •...
  • Page 28: Warranty

    Please carefully read our warranty terms below. If you believe your electric bike has a warranty issue, please contact us directly. Warranty Policy • All Honeywell electric bikes and their components carry the following 1-year manufacturer warranty with the original registered owner including frame, battery, electronics and most parts (excluding tires, tubes, brake pads, cables & housing, pedals) •...
  • Page 29 WARRANTY (CONTINUED) Warranty Exclusions • Normal wear and tear • Damage or failure resulting from failure to follow instructions in the owner’s manual • Damage or failure from abuse, neglect, misuse, improper repairs or accident • Damage or failure from modification of any of the bike systems •...
  • Page 30 WE ARE HERE TO HELP If you have any questions or need service, please access our Help Center to submit a request, and/or contact us by email or a phone call for a solution. Help Center: : https://honeywellbikes.zendesk.com Email: support@honeywellbikes.com Phone: (800)-768-0792...
  • Page 31 © 2022 Raze Outdoors LLC. All rights reserved. The Honeywell Trademark is used under license from Honeywell International Inc. Honeywell International Inc. makes no representations or warranties with respect to this product. This product is manufactured by Raze Outdoors LLC.

This manual is also suitable for:
