Superwinch H9W 4234 Modification Procedure
Introduction
NRG has found that under certain loading conditions the winch base plate can become permanently distorted.  NRG has
determined that this is not a safety issue, but a distorted baseplate should be replaced to avoid any potential accelerated
wear on the winch.

NRG has developed a modification to the winch  that prevents this permanent distortion of the winch base plate.  See
below for installation instructions for this modification.

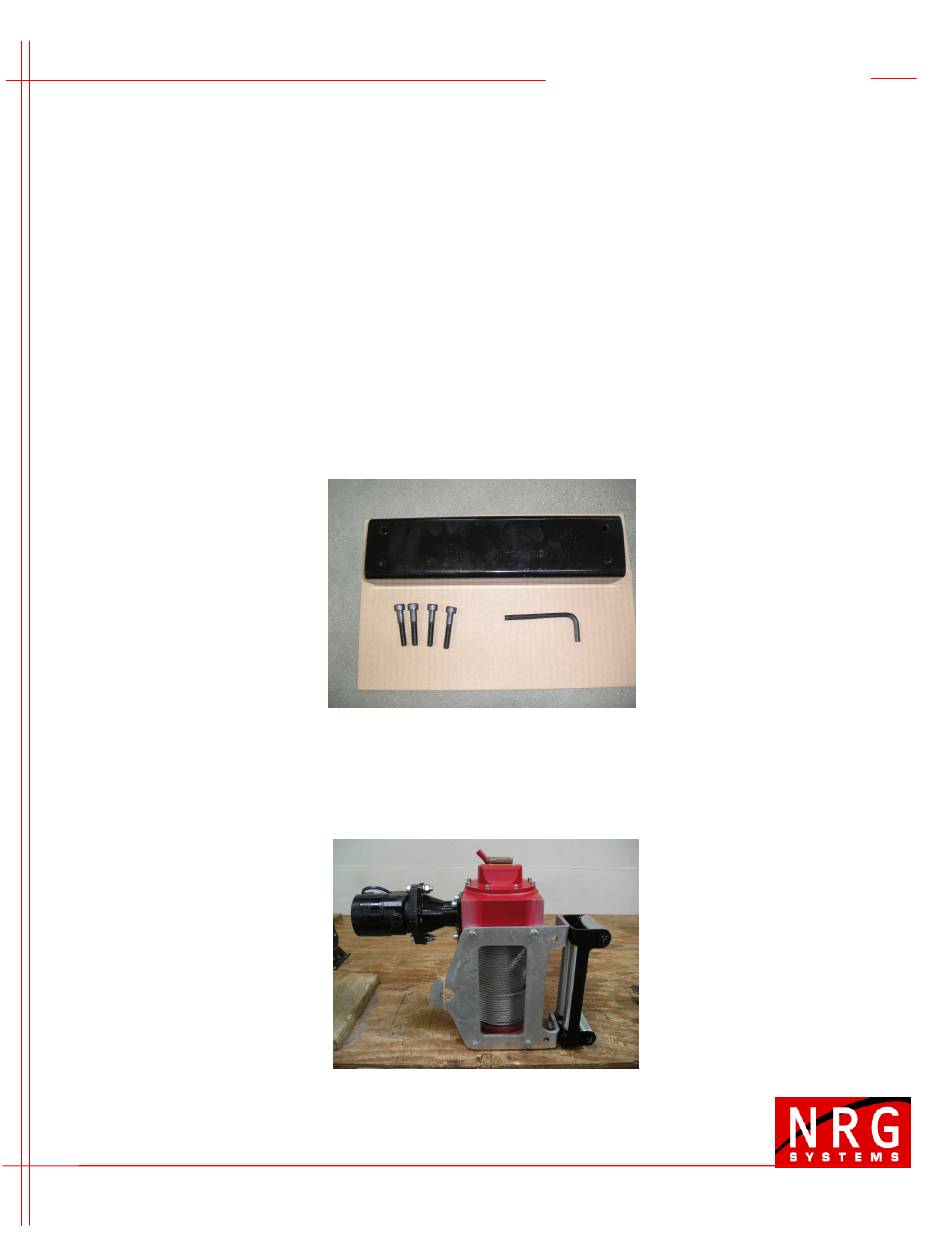

Modification Kit Components:
11.875x2x3 Steel Square Tube

M8x45mm Grade 12 Socket Head Cap Screws

6mm Allen Wrench
Installation Procedure:
1) Place the winch on its side on a sturdy level surface as shown below.

2) Loosen the four bolts on the bottom of the base plate.  Do not remove.

110 Riggs Road · Hinesburg · VT 05461 USA · TEL (802) 482-2255 · FAX (802) 482-2272 · EMAIL sales@nrgsystems.com
4234fginstructions.docx


Global leader in wind measurement technology
Rev 1.1
17 March 2010
INSTRUCTIONS


Advertisement

loading
Need help?

Need help?

Do you have a question about the Superwinch H9W 4234 and is the answer not in the manual?

Questions and answers

Summary of Contents for NRG Systems Superwinch H9W 4234

  • Page 1 INSTRUCTIONS Superwinch H9W 4234 Modification Procedure Introduction NRG has found that under certain loading conditions the winch base plate can become permanently distorted.  NRG has  determined that this is not a safety issue, but a distorted baseplate should be replaced to avoid any potential accelerated  wear on the winch.      NRG has developed a modification to the winch  that prevents this permanent distortion of the winch base plate.  See  below for installation instructions for this modification.   Modification Kit Components: 1  11.875x2x3 Steel Square Tube    4  M8x45mm Grade 12 Socket Head Cap Screws    1  6mm Allen Wrench    Installation Procedure: 1) Place the winch on its side on a sturdy level surface as shown below.        2) Loosen the four bolts on the bottom of the base plate.  Do not remove.    Global leader in wind measurement technology 110 Riggs Road ·...
  • Page 2 INSTRUCTIONS     3) Loosen and remove the two bars on the back of the winch with the allen wrench provided.  Save the  spacers and the lock washers.  They will be needed for the modification.            4) Install the 2x3 square tube using the provided socket cap screws.  Place the lock washers so that they  are between the inside of the square tube and the  head of the socket cap screw.  Place the spacer  between the square tube and the threaded holes on the winch housing.    Global leader in wind measurement technology 110 Riggs Road · Hinesburg · VT 05461 USA · TEL (802) 482-2255 · FAX (802) 482-2272 · EMAIL sales@nrgsystems.com 4234fginstructions.docx Rev 1.1 17 March 2010...
  • Page 3 INSTRUCTIONS     5) Repeat step 4 for the other three holes and tighten snugly.  6) Tighten base plate bolts snugly.  When finished, the modified winch should appear identical to the winch in the photo below.  Global leader in wind measurement technology 110 Riggs Road · Hinesburg · VT 05461 USA · TEL (802) 482-2255 · FAX (802) 482-2272 · EMAIL sales@nrgsystems.com 4234fginstructions.docx Rev 1.1 17 March 2010...
  • Page 4 INSTRUCTIONS Exploded Assembly View: Global leader in wind measurement technology 110 Riggs Road · Hinesburg · VT 05461 USA · TEL (802) 482-2255 · FAX (802) 482-2272 · EMAIL sales@nrgsystems.com 4234fginstructions.docx Rev 1.1 17 March 2010...
