Firechief FSP500 Quick Start Instructions

QUICK START INSTRUCTIONS
Product code: 116-1168 Model: FSP500
FIRECHIEF SITEWARDEN RF PRO SITE ALARM
– FIRE AND FIRST AID
BOX CONTENTS
1 x Sitewarden wireless fire/first aid alarm.
1 x Aerial and plastic spacer
4 x Wall screws and wall plugs
2 x LSH20 3.6V batteries
INTRODUCTION
The FSP500 Sitewarden Fire and First-Aid Site Alarm is a battery-
powered, wireless critical alert system designed for maximum
portability and ease of installation. Each unit can be paired with up
to 63 additional units to create a comprehensive, site-wide alert
network.
When activated, the FSP500 delivers up to 10 watts of high-quality
audio annunciation, complemented by bright, strobing LEDs for
visual alerts. Any unit can be configured as a master unit, capable of
identifying and announcing which specific unit has been triggered.
For enhanced communication, an optional IP Bridge can be
integrated into the system, allowing email and SMS alerts to be sent
to designated recipients. SMS functionality requires a Twilio account.
Upon activation of the Fire button, all units will broadcast a pre-
recorded alert message, with the master unit identifying the source
of activation. In the case of a First-Aid alert, only the activated unit
and the master unit will sound, though all units can relay the wireless
signal across the site.
FEATURES
Power Requirements: 2 x 3.6V Lithium D cells
Battery Life: Up to 2 years with normal usage
Low Battery Warning: Flashing LEDs on units, wireless report
to IP bridge
Optional Power: 12V DC (eliminates the need for
Lithium D cells)
Audio Output: Up to 10 watts
Audio Quality: 44.1 kHz / 16-bit samples (CD quality)
Visual Warning:
4 high-power white LEDs, configurable
strobing sequence
Transmitter Power: 10mW at 434.525 MHz (license
exempt)
Reception Range:
Up to 1 km (line of sight)
Site/Unit Codes: 32 site codes, 64-unit codes within
radio range
IP Rating: IP66
Operating Temperature: -10°C to +60°C
Fuse ratings: F1_500ma quick blow.
F2 and F3_2.5A Time lag
PRE-INSTALLATION
UNPACKING
On receipt, inspect the package and contents for signs of damage. If
damage has occurred, advise the carrier and/or supplier immediately.
Inspect the contents to confirm that all items are present and
undamaged. If any items are missing or damaged, contact the supplier
Scan QR Code for
advanced instructions and
full programming capability
immediately. It is advised that the original carton is retained as this
forms the safest transport container in case a unit needs be returned
for any reason.
SERVICING
This unit should not require general servicing. Any repairs work
should only be undertaken by Firechief Global.
MOISTURE
Do not expose the internal electronics of this unit to moisture
i.e. take care during installation not to allow rain or damp into the
product. When product is sealed it is water resistant to IP66.
SET-UP
1. Place the spacer washer over the screw stud, then attach the
aerial.
2. Remove the lid by pressing down and turning each of the six
screws a quarter turn.
3. Insert the two 3.6V Lithium D cell batteries, observing correct
polarity.
4. Ensure that the jumper link is fitted to JP6 Jumper position.
Removing this jumper will disable the product.
5. The LED display will show "HI," followed by the firmware version
number, indicating the unit is powered on.

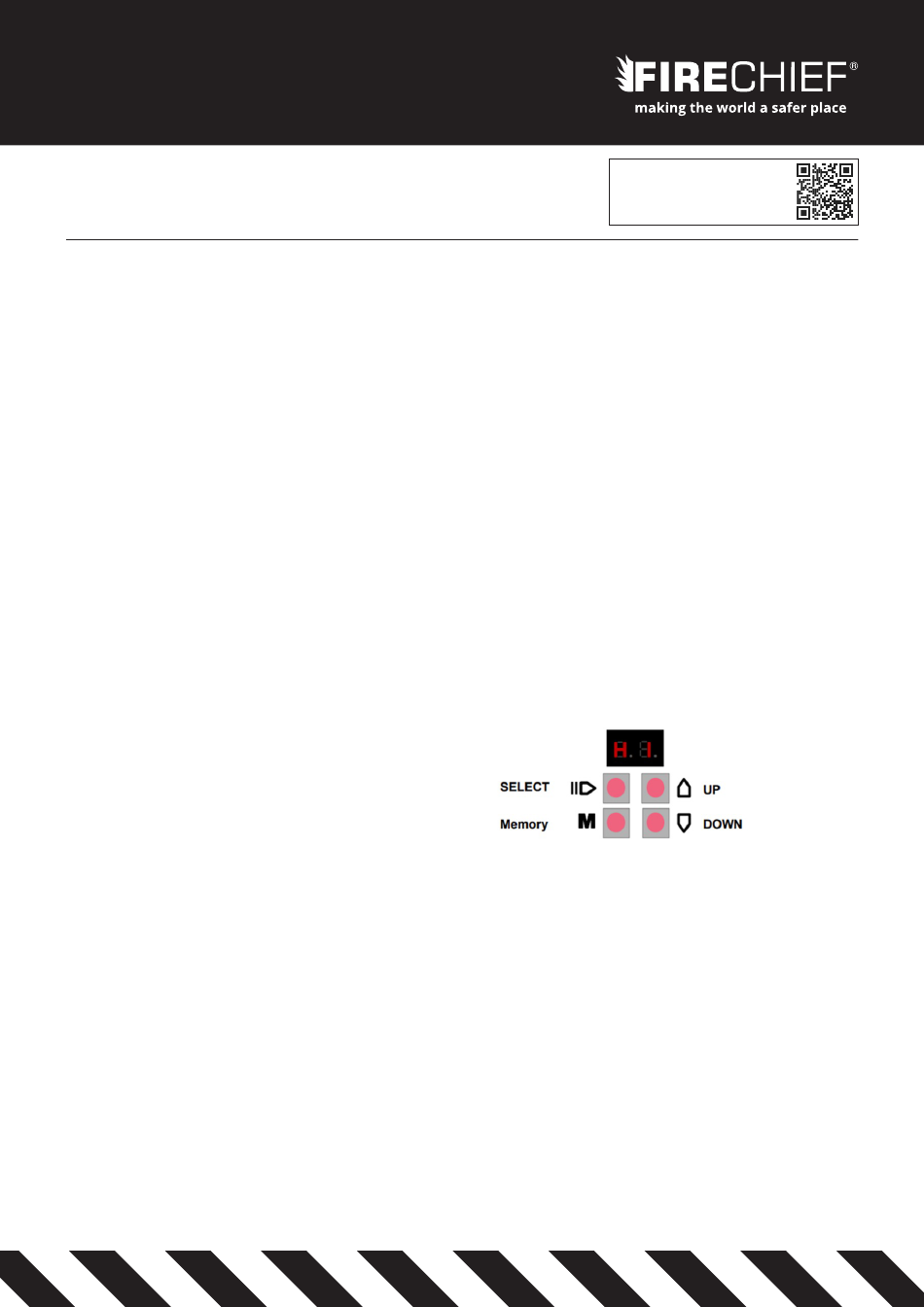

6. Use the four programming buttons below the display to configure
the parameters.
7. To fully remove the lid, unplug the ribbon cable if necessary.
HOW TO PROGRAM THE UNITS
1. Press the SELECT button twice to enter the menu.
2. The first menu option (SI) will appear, followed by its current
value (e.g., 01).
3. Use the UP and DOWN buttons to adjust the settings.
4. Press SELECT to navigate through the menu options.
5. To save a setting, press and hold the M button. The display will
show dashes moving from bottom to top, indicating the setting
has been stored.
While the default settings are suitable for most applications, it is
crucial to configure the SITE and UNIT numbers:
• All units on the system must share the same SITE number
(choose any number from 1 to 32) and ensure that every unit is
set to this same number.
• Each unit must have a unique UNIT number, ranging from 1 to
64. No two units should have the same UNIT number.
