ATF2 MODEL INFORMATION
MODEL NUMBER
ATF2-075
ATF2-100
ATF2-150
ATF2-200
ATF2-300

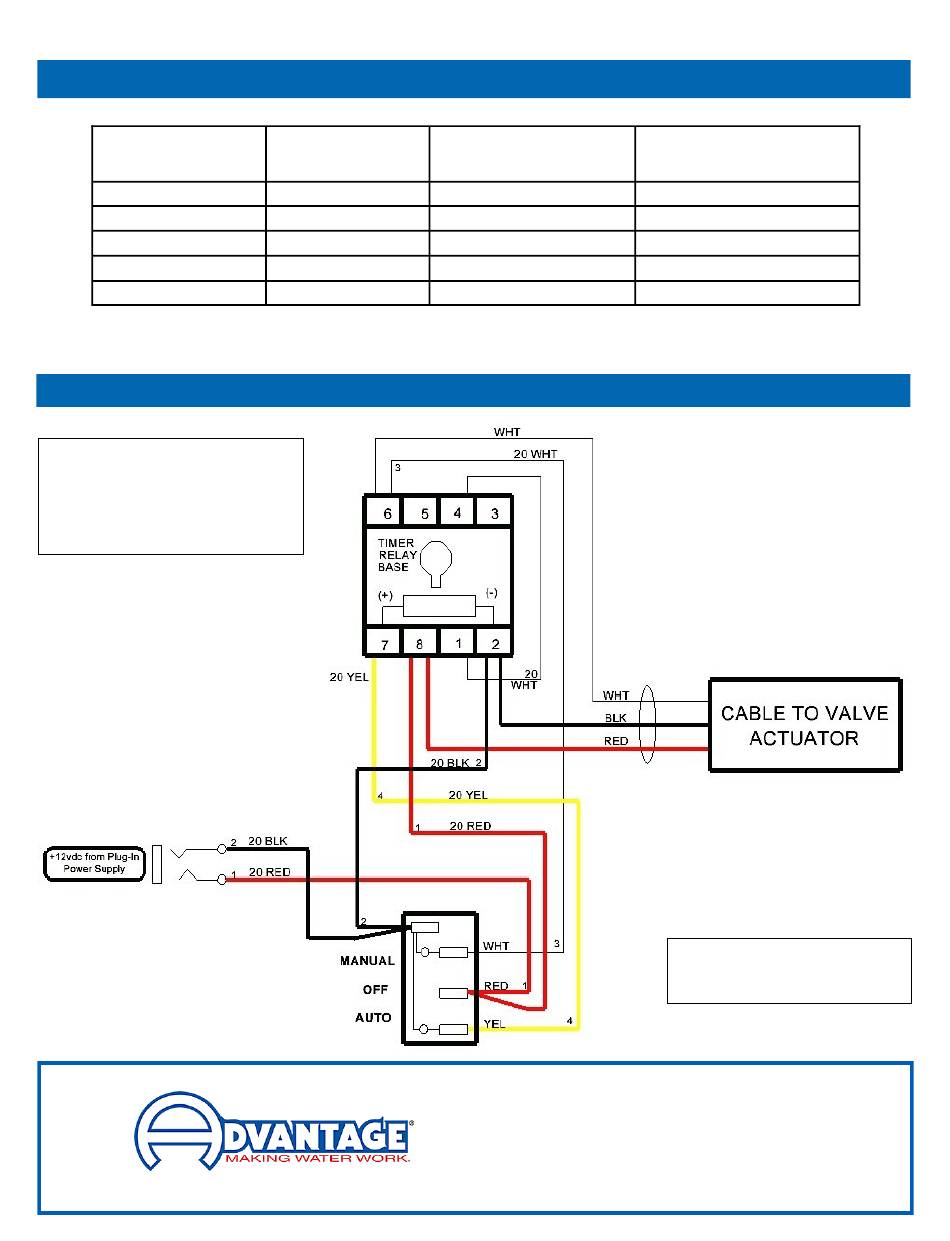

ATF2 WIRING SCHEMATIC AND POWER REQUREMENTS
POWER SUPPLY SPECIFICATION
AC/DC SWITCHING ADAPTOR
INPUT: 100-240 VAC, 50/60 Hz, .6A
OUTPUT: 12V, 2.08A, 25W MAX
ML40198 (2022)
NPT PIPE SIZE VALVE BALL/BODY
3/4"
1"
1-1/2"
2"
3" 316SS / Polypropylene
5 of 5
316SS / Nylon
316SS / Nylon
316SS / Nylon
316SS / Nylon
525 East Stop 18 Road
Greenwood, IN 46142
Ph: (317) 887-0729
www.advantageengineering.com
MAXIMUM PRESSURE
150 PSI @ 70 deg. F
150 PSI @ 70 deg. F
150 PSI @ 70 deg. F
150 PSI @ 70 deg. F
100 PSI @ 70 deg. F
Illuminated Rocker Switch
AUTO - Valve operates on Timer
MANUAL - Valve opens Momentary
REV. 6/28/22
