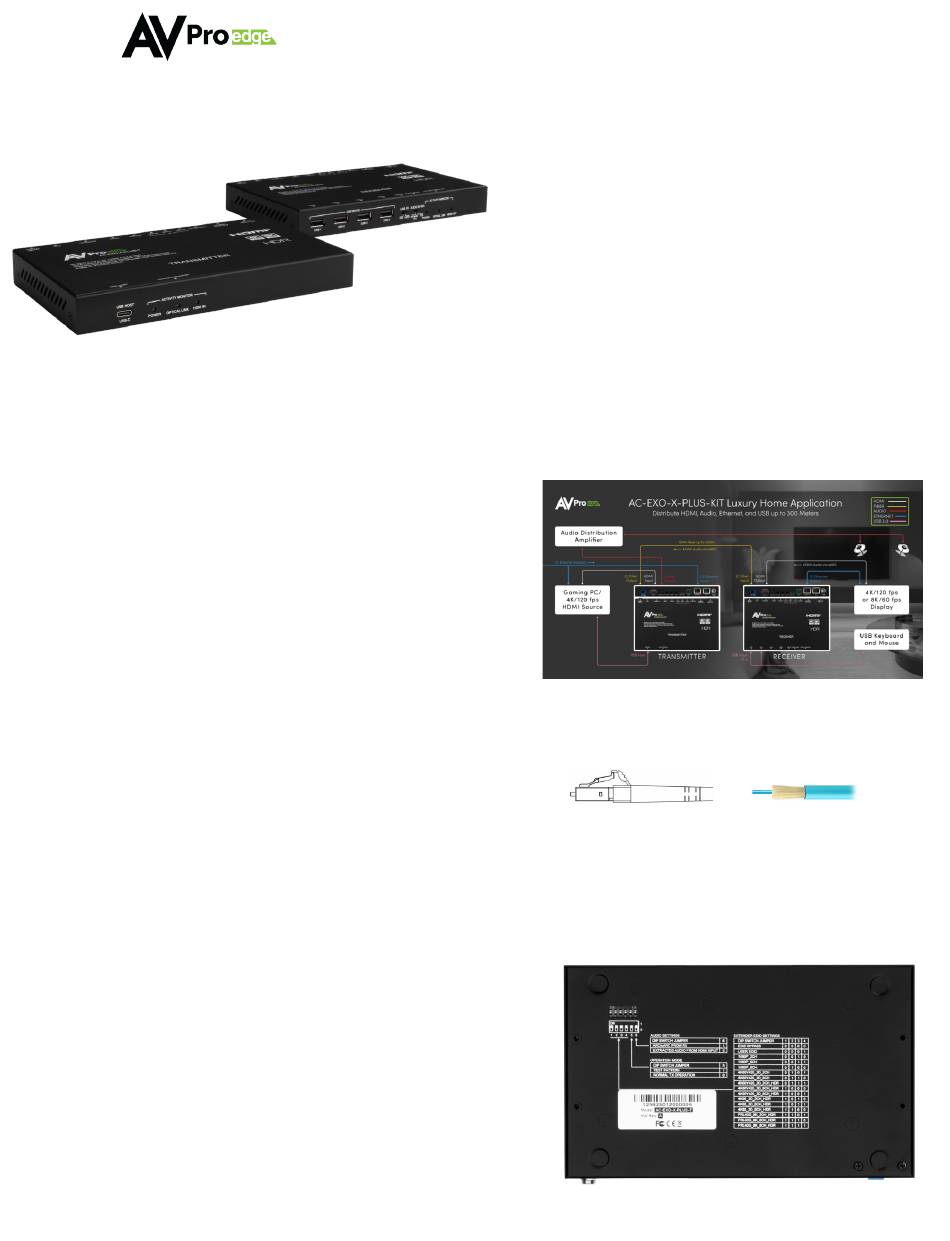

8K Fiber Op+c Extender Kit
Descrip)on
The AC-EXO-X-PLUS-KIT is a 48Gbps transmi=er and receiver pair
that extends HDMI 2.1 signals up to 8K 60Hz 4:2:0 or 4K 120Hz 4:4:4
with 7.1 audio over simplex mulRmode fiber up to 300 meters (984
W). It offers features like Auto Low Latency Mode (ALLM), Variable
Refresh Rate (VRR), 16 EDID presets, auto-scaling HDMI outputs, and
a built-in test pa=ern. AddiRonal capabiliRes include 1Gbps
Ethernet, ARC/eARC, USB 2.0 (350 Mbps) for KVM, and bidirecRonal
IR and RS-232 control. With HDCP 2.3 support and reliable
performance, this kit ensures high-quality AV transmission for
advanced setups.
Power Connec)ons
Fiber opRc cables do not carry an electrical charge and cannot supply
power from one unit to another. Here are the recommended
soluRons to power both units.
First, power either the transmi=er or receiver with the provided 48V
power supply. Next, power the other unit using one of the following
opRons listed below:
1. USB charger brick to USB-C input
2. Power output to power input with 18-2 cable*
3. Sink (TV or AVR) USB-A port to USB-C input
*18 AWG 2 Conductors Cable is not supplied
Note: The AC-EXO-X-PLUS-KIT must be powered from both units for complete operaCon.
Quick Start Guide
Quick Install
1 Connect the 48V power supply to the Power In port on
either the transmi=er or receiver.
2 Power the other device using one of the opRons listed in
the Power ConnecRons secRon.
3 Connect the transmi=er's Opt. Fiber LC / TX port to the
receiver's Opt. Fiber LC / RX port with a simplex mulRmode
fiber opRc cable terminated with LC connectors.
4 Connect the HDMI source device to the HDMI In port on
the transmi=er with an HDMI cable.
5 Connect the HDMI output device to the HDMI Out port on
the receiver with an HDMI cable.
Fiber Op)c Cables
For maximum performance, OM3 Cleerline SFF™ fiber opRc
cabling is recommended. LC (Lucent) connectors must be used.
LC Connector
EDID Se;ngs
EDID management can be done using dipswitches 1, 2, 3, and
4 located on the transmi=er (AC-EXO-X-PLUS-T). Flip the
dipswitches up ("on" or "1") or down ("off" or "0) to select the
corresponding EDID sekng.
AC-EXO-X-KIT
Cleerline SFF™ OM3 mulCmode Fiber

Advertisement

loading
Need help?

Need help?

Do you have a question about the AC-EXO-X-KIT and is the answer not in the manual?

Questions and answers

Related Manuals for AVProEdge AC-EXO-X-KIT

Summary of Contents for AVProEdge AC-EXO-X-KIT

  • Page 1 Quick Start Guide 8K Fiber Op+c Extender Kit AC-EXO-X-KIT Quick Install 1 Connect the 48V power supply to the Power In port on either the transmi=er or receiver. 2 Power the other device using one of the opRons listed in the Power ConnecRons secRon.
  • Page 2 RS232 CONTROL (THROUGH 3 PIN TERMINAL BLOCK OR USB C) To control via RS232, the 3 Pin Terminal Block or a USB data cable with a USB C connector can be used. 57600, 8, 0, 1, 0 Audio Extrac-on/Extension This feature extracts up to 8-channel audio from the source device and sends it to a separate amplifier or AVR. Both the Transmi=er and Receiver have an AUDIO dipswitch that is used to select where the audio is coming from.
  • Page 3 AC-EXO-X-PLUS-R (Receiver) Note: You can extract audio at the Transmi=er via the TOSLINK port. The source of the audio can either be HDMI (ARC) or you can input via the TOSLINK port on the Receiver. TransmiMer Audio Se;ngs EXTRACTED AUDIO FROM HDMI INPUT OFF/DOWN ARC/eARC FROM RX: Dipswitch ON/UP Extract Audio from HDMI Input (TOSLINK Output Only): If the audio is coming from the Transmi=er’s HDMI IN port, flip dipswitch number 6 on the underside of the Transmi=er into the ON/UP posiRon.
  • Page 4 RECEIVER AUDIO SETTINGS AUDIO IN SELECT DIPSWITCH POSITION ARC/eARC SENT BACK TO TX IS FROM TV: ARC/eARC(TV) LeW Switch PosiRon ARC/eARC SENT BACK TO TX IS FROM TOSLINK INPUT: TOS/ Right Switch PosiRon Send Audio to TransmiFer from Receiver’s HDMI ARC/eARC: If the audio is coming from the Receiver’s HDMI OUT ARC/eARC port, flip the AUDIO IN SEL dipswitch on the Receiver to the ARC/eARC(TV) or LeW posiRon.

  • Page 5: Troubleshoo-Ng

    Verify Power – Check the POWER light is solid blue on the front panel of both the transmiMer and receiver. This indicates there is power connected and present on the devices. Note: The AC-EXO-X-KIT must be powered from both units for complete operaTon. See Power ConnecTons.
