Page 3: First Steps
1. FIRST STEPS Congratulations on your purchase of the ELITE model CC automatic circular knife grinder machi- Please read this guide before you begin. The CC allows an automatic circular blades and counter-blades sharpening either in sharpening mode or production of same series mode. It incorporates a programmable control panel with a CNC axis and two manual axes which allows a large variety of sharpening configurations. -
Page 4: Safety Regulations
The ELITE Machines of the CC model range have been designed for the grinding of the circulares blades from ø230 to 800 mm, excluding any other type of operation. - Page 5 These warnings do not include all possible risks that improper use of the machine could cause. For this reason, the operator must proceed with prudence and observing the rules. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 6 Use of the machine by untrained persons. • Serious failures in scheduled maintenance. • Unauthorized interventions or modifications. • Use of non-original spare parts. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
-
Page 7: Declaration Of Conformity
2.3.Declaration of conformity The company hereby ELITE Machines, SLU C/Joan Oró, 27 ES-08635 Sant Esteve Sesrovires declares that the product indicated below, based on its conception and construction, as well as the version put on the market by our company, complies with the mandatory basic health and safety re- quirements of the CE directive. -
Page 8: Technical Data
? x ? x ? mm. Machine dimensions 740 kg. ? Machine weight REFRIGERATION EQUIPMENT 220 liters Tank capacity Up to 60 liters/minute Coolant flow rate Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es... - Page 9 Device for production of equal diameter saw blades. • Machine closed by half enclosure. • Prepared for connection to a machine filtration system or a centralized filtration sys- tem. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 10 4.TRANSPORT The ELITE CC is delivered packed in a wooden crate. During all transport and transfer, the machine must be kept in its original vertical position, any variation in this position may lead to the loss of the guarantee. Machine model...
- Page 11 Once the packaging has been opened, remove the fixing stops from the feet of the machine. Before connecting the machine, remove any protection that the machine may have to protect the components during transport. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
-
Page 12: Installation
Remember: before connecting the machine, remove any protection that the machine may have to protect the components during transport. WARNING: The machine must not be used under any circumstances by unqualified or unauthorized personnel. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es... -
Page 13: Electrical Connection
The direction of rotation of the motors must be checked by turning the pump motor on and check that it turns in the correct direction. ELITE does not assume any responsibility in the event of an incorrect electrical installation that may cause a malfunction of the machine and even personal or material damage. -
Page 14: Main Components Of The Machine

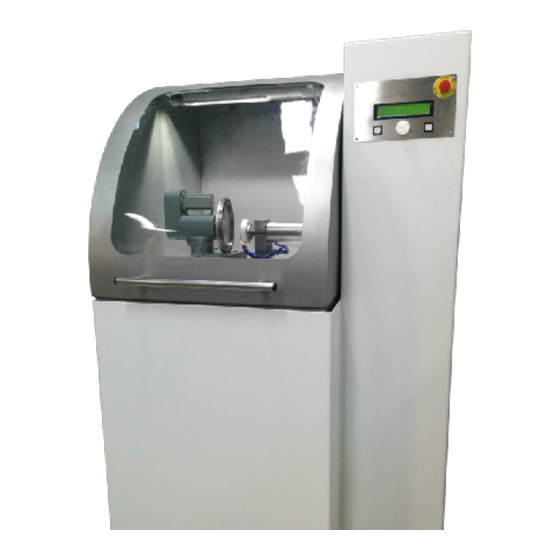

5.3.Main components of the machine The grinding machine consists of the following parts: Height Supplement for larger saws (optional) Spindle Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es... - Page 15 5.3.Main components of the machine Electrical cabinet LCD display Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 16 5.3.Main components of the machine Main switch Safety device Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
-
Page 17: Control Panel
5.4.Control panel EMERGENCY STOP LEFT AXIS MENU SELECTOR RIGHT AXIS Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es... -
Page 18: Grinding Operation
(Fig. 3 See G 1) and grind speed option for roughing expressed in RPM (Fig. 3 See RPM 9000). Select the parameters required for the program desired by the operator. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es... - Page 19 Rotary speed of the knife (RPM cuchilla): expressed on screen in RPM blade. (See fig. 4) Choose the option desired by the operator. FIGURE 5 Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 20 FIGURE 6 Finally, you should approach the blade until it rubs against the grinding wheel. Now you can start the shar- pening process. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
-
Page 21: Production Operation
See G 2) and wheel speed option for finish expressed in RPM (Fig. 8 See RPM 4500). Select the parameters required for the program desired by the operator. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es... - Page 22 This process will only be performed on the first blade, for the following blades, it will copy exactly the same process followed on the first blade. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 23 Once the parameters in figure 12 are selected, select at the menu selector the Exit (Salir) option to start the automatic work cycle. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
-
Page 24: Maintenance
Check that the motors rotate in the direction indicated by the arrows, otherwise reverse the position of two of the wires in the socket. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es... -
Page 25: Accessories And Consumables
Grinding wheel 9.2.Coolant agents We recommend to use ELITE SintoCut PRO MIX or equivalent to mix with water emulsion. If you prefer to grind with oil, you can use our SintoCut PRO MD. Both coolant are available in 20 liters can or 200 liters barrel. - Page 26 Additional equipment of the machine. 9.3.1 Filtering systems Machine could be equipped with one of the following ELITE filtering systems. If your machine already has one of this systems and you need information or help, please refer to the manual of the filtering system.
- Page 27 9.3.1.2 FILTRAmaq SOLO Independent filtering system for one machine. 9.3.1.3 FILTRAmaq PRO Centralized filtering system for up to 5 machines. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 28 Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
