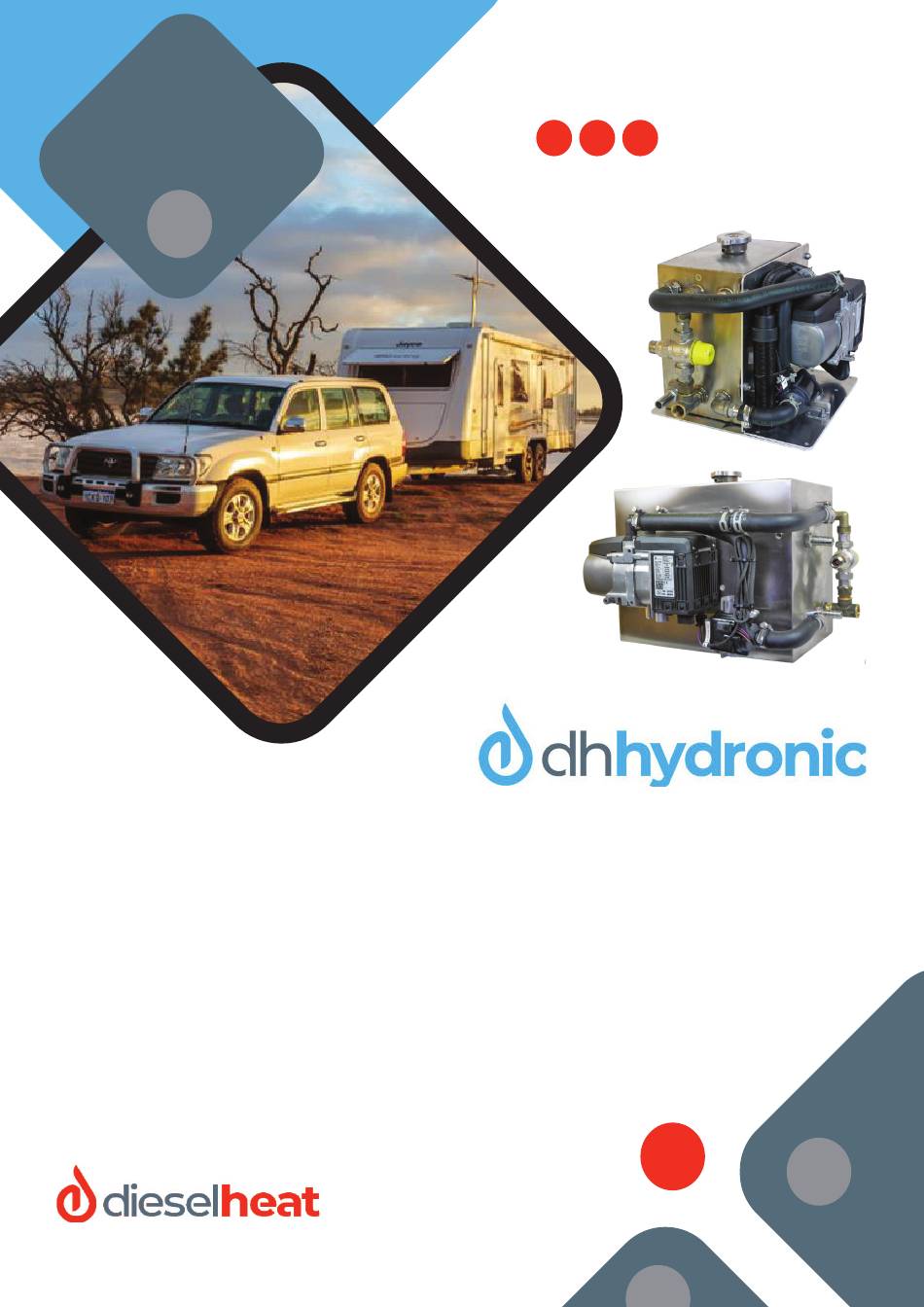

- Page 1 OPERATION MANUAL DH9, DH15, DH9DUO, DH15DUO and DH30 with Eberspacher Furnace RETAIN IN VEHICLE FOR OPERATOR REFERENCE www.dieselheat.com.au...
-
Page 2: Table Of Contents
CONTENTS Introduction Operating Considerations Typical Coolant Furnace Operation Controlling The Hot Water System and Air Temperature Display Icons & Buttons Backlight Hot Water Control Air Heating Control Keypad Lock/Unlock Parameters Setting Restarting After Running Out of Fuel Coolant Using an Eberspacher Controller Tempering Valve - Controlling Water Temperature Simple Troubleshooting... -
Page 3: Introduction
Typical Coolant Furnace Operation • Turn on the furnace using the on/off switch, the controller, or the Dieselheat thermostat (depending on your setup). • After approximately 3 seconds, the coolant circulating pump will come on. The glow pin and fuel pump will then come on and the furnace will start its combustion cycle. -
Page 4: Controlling The Hot Water System And Air Temperature
Controlling The Hot Water System and Air Temperature Display Icons & Buttons Display Fan speed: Low, Med, High and Off Room temp display Set temp display Hot water furnace is ON (if connected) Keypad is locked Buttons Hot Water Furnace: On/Off Fan speeds: Low, Med, High and Auto (only avail- able when the furnace and fan mode is selected) Power on/off... -
Page 5: Restarting After Running Out Of Fuel
CODE PARAMETERS RANGE DEFAULT Temp calibration/offset -9ºС ~+9ºС 0ºС Fan auto mode P-band range 2, 4, 6, 8, 10 Fan auto mode I-time range 1 - 60 mins 3 mins Min EC Output for Auto Fan 0 - 10 Vdc 0 Vdc Max EC Output of Auto Fan 0 - 10 Vdc... -
Page 6: Using An Eberspacher Controller
Pro Controller by default; this needs to be purchased separately. If the furnace is having trouble starting, the controller can be purchased from Dieselheat and plugged in to obtain error codes or to reset a locked out furnace. Controller connection plugs are included in the wiring loom and will generally be coiled up near the furnace when the system is installed. -
Page 7: Simple Troubleshooting
• If your fuel tank has quick disconnect fi ttings, check clear any accumulated soot. that the fi ttings are properly connected so adequate • Contact Dieselheat to arrange servicing of the fuel can fl ow. furnace. • Carefully inspect the air intake and exhaust pipes for mud wasp nests. - Page 8 Dieselheat. Upon repair of the product, Dieselheat will return the product to you at its cost. It is your responsibility to reinstall the product.
