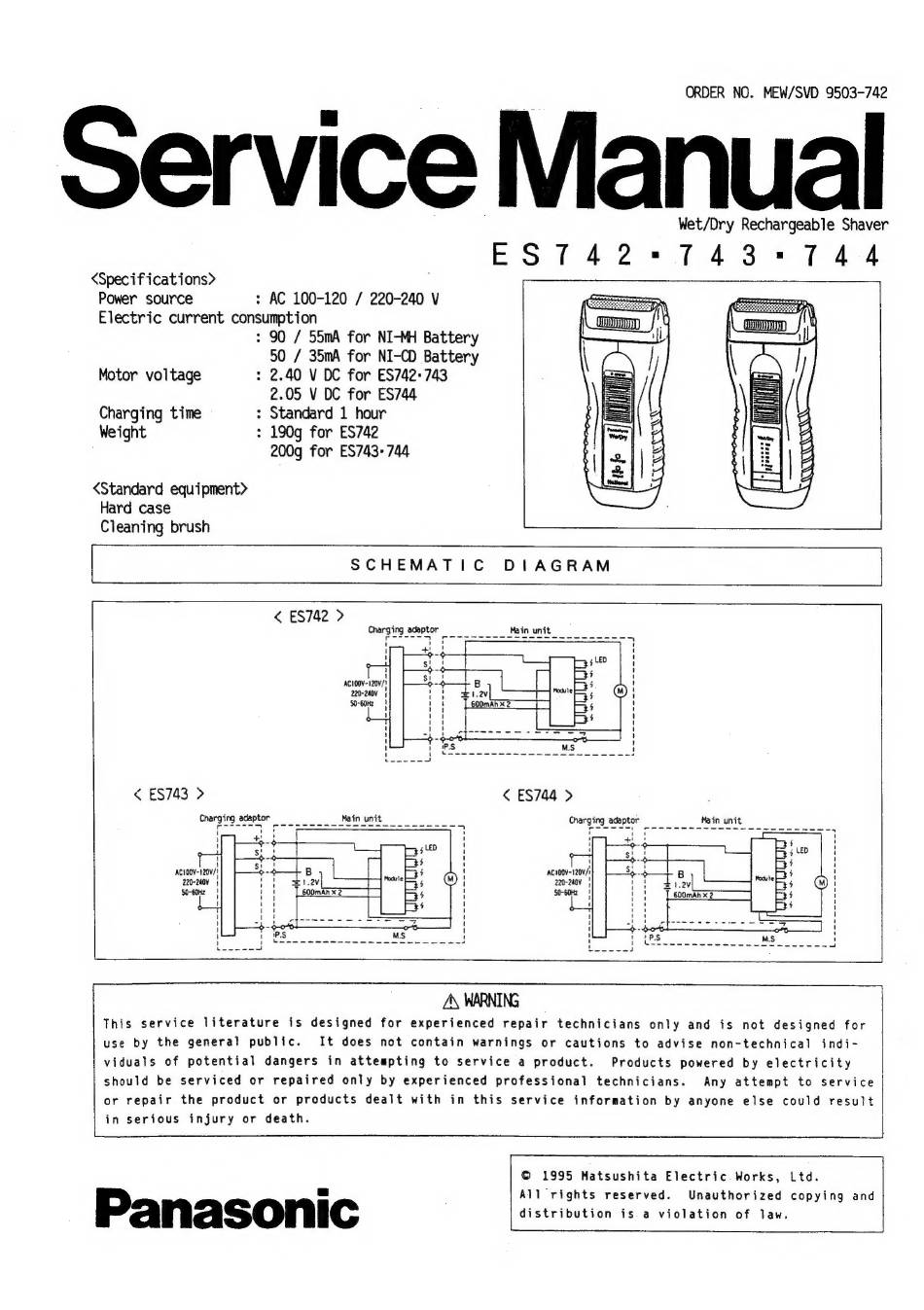

Panasonic ES742 Service Manual

ORDER NO. MEW/SVD 9503-742
Service Manual
Wet/Dry Rechargeable Shaver
EST42+*743+:744
<Specifications>
Power source : AC 100-120 / 220-240 V
Electric current consumption
: 90 / 55mA for NI-MH Battery
50 / 35mA for NI-CD Battery
Motor voltage : 2.40 V DC for ES742-743
2.05 V DC for ES744
Charging time : Standard 1 hour
Weight : 190g for E£S742
200g for ES743-744
<Standard equipment>
Hard case
Cleaning brush
| SCHEMATIC DI!tAGRAM
i < S742 >
< ES743 > < ES744 >
Charging adaptor Main unit Charging adaptor Main unit
rc '
arian fae
cai
ACIOOV-120¥/'
220-240¥
50-60Hz
ACIOOV-120V/!
220-240V
$0-60Hz |
©)
= 1.2v
600mAHXx2
1
4
Z\ WARNING
This service literature is designed for experienced repair technicians only and is not designed for
use by the general public. It does not contain warnings or cautions to advise non-technical indi-
viduals of potential dangers in attempting to service a product. Products powered by electricity
should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result
in serious injury or death.
retin 2-H o-$- 4H --
© 1995 Matsushita Electric Works, Ltd.
All rights reserved. Unauthorized copying and
distribution is.a violation of law.
Panasonic
