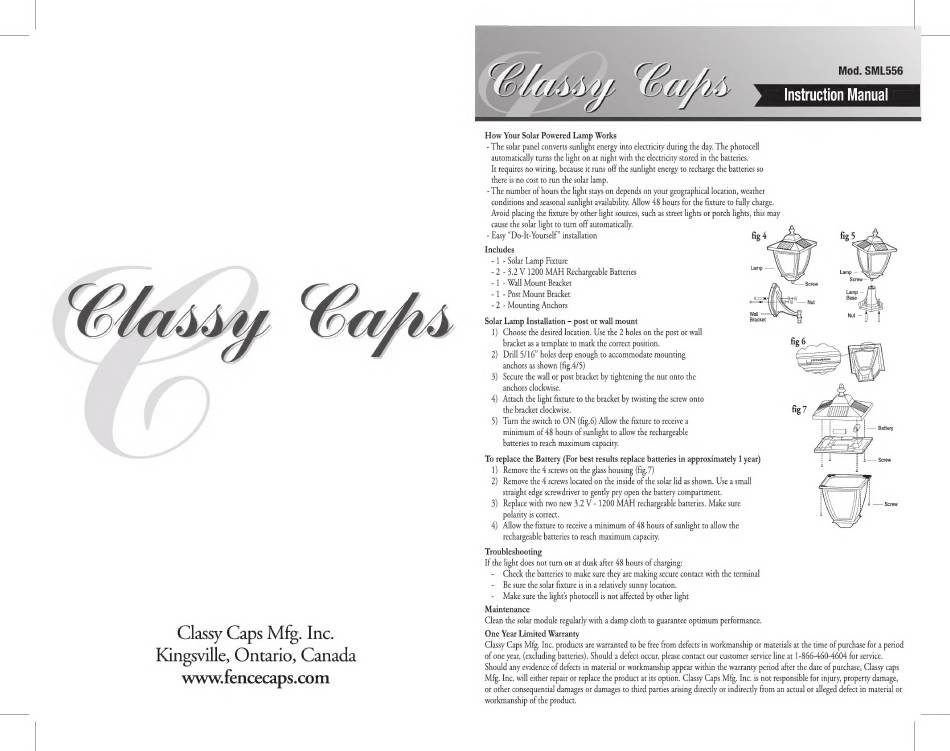

Classy Caps SML556 Instruction Manual

Mod. SML556
Instruction Manual
How Your Solar Powered Lamp Works
- The solar panel converts sunlight energy into electricity during the day. The photocell
automatically turns the light on at night with the electricity stored in the batteries.
It requires no wiring, because it runs off the sunlight energy to recharge the batteries so
there is no cost to run the solar lamp.
- The number of hours the light stays on depends on your geographical location, weather
conditions and seasonal sunlight availability. Allow 48 hours for the fixture to fully charge.
Avoid placing the fixture by other light sources, such as street lights or porch lights, this may
cause the solar light to turn off automatically.
- Easy "Do-It-Yourself" installation
figs £
SEEN
Includes
ENS.
- 1 - Solar Lamp Fixture |
- 2 - 3.2 V 1200 MAH Rechargeable Batteries
- 1 - Wall Mount Bracket
- 1 - Post Mount Bracket
- 2 - Mounting Anchors
Solar Lamp Installation - post or wall mount
1) Choose the desired location. Use the 2 holes on the post or wall
bracket as a template to mark the correct position.
2) Drill 5/16" holes deep enough to accommodate mounting
anchors as shown (fig.4/5)
3) Secure the wall or post bracket by tightening the nut onto the
anchors clockwise.
4) Attach the light fixture to the bracket by twisting the screw onto
the bracket clockwise.
5) Turn the switch to ON (fig.6) Allow the fixture to receive a
minimum of 48 hours of sunlight to allow the rechargeable
batteries to reach maximum capacity.
To replace the Battery (For best results replace batteries in approximately 1 year)
1) Remove the 4 screws on the glass housing (fig.7)
2) Remove the 4 screws located on the inside of the solar lid as shown. Use a small
straight edge screwdriver to gently pry open the battery compartment.
3) Replace with two new 3.2 V - 1200 MAH rechargeable batteries. Make sure
polarity is correct.
4) Allow the fixture to receive a minimum of 48 hours of sunlight to allow the
rechargeable batteries to reach maximum capacity.
Troubleshooting
If the light does not turn on at dusk after 48 hours of charging:
- Check the batteries to make sure they are making secure contact with the terminal
Be sure the solar fixture is in a relatively sunny location.
- Make sure the lights photocell is not affected by other light
Maintenance
Clean the solar module regularly with a damp cloth to guarantee optimum performance.
Classy Caps Mfg. Inc. products are warranted to be free from defects in workmanship or materials at the time of purchase for a period
Kingsville : Ontario ; Canada of one year, (excluding batteries). Should a defect occur, please contact our customer service line at 1-866-460-4604 for service.
Should any evidence of defects in material or workmanship appear within the warranty period after the date of purchase, Classy caps
www.fencecaps.com Mfg. Inc. will either repair or replace the product at its option. Classy Caps Mfg. Inc. is not responsible for injury, property damage,
or other consequential damages or damages to third parties arising directly or indirectly from an actual or alleged defect in material or
workmanship of the product.
