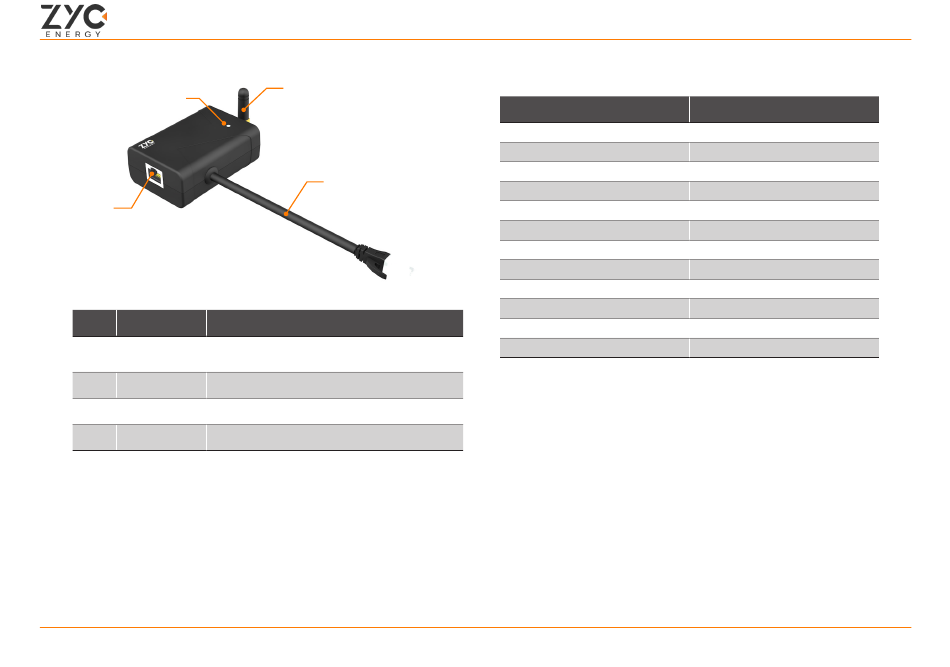

ZYC ENERGY SIMPO WiFi User Manual

④
②
S.N. Name
Connect to "IN" Port of Master battery.
①
BMS Cable
(Cable length: 50cm)
②
Ethernet Connect to router through network cable
③
Antenna Wireless WiFi Hotspot Amplifier
④
Indicator* Show the status of working mode.
* Indicator State:
• Solid OFF: Non-Connection.
• Solid ON: Local Communication (AP).
• Flash Flowly: Internet Connection (STA).
• Flash Quickly: Data in transit.
③
①
Remarks
Specification
Dimension (W x D x H)
Working Mode*
Protocol
Bands
Number of Accessed Devices
Interface
Indicator
IP Rating
Typical Consumption
Operationg Temperature Range
Operating Humidity
Communication Cable
* Working Mode Priority:
• AP(Local Access): Connect the hotspot of the SIMPO WIFI with
a mobile device to work in AP mode.
• STA(To Internet): There are two options to connect to the
internet with SIMPO WIFI.
1. Connect SIMPO WIFI to the router directly with a network cable.
2. Set up a wireless connection for SIMPO WIFI dongle through
ZYC Assist APP.
User Guide of SIMPO WiFi_V1.2
Values
98 x 54 x 30 (mm)
AP / STA
IEEE 802.11 b/g/n
2.4GHz Only
1
RJ45
LED
IP40
27 ~ 44 mA
-30℃ ~ +65℃
5% ~ 95% (Non-condensing)
Cat5 or Higher
