CUBISCAN S9 SETUP
QUICK REFERENCE GUIDE
This quick reference guide provides instructions for assembling and setting up the Cubiscan S9 for dimen-
sioning with a stretch wrap turn table. For more detailed instructions, see the Cubiscan S9 Operations and
Technical Manual.
ASSEMBLING TOWERS

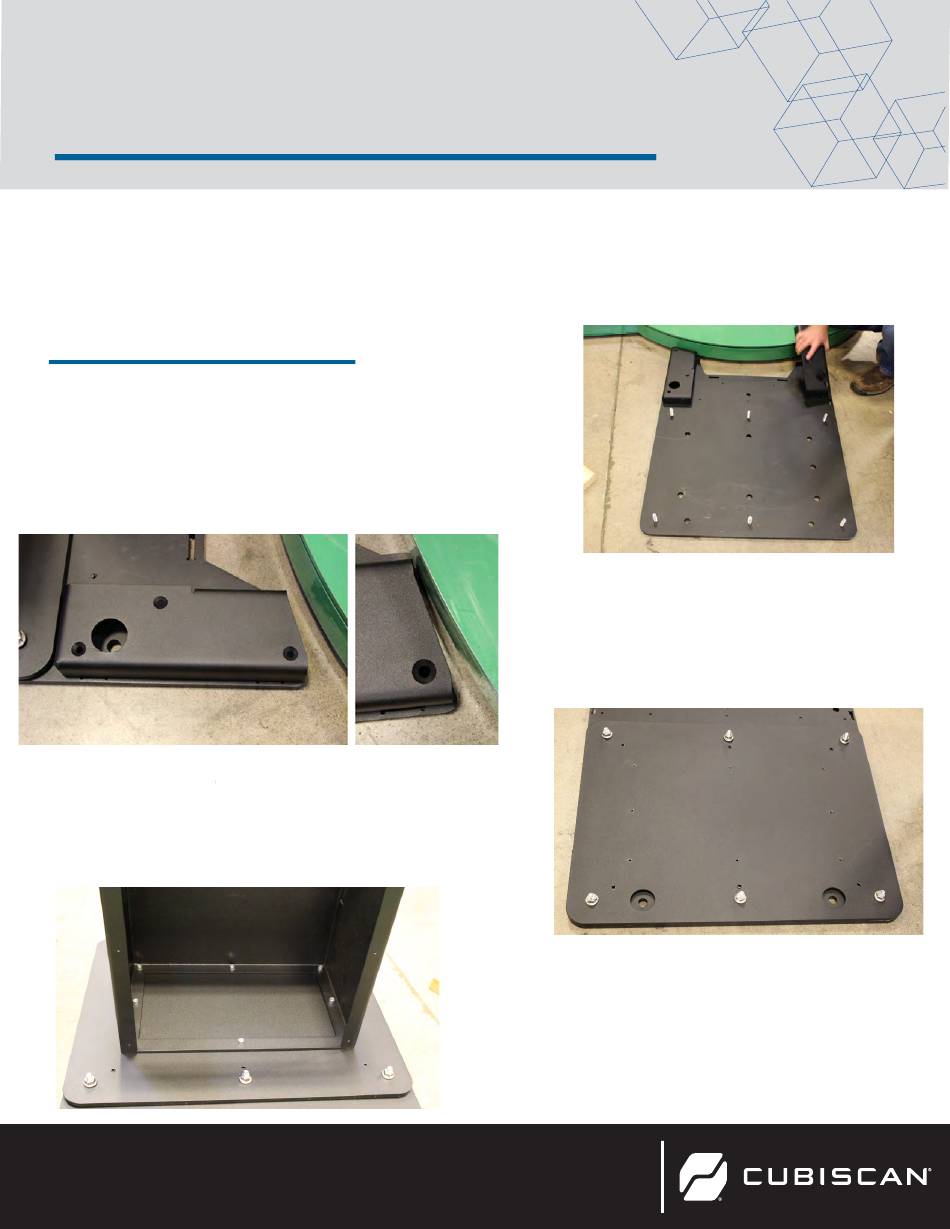

1. Uncrate the Cubiscan S9. The Cubiscan comes with
three towers that will stack on the base plate.
2. Place base plate on floor next to the stretch wrap turn
table. For ease of use, ensure the CS S9 is on the same
side as the stretch wrap machine controls.
4. Place the upper plate on the base plate, aligning the
bolts with the machined holes in the plate. The upper
plate should be positioned so the holes for bolting
the S9 to the flower are facing the outside as shown
in the figure.
3. Use the foot cover plates to help determine
the distance between the S9 and the turn ta-
ble. Do not attach the cover plates at this time.
The S9 should be within a half inch of the turn
table, but not touching.
5. Loosely secure the nuts to each of the 6 bolts.
Do not tighten the bolts until the platform is
properly leveled.
6. Place the bottom tower onto the base. Secure
with the m8 hex screws.
801.451.7000
cubiscan.com
Advertisement
Summary of Contents for Quantronix CUBISCAN S9
- Page 1 QUICK REFERENCE GUIDE This quick reference guide provides instructions for assembling and setting up the Cubiscan S9 for dimen- sioning with a stretch wrap turn table. For more detailed instructions, see the Cubiscan S9 Operations and Technical Manual. ASSEMBLING TOWERS 1.
- Page 2 1. Connect the network and control cables to the socket. Plug the socket into the side of the sensor. 2. Secure the socket by tightening the screws on either side with a 3mm allen wrench. 801.451.7000 Copyright 2019 by Quantronix, Inc. cubiscan.com All rights reserved.
- Page 3 S9. 7. With the help of another, lift the front plate of the upper tower into place and secure it with screws. Be careful not to bend the metal sheet. 801.451.7000 Copyright 2019 by Quantronix, Inc. cubiscan.com All rights reserved.
-
Page 4: Proximity Sensors
6. Set the bottom tower front cover and secure with screws. Ensure all cables are safely tucked inside and none are pinched or exposed. 7. Finally, check leveling and adjust as needed. 801.451.7000 Copyright 2019 by Quantronix, Inc. cubiscan.com All rights reserved. - Page 5 Once the S9 is properly positioned and leveled, the unit may be bolted into the floor through the machined holes provided in the base. This will prevent the S9 from shifting during use and provide greater accuracy and consistency of data. 801.451.7000 Copyright 2019 by Quantronix, Inc. cubiscan.com All rights reserved.
