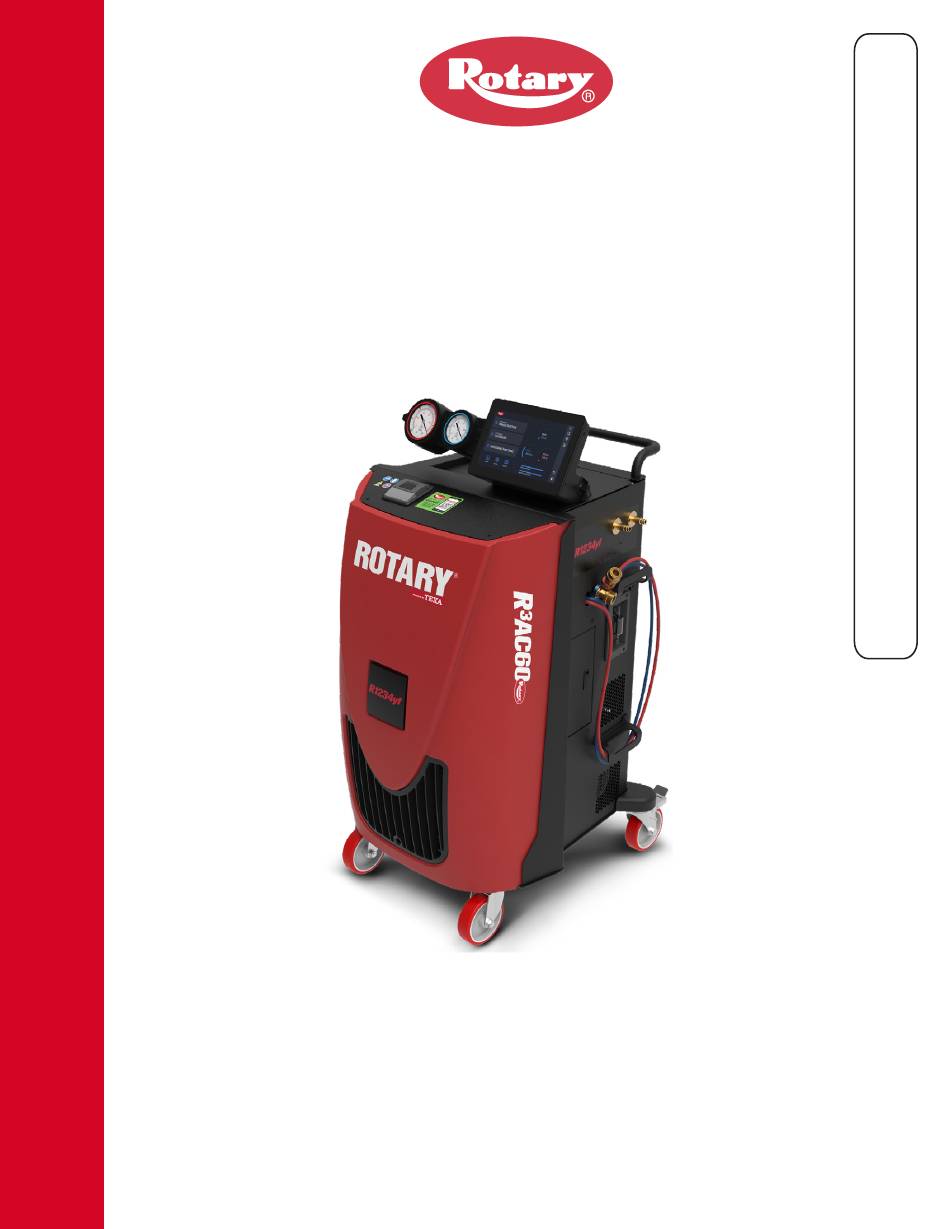

AC60

CO12308.2

IN20976

REV. - 8.28.23

Table of Contents

Need help?

Do you have a question about the R3AC60 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rotary R3AC60

Page 2 ENGLISH (US)............5...
Page 3 Notes...
Page 4: Table Of Contents
4.9.2 Refrigerant and System Conditions..............14 4.9.3 Recycling Capacity....................15 4.9.4 In General......................15 4.10 Additional Safety Rules.................16 5 NORMATIVE INFORMATION..............19 6 OPERATION OF THE RADIO DEVICES...........20 7 R3AC60......................21 8 DESCRIPTION..................22 9 INSTALLATION..................26 9.1 Unpacking the Device..................26 9.2 Transportation Lock Removal.................27 10 HANDLING....................28 10.1 Moving the Device..................28...
Page 5 13.1 How to Fill the Internal Tank.................32 13.2 How to Load the Paper into the Printer............32 13.3 Initial Configuration..................34 13.3.1 Demo Mode......................34 14 COMMUNICATION..................35 14.1 Wi-Fi......................35 14.2 Bluetooth.......................36 14.3 USB......................36 15 User Instructions..................37 16 UPDATING....................38 17 MAINTENANCE..................39 17.1 Ordinary Maintenance..................40 17.1.1 Dehydrator Filter Replacement................41 17.1.2 Mechanical Filter Replacement................43 17.1.3 How to Replace the Vacuum Pump Oil..............48...
Page 6: Revision Of The Manual
AC60 1 REVISION OF THE MANUAL This document is the technical manual for the product:R AC60 Document Revision Number:01 Date of Issue:14/02/2023 Read this manual before using the product. Read the documents carefully whenever the General Risk symbol appears.
Page 7: Introduction
2 INTRODUCTION Dear Customer, thank you for choosing this product for your workshop. We are certain that you will get the greatest satisfaction from it and receive a great deal of help in your work. Please read through the instructions in this manual carefully and keep it for future reference. Reading and understanding the following manual will help you to avoid damage or personal injury caused by improper use of the product to which it refers.
Page 8: Legend Of The Symbols Used
3 LEGEND OF THE SYMBOLS USED Toxic material hazard Risk of crushing hands Explosive material hazard Floor level obstacle warning Electric shock hazard Laser beam hazard Electromagnetic field hazard Low temperature danger - freezing Flammable material hazard General Risk Hot surface hazard Read instructions Corrosive substance hazard Safety glasses required...
Page 9: Safety Rules
4 SAFETY RULES The technology used for the design and production control of the R AC60 charging stations make them simple, reliable and safe to use. The personnel in charge of using the R AC60 charging stations are required to follow the general safety rules, use the charging stations for their intended use only and keep them properly, as described in this manual.
Page 10: General Rules
• Disposal of the equipment: removal of the refrigerant destined to be stored in order to be disposed of later (destroyed or transferred to waste disposal plants). • Vacuum: the evacuation of non-condensable gases and humidity from the A/C system exclusively through a vacuum pump.
Page 11 Safety Measures: • The operator must avoid inhaling the vapors of the refrigerant liquids; use appropriate protection when required. • The operator is required to wear appropriate safety glasses and gloves that prevent direct contact with the refrigerants. • Do not use the equipment near open flames, sparks, hot surfaces: the refrigerant decomposes at high temperatures, letting off toxic chemical substances that are harmful to people and the environment.
Page 12: Device Safety
4.5 Device Safety The equipment was designed in compliance with the regulations on pressure equipment and assemblies, evaluating and reducing the risk where present and making appropriate considerations. However, vibrations, pressure variations or excessive temperatures, especially if cyclic, should be avoided. Safety Measures: •...
Page 13: Safety Devices
The equipment was designed to be mechanically sturdy and suitable for use in a workshop. Careless use and excessive mechanical strain may compromise its efficiency. Safety measures: • Do not drop, shake or bump the equipment. • Do not place the equipment where it could fall into water. Avoid any contact with water. •...
Page 14: Safety Precautions To Follow When Using The Refrigerants
4.7 Safety Precautions to follow when using the Refrigerants The refrigerant R1234yf has been classified as flammable. Safety Measures: • See the safety sheet of this refrigerant to store it correctly. 4.8 Workplace Safety The equipment is designed to work at a maximum altitude of 1000 m / 3281 ft above sea level, with an operating temperature between 5 °C / 41 °F and 40 °C / 104 °F and a maximum humidity of 50% at 50 °C / 122 °F.
Page 15: Recycling Capacity
If the history of the system is not known, the refrigerant recovered must at least be recycled before it is reused. When the contamination level is not known, you may carry out some preliminary checks with the kit specifically for acidity and humidity measurements. 4.9.3 Recycling Capacity The filtering systems of the device must be replaced regularly in order to guarantee device efficiency.
Page 16: Additional Safety Rules
4.10 Additional Safety Rules This manual contains different types of safety messages directed to the user and that the operator must follow. These messages are defined as follows: This message indicates that you may risk severe personal DANGER injury or death. This message indicates that you may risk damaging CAUTION people, things or the charging station.
Page 17 AVOID BREATHING A/C REFRIGERANT AND LUBRICANT VAPOR OR MIST Exposure could irritate eyes, nose and throat. To remove refrigerant from the A/C system, only use equipment certified for the type of refrigerant being removed to meet the requirements of SAE J2788. CAUTION - This equipment should be used in locations with mechanical ventilation that provides at least four air changes per hour.
Page 18: Operating Note
Further safety and medical information can be obtained from the lubricant and refrigerant manufacturers. OPERATING NOTE: At temperatures above 120 °F / 49 °C, wait 10 minutes between any recovery operation.
Page 19: Normative Information
The Declaration of Conformity is available in paper format along with the other documents provided with the equipment. A copy of the Declaration of Conformity can be found at: Rotary, 2700 Lanier Drive, Madison, IN 47250, USA AC60 meets the following requirements: •...
Page 20: Operation Of The Radio Devices
The Bluetooth and Wi-Fi interfaces look for compatible electronic devices according to the radio signal they emit and establish a connection between them. Rotary tools select and only prompt you with compatible Rotary devices. This does not exclude the presence of other sources of communication or disturbance.
Page 21: Main Features
AC60 The R AC60 charging stations are designed for servicing A/C and climate control systems on cars, trucks, buses and tractors. The R AC60 stations are high-performance and capable of carrying out the following operations in complete safety: recovery, recycling, vacuum, system refilling and A/C system performance check.
Page 22: Description
8 DESCRIPTION 1. Low Pressure gauge (LP) 2. High Pressure gauge (HP) 3. Printer * 4. Cylinder lock for transport 5. Controller Touchscreen Bluetooth and Wi-Fi communication modules 6. Cylinder compartment door 7. Castors (*) Optional...
Page 23 8. USB connector compartment 9. Handle 10. GAS:HP/LP couplers for gas R1234yf 11. HP/LP quick couplers 12. Refrigerant Identifier 13. Service door:Dryer filter 14. Castors with brakes...
Page 24 15. Mechanical filter cap 16. DRAIN:airtight bottle for recovered oil. 17. Service door:heating 18. Pneumatic connection 19. Tank cap...
Page 25 20. Tank 21. Main switch 22. Safety fuses 23. Power socket 24. Power cable 25. Power cable holder 26. Pump oil level sight...
Page 26: Installation
9 INSTALLATION This chapter describes the procedures required to install the device properly. The installation must be performed by qualified personnel only, carefully following the instructions provided in this manual. The device is provided with the following: • Technical Manual: it contains the description of the device, user instructions to guarantee a correct use and correct maintenance.
Page 27: Transportation Lock Removal
9.2 Transportation Lock Removal On the equipment there is a screw that blocks the internal tank's load cell to preserve its integrity during transportation. This screw must be removed before starting to use the equipment. Proceed as follows: 1. Stand in front of the equipment. 2.
Page 28: Handling
10 HANDLING This chapter describes the operations required to properly handle and position the equipment for use. 10.1 Moving the Device The equipment must be moved on its own wheels. The equipment was specifically designed and created to lower the center of gravity, so the heavier components were placed on the bottom;...
Page 29: Positioning
10.2 Positioning The device must be placed near the A/C system that must be checked; make sure it is on a flat surface and in an appropriate environment, as specified in the safety regulations in this manual. Once the device has been positioned, we suggest locking the wheels with the specific mechanical brakes the wheels are equipped with.
Page 30: Power Supply
11 POWER SUPPLY The equipment is powered by the mains through a specific power cable. The equipment must be connected to the mains through the supplied specific power cable; respect the applicable voltage, frequency and power values. The voltage, frequency and power values that can be applied can be found on the tag located near the main switch.
Page 31: Power On/Off
12 POWER ON/OFF The equipment can be powered on and off using the main switch located on the left side of the charging station. To turn on the equipment, set the main switch to the I (ON) position. To turn off the equipment, set the main switch to the O (OFF) position. Do not disconnect the equipment from the mains by unplugging the power cable either from the equipment or from the socket.
Page 32: Setting Up Before Using
13 SETTING UP BEFORE USING This chapter describes the maintenance operations required for setting up the equipment. 13.1 How to Fill the Internal Tank The internal tank in the device is empty upon delivery. You must carefully read and understand this Operating Manual to perform the provided instructions correctly.
Page 33 1. Paper compartment opening lever 2. Paper compartment cover 3. Printer Status LED - GREEN 4. PAPER FEED button 5. ON/OFF button The buttons on the printer have the following functions: Key Name Function PAPER FEED It allows the paper to come out. ON/OFF It allows setting the printer on on-line/off-line mode.
Page 34: Initial Configuration
The equipment locks automatically at the end of the cycle and can no longer be used. To unlock the equipment, you must activate the product online. Alternatively, the equipment can be activated manually, requesting the unlock code via Rotary Service Code.
Page 35: Communication
14 COMMUNICATION The charging station's controller integrates the following: • Wi-Fi module • Bluetooth module The charging stations also have a USB connector. 14.1 Wi-Fi The Wi-Fi module built into the controller allows connecting the charging station to the workshop's Wi-Fi network. The Wi-Fi connection to the workshop's network allows the following: •...
Page 36: Bluetooth
14.2 Bluetooth The Bluetooth module built into the controller allows connecting the charging station to accessories such as: • A/C system efficiency testing kit; The Bluetooth connection must be configured through the software functions. Proceed as follows: 1. Turn on the charging station. 2.
Page 37: User Instructions
15 User Instructions The software in the charging stations allows selecting the vehicle to work on choosing among the ones in the database and launching all the functions required in order to recharge and check the vehicle's A/C system. Monitor the equipment at all times during the operating phases, making sure to wear appropriate personal protective equipment.
Page 38: Updating
We recommend using the provided USB flash drive. Proceed as follows: 1. Download the software from the ROTARY website. 2. Install the software on a PC equipped with an Internet connection. 3. Connect the provided USB flash drive to the PC.
Page 39: Maintenance
17 MAINTENANCE This chapter describes the maintenance operations required for the device. In general: • carefully follow the instructions provided in this manual; • keep the product clean using a slightly damp cloth (do not use solvents or corrosive products); •...
Page 40: Ordinary Maintenance
17.1 Ordinary Maintenance Scheduled maintenance is made up of a series of operations that must be carried out periodically. Specific messages will appear on the screen each time a maintenance operation has expired and needs to be carried out. Maintenance operation Frequency Dehydrator Filter Replacement When prompted by the device.
Page 41: Dehydrator Filter Replacement
17.1.1 Dehydrator Filter Replacement The filter must be replaced when you are prompted to do so by the device. There could be accidental refrigerant leaks while replacing the filter. Carefully follow the instructions provided below to avoid the refrigerant from getting into the atmosphere. Wear appropriate protective glasses and gloves when replacing the filter.
Page 42 6. Use the tool provided with the equipment to loosen the filter. As an alternative to the provided tool, you can use a strap/chain wrench of a suitable size. 7. Manually unscrew the filter completely, being careful to hold it throughout the operation.
Page 43: Mechanical Filter Replacement
17.1.2 Mechanical Filter Replacement The mechanical filter when the dehydrator filter is replaced. There could be accidental refrigerant leaks while replacing the filter. Carefully follow the instructions provided below to avoid the refrigerant from getting into the atmosphere. Wear appropriate protective glasses and gloves when replacing the filter.
Page 44 The panel has a maximum opening angle that allows easily accessing the inside of the equipment. Forcing the panel beyond its maximum opening angle may damage the hinges that hold it and the wirings that connect the controller to the rest of the equipment. Do not force the panel beyond its maximum opening angle.
Page 45 6. Use an open-end wrench no.16 to unscrew the nut that connects the copper pipe to the manifold. 7. Remove the copper pipe.Replace the O- rings if they appear to be worn out. 8. Stand behind the equipment. 9. Use a magnetic hexagonal wrench no.5 to unscrew and remove the mechanical filter cap.
Page 46 Standing in front of the manifold, you can see the mechanical filter in its housing. 10. Insert a non-sharp tool of a suitable diameter on the back of the manifold through the specific hole behind the equipment. 11. Push until the mechanical filter is ejected from the front side of the manifold.
Page 47 The mechanical filter is cone-shaped and can be inserted in its housing only with the narrow part towards the manifold. • Make sure the filter is positioned properly. • Do not force the filter inside its housing. 13. Screw the mechanical filter cap back on, tightening with a torque of 8 N m / 5.9 lbf·ft. 14.
Page 48: How To Replace The Vacuum Pump Oil
17.1.3 How to Replace the Vacuum Pump Oil The oil in the vacuum pump must be replaced when you are prompted to do so by the device. You must carefully read and understand this Operating Manual to perform the provided instructions correctly. Proceed as follows: 1.
Page 49 7. Place a suitable container to recover waste oil under the oil drain hole. 8. Unscrew the oil filler cap. The oil drain cap is placed under the equipment, near the pump oil level sight. 9. Wait for all the oil to drain from the pump. 10.
Page 50: Fuse Replacement
17.1.4 Fuse Replacement If blown, the cartridge fuses [F1] and [F2] must be replaced with other fuses having the same technical features: • [F1]: Time-delay fuse 6.3x32 15A - UL198L • [F2]:Time-delay fuse 6.3x32 15A - UL198L The indicated procedure is the same for both fuses. Proceed as follows: 1.
Page 51: Periodical Checks
17.2 Periodical Checks In order to guarantee proper operation of the device we recommend checking on a regular basis the parts that are the most subject to wear. Parts subject to Check wear Service hoses Make sure there are no cuts, scratches or bulges. Make sure there are no signs of wear and that the hoses do not harden during use.
Page 52: Technical Features
18 TECHNICAL FEATURES Builder TEXA S.p.A. Brand ROTARY Model AC60 Display 10.1" TFT; 1024x600 pixel; 400CD Anti-glare Qualcomm© Adreno™ 308 Graphics Processing Unit (GPU) with 64-bit addressing Touch Capacitive touch panel, 12C interface • SC200R Series Snapdragon QCM2150 Quad-core ARM Cortex-A53 64-bit CPU @ 1.3 Ghz...
Page 53 High Pressure Ø 100 mm / Ø 3.937 in (HP) gauge Low Pressure Ø 80 mm / Ø 3.149 in (LP) gauge Tank capacity 10 kg / 22 lb Length of 3 m / 9.84 ft service hoses Filter 1 combined filter + mechanical filter assembly Compressor 12 cc...
Page 54 Sizes A) 1200 mm / 47.24 in B) 730 mm / 28.74 in C) 600 mm / 26.62 in Weight 121 kg / 242.51 lb...
Page 55: Data Plate And Labels
19 DATA PLATE AND LABELS SAFETY INDICATIONS...
Page 57 2. PROPOSITION 65 3. FCC ID 4.DATA PLATE 5. TECHNICAL ASSISTANCE CONTACTS 6. FUSE INDICATIONS...
Page 58: Hydraulic Diagram
20 HYDRAULIC DIAGRAM...
Page 59: Disposal
21 DISPOSAL Below you will find information on how to properly dispose of the device. 21.1 How to Dispose of the Device To dispose of the device proceed as follows: 1. Ask assistance personnel to collect all the refrigerant in the internal circuit, making sure the internal storage tank is emptied as well.
Page 60: Contacts
Additional information at rotarylift.com ©VEHICLE SERVICE GROUP ® Printed in U.S.A., All Rights Reserved. Unless otherwise indicated, ROTARY, VEHICLE SERVICE GROUP , DOVER and all other trademarks are property of Dover Corporation and its afﬁliates. ® Product speciﬁcations, part numbers, images and component descriptions are subject to change without notice or liability.
