Summary of Contents for AIBASE ADC-AI-S300
- Page 1 AIBase ADC-AI- S300 Operation & Installation Guide LOW ENERGY AUTOMATIC SWING DOOR OPERATOR These installation instructions are solely for use by professional installers and are not intended to be handed over to the end user.
-
Page 2: Table Of Contents
ADC-AI- S300 Installation Guide Table of Contents 1. Pre-Installation Information ................1 1.1. Parts list ...................... 1 1.2. Required Tools ..................... 2 2. S300 Installation Process ..................2 2.1. Unpack and Remove Cover ................2 2.1.1. Door Operator Direction Determine ............3 2.1.2. -
Page 3: Pre-Installation Information
ADC-AI- S300 Installation Guide 1. Pre-Installation Information 1.1. Parts List • NOTE: Mounting hardware for the header unit IS NOT INCLUDED... -
Page 4: Required Tools

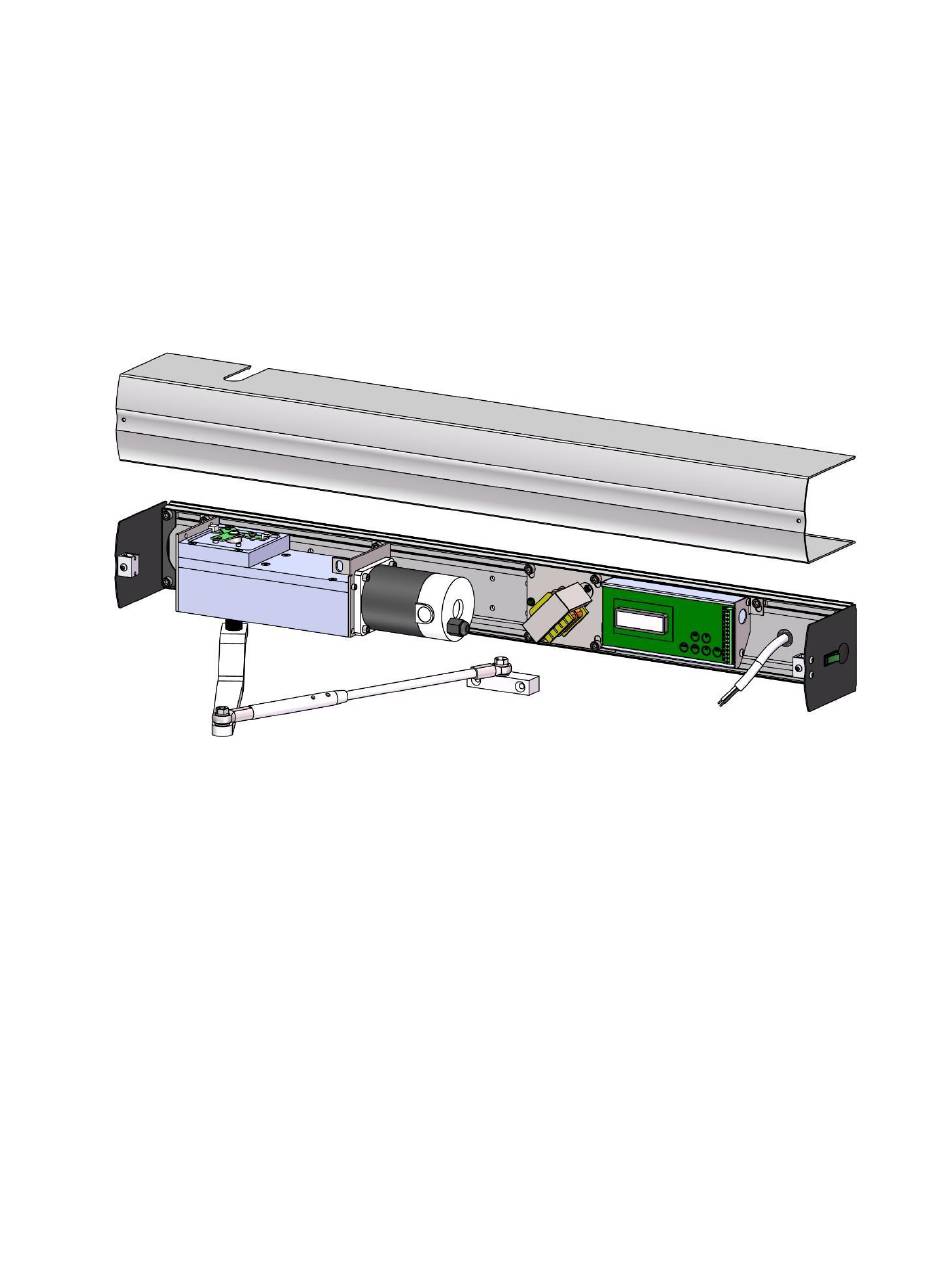

ADC-AI- S300 Installation Guide Figure 1-1 Part Identification 1.2. Required Tools Figure 1-2 Required Tools 2. S300 Installation Process 2.1. Unpack and Remove Cover • Use 1/8" Allen key to remove cover screws. • Remove cover (Figure 2-1) Figure 2-1 Remove Cover... -
Page 5: Door Operator Direction Determine
ADC-AI- S300 Installation Guide 2.1.1. Door Operator Direction Determine ● Only decide installing the ADO inside or outside (Safe Side) ● Spindle always the same side as the door hinge ● Operator and Door are on the different side = PUSH (Encoder facing down) ●... -
Page 6: Determine Header Unit Position
ADC-AI- S300 Installation Guide • Using the appropriate drill bit for the fasteners to be used. Drill at least 6 mounting holes on the motor side of the Header Unit, and 4 holes on the controller side. DRILL HOLES BETWEEN THE CHANNELS as highlighted in yellow below (Figure 2-3). -
Page 7: Installation Examples
ADC-AI- S300 Installation Guide • With the gearbox unit installed, proceed with installing the controller unit using the appropriate fasteners. Figure 2-5 illustrates a PUSH application with components installed. 2.3. Installation Examples • Ensure there is solid structural support in the mounting surface (wall) behind the header unit for the appropriate mounting hardware to be secured to. -
Page 8: Arm Installation
ADC-AI- S300 Installation Guide 2.5. Arm Installation S300 arms can be installed in either a PUSH or PULL configuration. Regardless of configuration, the gearbox must be loaded to hard stop. 2.5.1. Gearbox Pre-loading Ensure unit is connected to power (but power switch remains OFF). ●... -
Page 9: Pull Arm Installation
ADC-AI- S300 Installation Guide Figure 2-7 Push Arm Positioning Figure 2-8 Push Arm Positioning Vertical Section • Fix the arm to the operator spindle using supplied PH3 screw. 4-1/8" Low Mount • Push the door slightly to release the metal rod or screwdriver from the gearbox. If the gearbox was pre- loaded using the motor, remove the jumper wire between COM and ACT2 on the control board. - Page 10 ADC-AI- S300 Installation Guide • Slide the arm roller into the track, then push the arm onto the operator’s spindle. Secure arm to spindle using supplier screw and washer. Figure 2-13 Pull Arm Installation • Push the door slightly to release the metal rod or screwdriver from the gearbox. If the gearbox was pre- loaded using the motor, remove the jumper wire between COM and ACT2 on the control board.
-
Page 11: Terminal Wiring
ADC-AI- S300 Installation Guide 3. Terminal Wiring 3.1. Terminal Description / Legend 3.2. Wiring Example: Regular Push-Button Activation The following diagram is only an example, use only as a reference. - Page 12 ADC-AI- S300 Installation Guide Use AiBase Washroom Kit for Washroom Application.
-
Page 13: Wiring Example: Card Access Integration
ADC-AI- S300 Installation Guide 3.3. Wiring Example: Card Access Integration The following diagram is only an example, use only as a reference. 3.4. Wiring Example: Washroom Application The following diagram is only an example, use only as a reference. -
Page 14: Programming
ADC-AI- S300 Installation Guide 4. Programming 4.1. Change Operating Parameter Settings The S300 default operating parameter settings can be adjusted to better suit the installation. See Section 4.1.2 for a full list of basic and advanced parameters. • Ensure the door is fully closed – the door operator control display should read “DOOR CLOSED.” •... -
Page 15: Parameter List & Descriptions
ADC-AI- S300 Installation Guide 4.1.1. Parameter List & Descriptions All values and settings must comply with applicable national and provincial/state standards, including local building codes and accessibility regulations. Index Parameter Description Function Behavior / Effect of Adjustment Value Default Overload Obstacle Detection Sensitivity Lower values increase sensitivity, making the 60-80... - Page 16 ADC-AI- S300 Installation Guide Latch Angle Latch cycle angle Sets the angle at which the door will begin to 1-45 slow before fully closing the door. Wider angles provide more control and adjustment in the final closing phase. Decel Angle Backcheck start angle Sets the angle at which backcheck 20-110...
-
Page 17: Recommended Parameter Settings By Door Size
ADC-AI- S300 Installation Guide 4.1.2. Recommended Parameter Settings by Door Size All values and settings must comply with ANSI/BHMA A156.19 Standard for Power Assist and Low Energy Power Operated Swing Doors. See 4.1.1 Parameter List & Descriptions for more details. 4.2. -
Page 18: Safety Signage And Access Control Placement
ADC-AI- S300 Installation Guide 5. Safety Signage and Access Control Placement • Always apply supplied stickers on both sides of the door at locations stipulated by local codes. • See ANSI standard A156.19 requirements for additional safety decal information • Safety signage included with S300 are double-sided labels intended for application on clear glass.
