Summary of Contents for Labtron Slide Dryer LSLD-A10

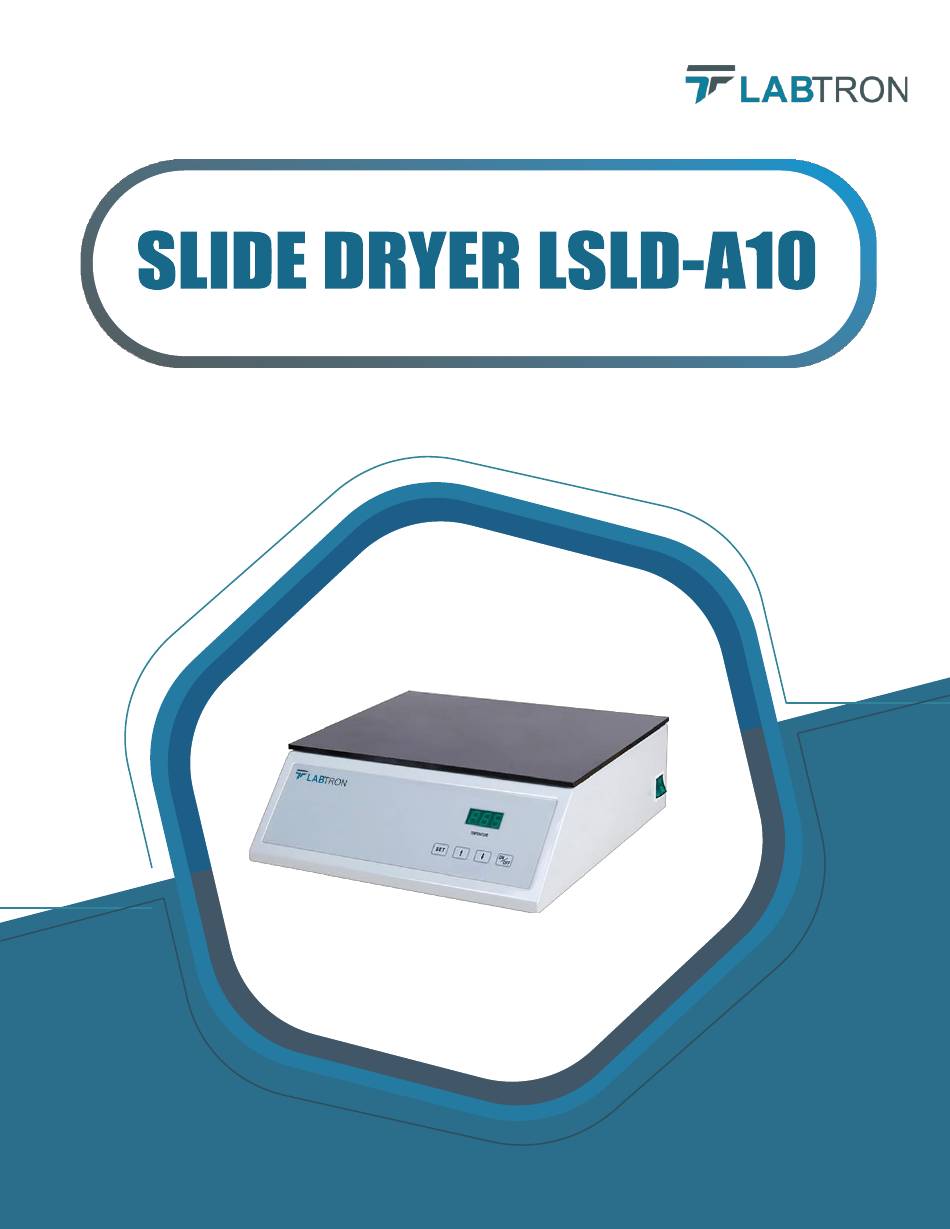

- Page 1 info@labtron.com...
-
Page 2: Table Of Contents
Slide Dryer LSLD-A10 Index Sr.no Title Page no Safety Measures Introduction Features Specifications Applications Instrument Structure Installation Operations Maintenance Troubleshooting Circuit diagram... -
Page 3: Safety Measures
Slide Dryer LSLD-A10 1. Safety Measures • Do not use the dryer in the presence of flammable chemicals, otherwise, it may cause fire or explosion hazard. • During work, the drying table is very hot, which may cause serious burns. -
Page 4: Introduction
Slide Dryer LSLD-A10 2. Introduction Slide Dryer LSLD-A10 is a compact dryer unit for drying the paraffin tissue section mounting purpose. Temperature of dryer is microprocessor controlled. Equipped with thermal heaters for even heat transfer. LED display screen is used for adjusting and viewing the temperature of the unit. -
Page 5: Instrument Structure
Slide Dryer LSLD-A10 6. Instrument Structure The slide dryer is mainly composed of the control system and heating system. The specific structure is as follows: 1. Drying table 2. Display screen 3. Power switch 4. Main power supply connection port... - Page 6 Slide Dryer LSLD-A10 The function of each part is as follows: 1. Drying table: with a heating function and a temperature range (room temperature of ~ 99 ℃), it is not only the platform for placing slices but also the main operation platform in the process of drying.
-
Page 7: Installation
Slide Dryer LSLD-A10 7. Installation 1) Requirements for installation environment: 1. Only applicable to indoors 2. Ambient temperature: 15℃～35℃. 3. Relative humidity: ≤75%. 4. Atmospheric pressure range: 75 kPa～106 kPa. 2) Before connecting the AC power supply, ensure that the voltage of the power supply is consistent with the input voltage of the dryer and the voltage is stable, and ensure that the rated load of the power socket is not less than this requirement. -
Page 8: Operations
Slide Dryer LSLD-A10 8. Operations 8.1 Operation panel Figure 2 Operation panel schematic diagram 1. Display screen 2. Temperature rise button 3. Temperature drop button 4. Setting button 5. Power button • Display screen: Display the working status of the working interface. - Page 9 Slide Dryer LSLD-A10 (2) Preset temperature: press the setting button to display Sxx, representing that the setting state is entered. The displayed temperature is the set temperature. Press the temperature rise and temperature drop buttons to reach the required set temperature, and the temperature will be automatically stored in the computer chip.
-
Page 10: Maintenance
Slide Dryer LSLD-A10 9. Maintenance Note: the following cleaning and maintenance work must be carried out when the power supply is disconnected. Do not use metal tools or reagents to clean the instrument surface. 1. Daily cleaning • The following cleaning work shall be carried out after the equipment is used: •... -
Page 11: Troubleshooting
Slide Dryer LSLD-A10 Troubleshooting Fault diagnosis & troubleshooting Fault Possible reasons Solutions Check whether the power socket is charged and The equipment has not been whether the power cord is connected to the power firmly plugged in. supply. Check whether the power The display screen cannot switch is turned on. - Page 12 Slide Dryer LSLD-A10 Then unplug the power cord. Figure 4 Power cord connector Finally, replace a new fuse (see the packing list for the parameters of the fuse ). Figure 5 Fuse holder...
-
Page 13: Circuit Diagram
Slide Dryer LSLD-A10 Circuit Diagram Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.com | Website: www.labtron.com...
