User Manual
Combined camera and light source system with
unique camera technology

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Camsource LED and is the answer not in the manual?

Questions and answers

Related Manuals for joimax Camsource LED

Summary of Contents for joimax Camsource LED

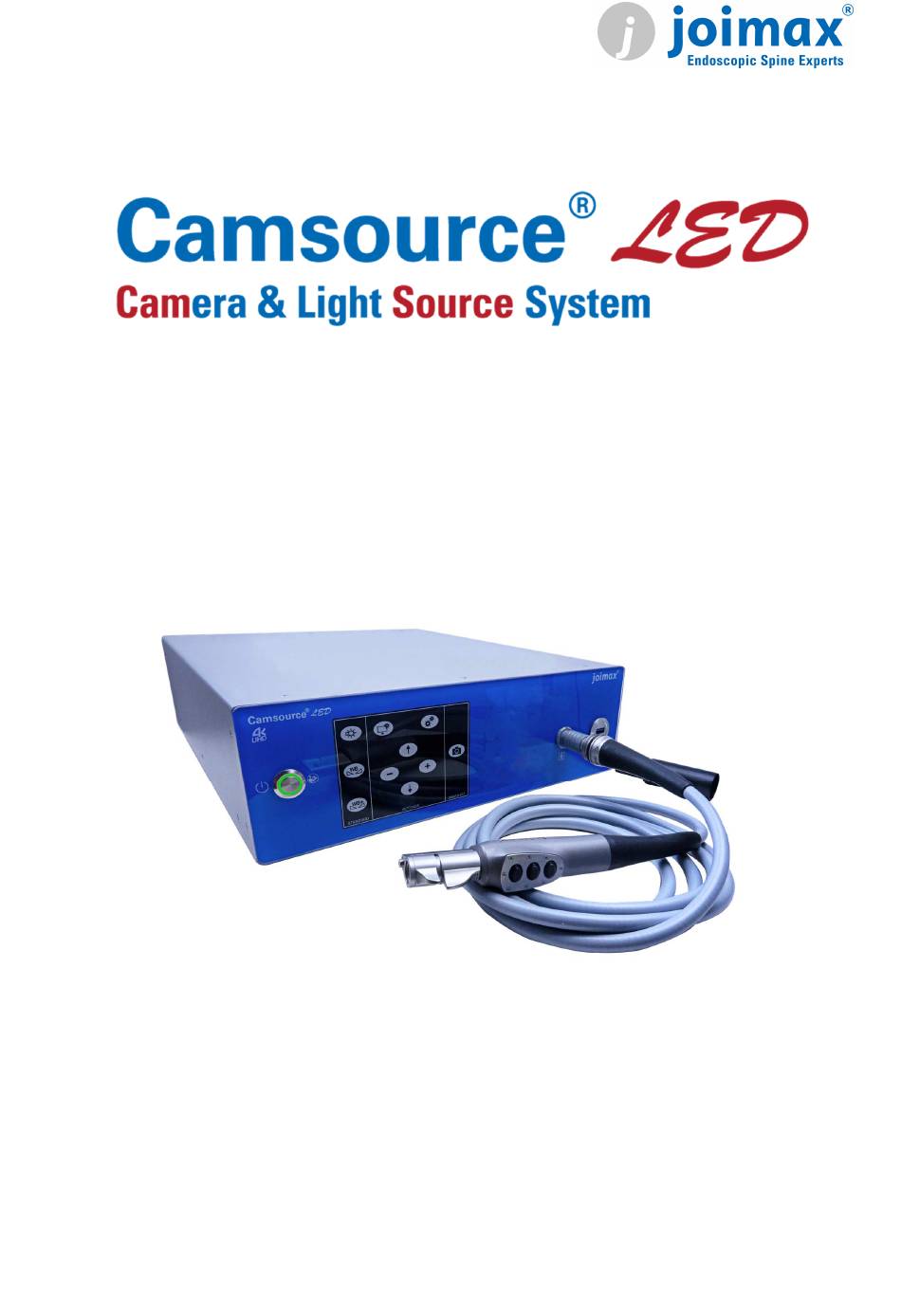

  • Page 1 User Manual Combined camera and light source system with unique camera technology...
  • Page 2 Rev. 010; 2021-12-14; English © joimax ® GmbH Page 2/44...

  • Page 3: Table Of Contents

    ENS AND IBER PTIC ABLE EUSABILITY TECHNICAL DATA EMC NOTES SERVICE / MAINTENANCE 12.1 R EPLACING THE TROUBLESHOOTING WARRANTY CONSUMABLES / ACCESSORIES COMPATIBILITY DISPOSAL OF THE DEVICE EMERGENCY NUMBER MANUFACTURER INFORMATION Rev. 010; 2021-12-14; English © joimax ® GmbH Page 3/44...

  • Page 4: Legal Notes

    Liability All procedures, notes and warnings described in this manual do not release the operator/user from his or her responsibilities regarding clinical judgment, experience and best clinical practice. Rev. 010; 2021-12-14; English © joimax ® GmbH Page 4/44...

  • Page 5: General Description

    It consists of a camera control unit and a camera head with a high-resolution video sensor, on which an endoscope can be connected. The camera head is connected via cable to the camera control unit which also integrates the LED light source. Rev. 010; 2021-12-14; English © joimax ® GmbH Page 5/44...

  • Page 6: Signs And Symbols

    Caution: U.S. federal law restricts this device to sale by or on the order of a physician. Equipotential (potential equalization) Temperature limitation Humidity limitation Atmospheric pressure limitation Keep away from rain Keep away from sunlight Non-sterile Medical Device Rev. 010; 2021-12-14; English © joimax ® GmbH Page 6/44...

  • Page 7: Device Label

    Device Label Rev. 010; 2021-12-14; English © joimax ® GmbH Page 7/44...

  • Page 8: Intended Purpose And Characteristics

    Parameters can be set via an easy to clean touch panel and intuitive on screen display. In ® ® addition, the Camsource LED provides an interface to the joimax Command environment and features image capturing to an USB device directly at the device front. Principles of Operation The image sensor of the camera head digitizes the analog images of a connected endoscope via a CMOS image sensor and transmits them to the control unit.
  • Page 9 Two types of camera heads are and image settings. ® available: Camsource ® Camera Head Combo for joimax control unit provides endoscopes with combo connection integrated LED light source, which ® (joimax single cable technology,...

  • Page 10: Scope Of Delivery

    Scope of Delivery ® After delivery of the Camsource LED, the packaging must be checked for external damage. ® If any components are damaged or missing, please contact joimax customer service. Item number Item description CSFHD01SC Camsource ® LED System Combo...

  • Page 11: Safety And Warning Notes

    In invasive applications, direct tissue contact might lead to unintended tissue effects. Direct tissue contact is to be avoided and continuous irrigation of the surgical area is recommended. Rev. 010; 2021-12-14; English © joimax ® GmbH Page 11/44...
  • Page 12 Due to energetic interactions of magnetic fields and X-rays with the material of the endoscope and camera heads, the optical and electrical components of the ® Camsource LED may be damaged. Unforeseeable side effects and visual disturbances may occur. Rev. 010; 2021-12-14; English © joimax ® GmbH Page 12/44...

  • Page 13: Installation And Commissioning

    (6”) is maintained between the back of the device and other objects. All ventilation openings must not be obstructed. ® The device is recommended to be installed in the joimax endoscopic trolley. Keep the original packaging for possible shipment of the device! The device and all accessories must be checked immediately upon receipt for completeness and obvious damage.
  • Page 14 4K HDMI video output FHD) Switches for SDI signal mode (3G, SDI video outputs Device label Switch for output frequency (50Hz, 60 Hz) Remote control (via camera head ® Connection to joimax Command buttons) ® Display control (for joimax Command On-Screen-Display) 16.
  • Page 15 For safe disconnection of the device from mains power supply, set the power switch at the backside of the device to position “0” and unplug the power cord from the mains connection. Rev. 010; 2021-12-14; English © joimax ® GmbH...
  • Page 16 5. OPTIONAL: Connecting the Remote Cables to the Control Unit Connect two remote cables to the corresponding remote control outputs, e.g. for remote ® ® control of the joimax Vitegra via the camera head buttons. Rev. 010; 2021-12-14; English © joimax ®...

  • Page 17: Connection Of An Endoscope

    2. Insert the endoscope into the coupling. 3. Release the ocular coupling. 4. Screw the fiber optic cable onto the light connector. 5. Focus the endoscopic image manually by using the focus ring. 1. + 3. Rev. 010; 2021-12-14; English © joimax ® GmbH Page 17/44...

  • Page 18: Connection Of A Fiber Optic

    1. Ensure the light adapter is screwed on the Y-connector of the camera head and the ® joimax Fiber Optic Cable. ® 2. Screw the joimax Fiber Optic Cable onto the Y-connector. ® Any standard fiber optic cable can be connected to the Camsource LED Camera Head Ocular by using the Fiber Optic Cable Adapter (CSFHD01COAS): 1.

  • Page 19: Sterile Preparation Of Thec

    Camera Cable Cover is sterilized using ethylene oxide and delivered in sterile packaging. ® If the camera heads are used non-sterile with a sterile cover, joimax recommends storing the camera heads between consecutive operations in the camera head mount attached to the endoscopic trolley or the drawer.

  • Page 20: Functional Tests

    LED. ® Adjust the output of the Camsource LED via the various available image settings until a satisfactory image is displayed. Warning: Check live image quality prior to every use. Rev. 010; 2021-12-14; English © joimax ® GmbH Page 20/44...

  • Page 21: Operation

    LED of the “Standby” button flashes during the boot sequence. When the status LED is continuously lit green, the device is ready for use. 3. Press the “Standby” button again to return to standby mode. Rev. 010; 2021-12-14; English © joimax ® GmbH Page 21/44...

  • Page 22: Activating / Deactivating The 8.5 Performing White Balance

    4. The button flashes while the White Balance is performed by the device (about 4 seconds), and then it is continuously lit. 5. Check that a satisfactory live image is displayed. Rev. 010; 2021-12-14; English © joimax ® GmbH Page 22/44...

  • Page 23: Changing Settings

    The “System Settings” in contrast contain all the device-related parameters. To enter a settings menu, press the corresponding settings button on the device front: Image Settings System Settings Rev. 010; 2021-12-14; English © joimax ® GmbH Page 23/44...
  • Page 24 Adjust, if the center of the image is heavily overexposed. Boost on / off Brightness correction The edges of the image are brightened and the center is darkened. Red-Blue-Shift -3 - 0 - +3 Image color shift Rev. 010; 2021-12-14; English © joimax ® GmbH Page 24/44...
  • Page 25 CMD activates the on screen display of the joimax Command, Remote 1/2 ® ® triggers the external remote connectors (e.g. for remote control of the joimax Vitegra Language EN / DE / FR / ES / IT System language...

  • Page 26: Taking A Snapshot / D

    The three buttons (A/B/C) on the camera heads can be freely assigned two functions each (short keystroke and long keystroke > 1 second). The assignment is done via the system settings menu. Rev. 010; 2021-12-14; English © joimax ® GmbH Page 26/44...

  • Page 27: Cleaning And Disinfection Of The 9.2 Cleaning , Disinfection And

    For effective wipe disinfection of the Camsource LED Control Unit, use of Mikrozid ® sensitive wipes (Schülke & Mayr) is recommended by joimax GmbH. Pay particular attention to the connectors at the front of the control unit and the plugs of the handpieces. Make sure to let them dry thoroughly before connecting any components.

  • Page 28: Pre-Treatment

    3. Screw the sealing cap tightly onto the plug of the camera head cable. 4. Rinse the camera head with purified water (Temp. < 35° C/95° F). Push each button at least three times during rinsing. Rev. 010; 2021-12-14; English © joimax ® GmbH Page 28/44...

  • Page 29: Automated Cleaning And Disinfection

    For effective automated cleaning and disinfection, use of the cleaner Neosdisher ® MediClean forte (Chemische Fabrik Dr. Weigert) is recommended by joimax GmbH. When selecting the disinfector, make sure that: the disinfector has proven effectiveness (e.g. DGHM or FDA approval or CE marking according to DIN EN ISO 15883) if possible, a tested program for thermal disinfection (A0 value >...

  • Page 30: Sterilization

    It is not recommended to use other sterilization methods (such as flash sterilization, hot air sterilization, radiation sterilization, formaldehyde or ethylene oxide sterilization). ® The STERRAD sterilization system may cause cosmetic changes to some video lens components. Rev. 010; 2021-12-14; English © joimax ® GmbH Page 30/44...

  • Page 31: Cleaning , Disinfection And 9.4 Reusability

    After sterilization, the camera heads must be stored dry and dust-free in the sterilization packaging. Cleaning, Disinfection and Sterilization of the Video Lens and Fiber Optic Cable Follow the instructions for reprocessing in the corresponding user manuals. Rev. 010; 2021-12-14; English © joimax ® GmbH Page 31/44...
  • Page 32 150 cycles. Any further re-use or the use of damaged and/or contaminated instruments is in the responsibility of the user. In case of any doubt about product quality we recommend to return the camera head for ® inspection or for replacement to joimax Rev. 010; 2021-12-14; English © joimax ®...

  • Page 33: Technical Data

    HDMI: 3840 x 2160 pixels Documentation Functions Capture of image files Image formats JPEG Storage USB 2.0 port for USB storage Applied part Classification Type BF (according to IEC 60601-1) Rev. 010; 2021-12-14; English © joimax ® GmbH Page 33/44...

  • Page 34: Emc Notes

    ® The Camsource LED is suitable for use in professional healthcare facility environments according to IEC 60601-1-2:2014 (Ed.4). Rev. 010; 2021-12-14; English © joimax ® GmbH Page 34/44...
  • Page 35 Power frequency magnetic fields frequency 50 Hz or 60 Hz 50 Hz or 60 Hz should be at levels characteristic of magnetic fields a typical location in a typical commercial or hospital environment. Rev. 010; 2021-12-14; English © joimax ® GmbH Page 35/44...
  • Page 36 IEC 61000-4-4 100 kHz repetition 100 kHz repetition voltage must be that of a bursts frequency frequency typical business or hospital Surges environment. IEC 61000-4-5 ±2 kV ±2 kV Line-to-ground Rev. 010; 2021-12-14; English © joimax ® GmbH Page 36/44...
  • Page 37 25; UMTS Bluetooth, WLAN, 2400 - Pulse modulation 2450 802.11 b/g/n, RFID 2570 217 Hz 2450, LTE Band 7 5240 5100 - WLAN 802.11 Pulse modulation 5500 5800 217 Hz 5785 Rev. 010; 2021-12-14; English © joimax ® GmbH Page 37/44...

  • Page 38: Service / Maintenance

    5) Plug the power cord into the control unit. 6) Turn on the device via the power switch at the backside, press the button "Standby” at the device front and check the function of the device. Rev. 010; 2021-12-14; English © joimax ® GmbH Page 38/44...

  • Page 39: Troubleshooting

    Check power supply connection Check main fuses Device is not switched on Switch on the device ® Defective device Contact joimax customer service No image Device is not switched on Switch on the device Incorrect cabling on device and Inspect correct cabling...

  • Page 40: Warranty

    Warning: ® To protect your staff and the joimax GmbH employees, please clean the unit and its accessories and disinfect it before sending it. Should this be impossible due to temporal constraints, please prepare the unit as much as possible and label it accordingly.

  • Page 41: Consumables / Accessories

    (e.g. monitors, recording systems etc.). Consumables ® All consumables are provided by joimax GmbH. Replacements for all consumables ® ® can be ordered from joimax GmbH or via the respective local joimax distributor. Item number Item description ® Camsource Camera Cable Cover CSCC1223 Disposable, telescopic folded, with perforation and adhesive tape, L 230cm / W 12.5cm...

  • Page 42: Compatibility

    Detailed information regarding joimax endoscopes and accessories can be found in ® the joimax product catalog. ® For further information and new products directly contact the joimax customer ® service or your joimax representative. Rev. 010; 2021-12-14; English © joimax ®...

  • Page 43: Disposal Of The Device

    (MPDG) or § 3 Medizinprodukte-Sicherheitsplanverordnung (MPSV) at the following telephone number: For the US +1 949-859-3472 (24-hour availability) For all other countries +49 (0)721 25514 – 999 (24-hour availability) Thank you for your support! Rev. 010; 2021-12-14; English © joimax ® GmbH Page 43/44...
  • Page 44 ® . Other products and names used here may be the registered brands of other companies. Patents are registered. Copyright © 2021 joimax ® GmbH. All rights reserved. Caution: U.S. Federal Law restricts this device to sale by or on the order of a physician.
