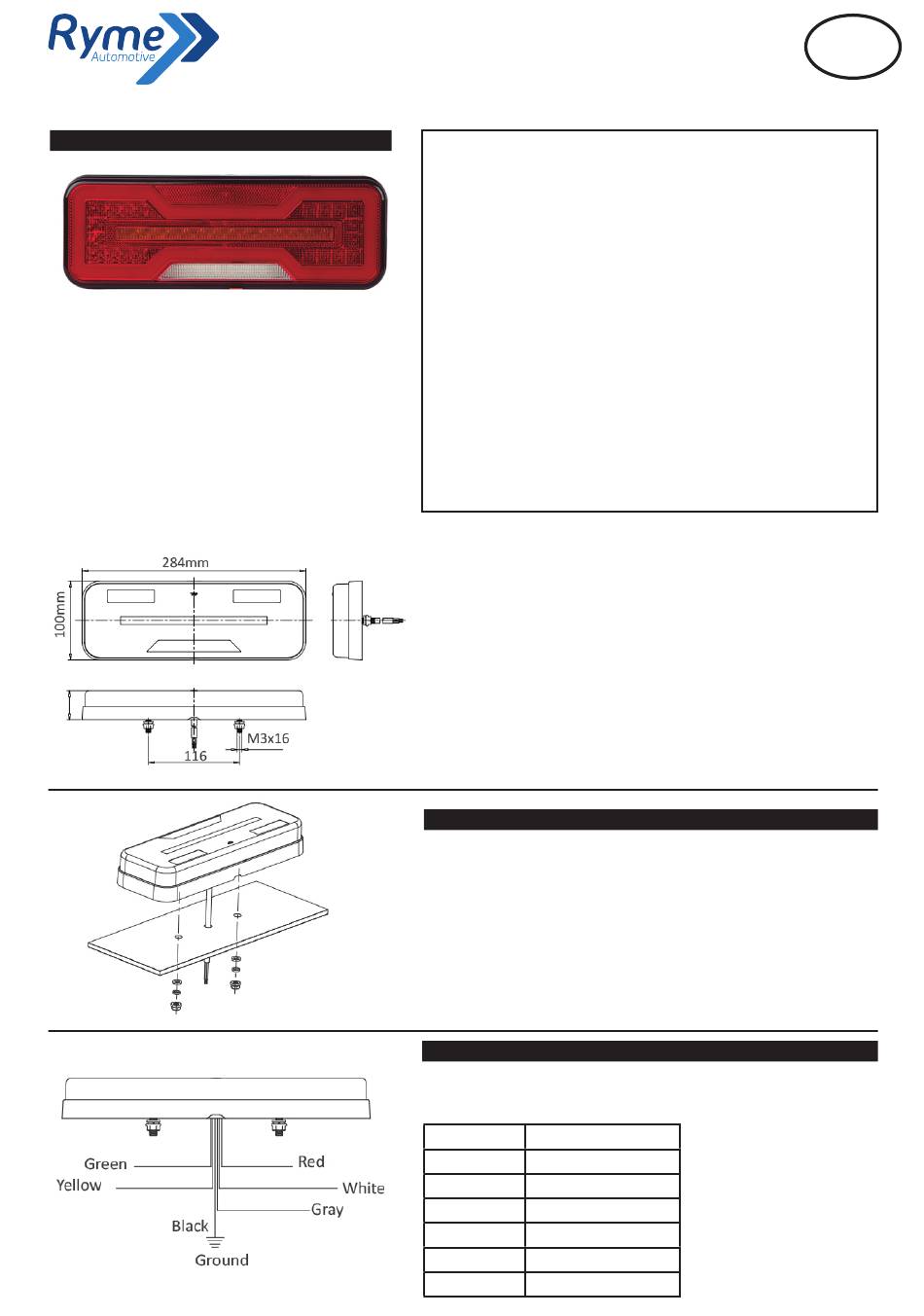

Ryme Automotive 818020 Operation Instruction

SPECIFICATIONS
• Voltage:10-30V
• IP Rating: IP 67
• Max Power: Tail 1.9W, Stop 1.2W DI 4W,
REV 1.9W, Rear Fog 3.4W
• Mounting: Screw mount
• Functions: Tail / Stop / REV / Direction(-
floing) / Rear Fog / Reflex
• Certificate: ECE R10, ECE R3, ECE R6, ECE
R7, CE R23, ECE R38
REF. 818020 - 818021
OPERATION INSTRUCTION
Multifunctional LED Rear Light
T/ST/DI (Flowing)/REV/Rear Fog/REF
· Proper installation of this product requires the installer to
have a good understanding of automotive electronics,sys-
tems and procedures
· Failure to use specified installation parts or hardware will void
the product warranty
· For this product to operate at optimum efficiency ,a good elec-
trical connection to chassis ground must be made.
· It is recommended that these instructions be stored in a safe
place and referred to when performing maintenance or rein-
stallation of this product.
· Do not install and/or operate this safety product unless you
have read and understand the safety information contained in
this manual.
· It is the responsibility of the vehicle operator to ensure during
use that all features of this product work correctly. In use, the
vehicle operator should ensure the projection of the warning
signal is not blocked by vehicle component,people, vehicles,or
other obstructions.
This document provides all the necessary information to al-
low your product to be properly and safely installed. Before
beginning the installation and operation of your new product,
the installation technician and operator must read this manual
completely.
Important! This unit is a safety device, and it must be connected
to its own separate, fused power point to assure its continued
operation should any other electrical accessory fail.
· Read all safety notes and mounting guidelines before installing
the product. Verify that all parts listed under "In the Box" are pre-
sent and complete.
· Verify that all power supply comply to the specified voltage li-
mits for the light.
Note: Screw must go through the rubber cushion fully to install
All wiring should be of 22AWG at least.
COLOR
Red
Black
Yellow
White
Green
Gray
INSTALLATION
WIRING
DESCRIPTION
Stop
Power Negative
Direction indicator
Reverse
Tail
Rear Fog
