- Page 1 ○ HUAXIN ENERGY ○ LICI SERIES ELECTRIC BICYCLE Power Assisted Folding Electric Bicycle USER MANUAL Model: LC-F003（Z1） 2012-7-11...
-
Page 2: Table Of Contents
Table of Contents Introduction………………………………………….………………………………..…….3 Features………………………………………………….……………………………….3~4 Safety Warnings……………………………………….…………….…………….………..5 User Guidance……………………………………………………………………………….6 Batteries and Charging………………………………………………………….….…..7~8 Troubleshooting………………………………………………………………….….………..9 Specifications……………………………………………….……………..………….…….10 Disclaimer…………………………………………………………………………………...11 2012-7-11... -
Page 3: Introduction

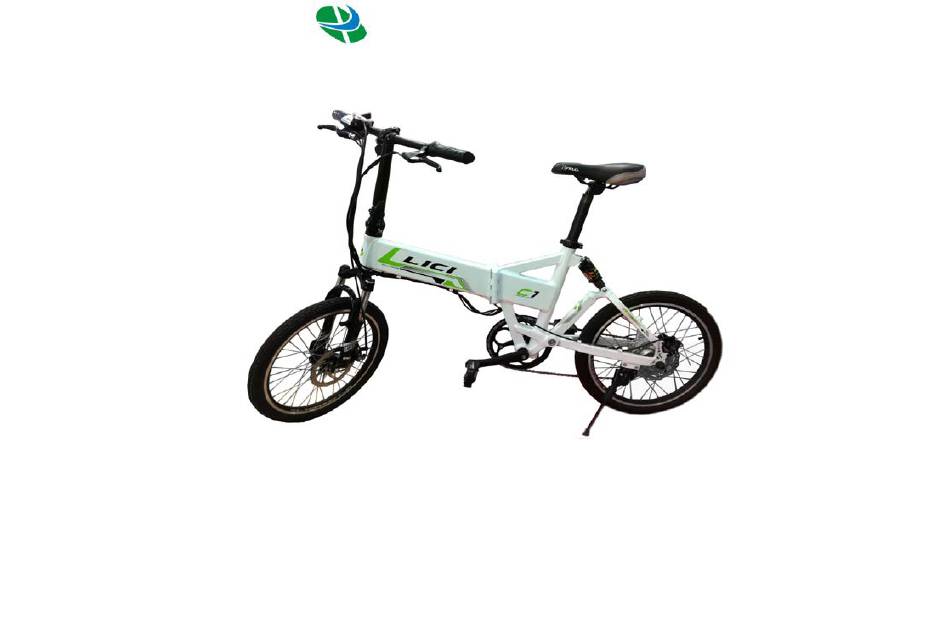

Power Assist Folding Electric Bicycle (hereinafter referred to as “E-Bike”) tactfully designed and manufactured by Shenzhen Huaxin Energy Technology Co., Ltd. (hereinafter referred to as “HXE”). The user’s manual contains all kinds of important information concerning the operation and the safe use of your E-Bike. Please read this manual carefully and thoroughly before riding your E-Bike and make sure that you have learned all the instructions of the E-Bike. - Page 4 Rear Brake Front Tire Release Front Brake Motor Freewheel Gear ControlCable Handlebar Hinge Rear Derailleur ※LICI is a registered trademark of the HXE products. ○ Chain ※HUAXIN ENERGY is registered for “Advanced Power Technologies” developed and owned by HXE. ® 2012-7-11...
-
Page 5: Safety Warnings
Safety Warnings 1. Do not operate the E-Bike before reading this user manual thoroughly. 2. Do not disassemble the battery case and modify the unit without HXE written approval, or your warranty will be void and you will be responsible for the modification. 3. -
Page 6: User Guidance
User Guidance ： Regular check for safety before riding 1. Check Tire Pressure： Check the tire pressure of front and rear wheel to be maintained at 50PSI (or 3.5Bar). Check if the tread of tires with excess worn out should be replaced. 2. -
Page 7: Batteries And Charging
Battery and Charging The battery is made up by lithium ion battery packs, with 5 discharging connecters to ensure stable connecting. Lock 1 Lock 2 Dismounting Battery Case The Battery Case was locked by double locks. Step 1: Unlock the lock 1. 5 connectors of the battery Step 2: Unlock the lock 2. - Page 8 Charging Port ※Note: During folding, the battery and the case should be keep in dry . Step 4: Take the battery out of case. Charger Plug Steps to charge the Battery Power Plug Operating Instruction 1. Must assure the input voltage is between 100V~240V. 2.
-
Page 9: Troubleshooting
4. For your safety, do not short circuit output plug, or it may cause unexpected danger or damage. 5. Use the specified charger only for the Lithium Battery Pack supplied by HXE. 6. Always use the battery charger and power cord supplied by HXE. 7. -
Page 10: Specifications
Specification LC-F003 （Z1） Model Length 1310 Overall Dimension Width Tire Size inch 20"*1.75 Total Weight Max. Speed 25km/h Battery Capacity / Weight 36V 8 Ah /4.5kg Derailleur SHIMANO 7 Speed Power Assist Driving Wheel Rear Wheel Drive Hub Motor Model Brushless Motor with geared (36 V) Type (Dedicated for lithium Battery) Charger... -
Page 11: Disclaimer
LICI Series Power Assisted Folding Electric Bicycle ○ DISCLAIMER Congratulations on your purchase of Huaxin Energy LICI Power Assisted Folding Electric Bicycle. ® ® This LICI Power Assisted Folding Electric Bicycle is not intended to be used by individuals with physical limitations that could prevent the ®...
