Westward 2NAA5 Operating Instructions And Parts Manual

Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before
using product. Protect yourself and others by observing all safety information, warnings, and
cautions. Failure to comply with instructions could result in personal injury and/or damage to
product or property. Please retain instructions for future reference.

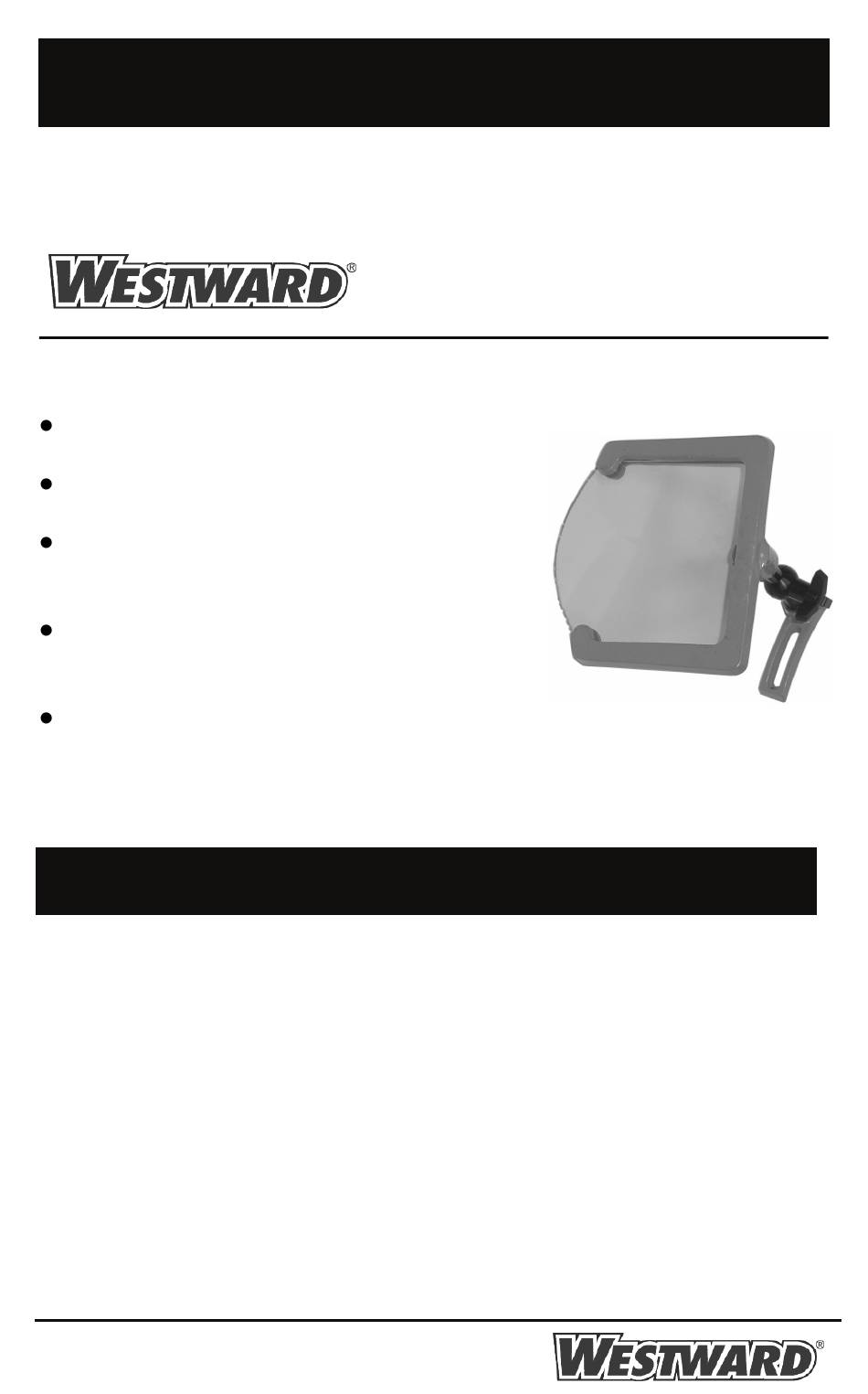

Description
Complete with Aluminum Casted Frame, Clear
Polycarbonate Shield and Pivot Mount Hardware.
Swivel-lock positioning shield protects operator from
flying grit and debris.
Strong, lightweight Aluminum Casted Frame with
3/16" thick polycarbonate shield will contain and
deflect any wheel breakage.
One standard frame with a choice of three sizes of
interchangeable shields will provide protection for
grinding and buffing wheels up to 14".
An extra heavy-duty steel pivot with locking knob
connects the frame to the curved adjustable mounting bracket.
Dimensions
Model
Bench Grinder Size
Grinder Guard
2NNA5
2NNA7
2NNA9
Replacement Shield
2NAC2
2NAC4
2NAC6
Form #245
Printed in China
09/08
Pivot Mount Grinder Guard
Suggested
6" ~ 8"
8" ~ 10"
10" ~ Up
6" ~ 8"
8" ~ 10"
10" ~ Up
2NAA9, 2NAC2, 2NAC4, 2NAC6
Shield Size (in)
L x W x THK
5-1/2" x 5-3/4" x 3/16"
6-1/2" x 8-1/2" x 3/16"
12-3/4" x 11" x 3/16"
5-1/2" x 5-3/4" x 3/16"
6-1/2" x 8-1/2" x 3/16"
12-3/4" x 11" x 3/16"
2NAA5, 2NAA7
