Labtron LTCG-A23 Manual

Touch thermal cycler (gradient)
Hide thumbs

Advertisement

Table of Contents

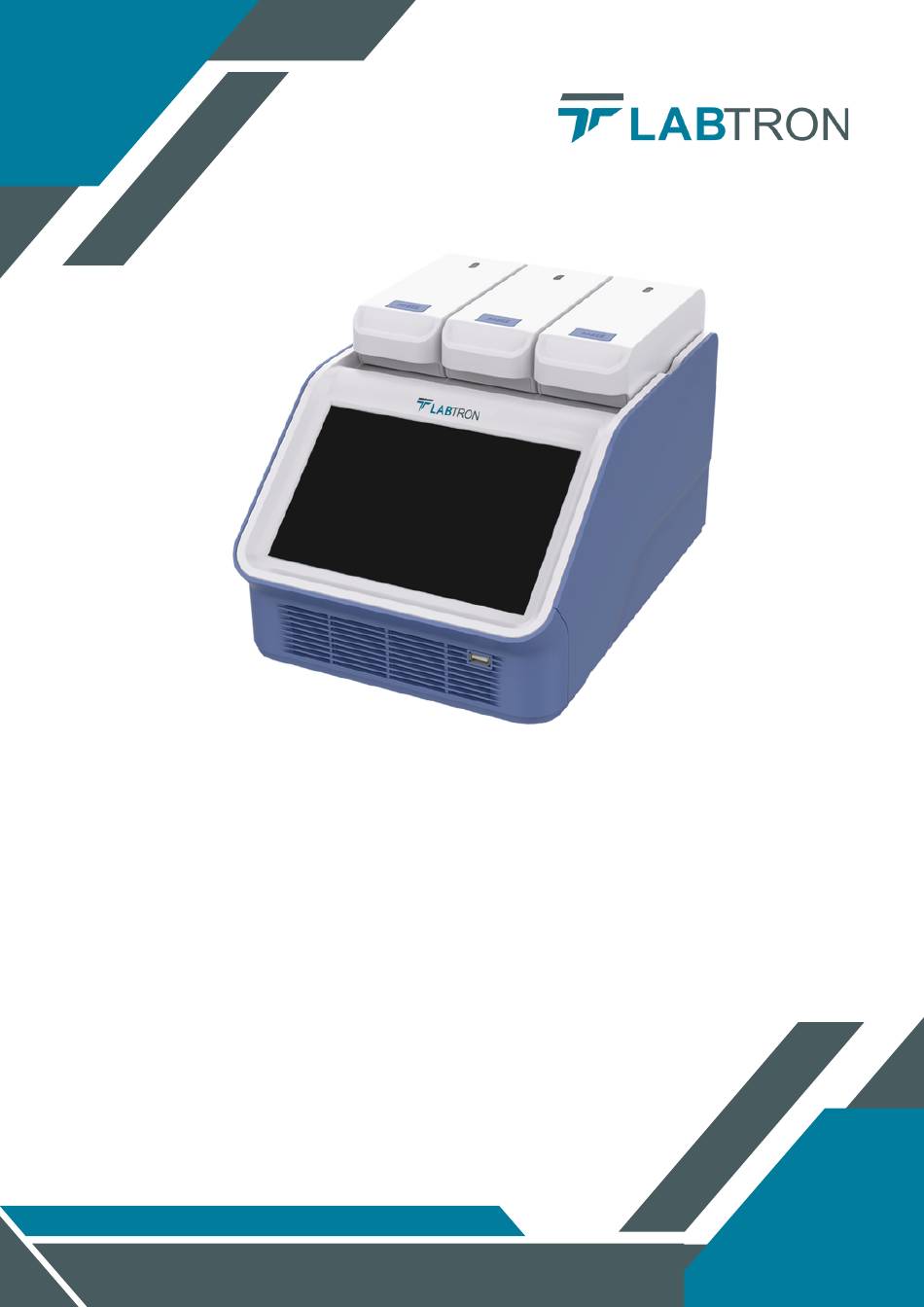

Touch Thermal Cycler
(Gradient)
LTCG-A23
www.labtron.com | info@labtron.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTCG-A23 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Labtron LTCG-A23

  • Page 1 Touch Thermal Cycler (Gradient) LTCG-A23 www.labtron.com | info@labtron.com...
  • Page 2 Touch Thermal Cycler (Gradient) LTCG-A23 Index Sr.no Title Page no Safety Measures Introduction Features Specifications Applications Instrument Introduction Installation Operations Maintenance Troubleshooting Replacement Packing List...

  • Page 3: Safety Measures

    Touch Thermal Cycler (Gradient) LTCG-A23 1. Safety Measures Safety Guidelines 1.1 Instrument Safety Warning Labels Icon Meaning High-temperature warning: To prevent burns, kindly refrain from directly touching any areas marked with safety warnings or those identified as hot in the manual.
  • Page 4 Touch Thermal Cycler (Gradient) LTCG-A23 2. Introduction Touch Thermal Cycler (Gradient) LTCG-A23 operates within a temperature range of 0 to 105℃, ensuring precise thermal cycling for PCR applications. Three independent gradient blocks enable simultaneous experiments, optimizing conditions efficiently. It has a capacity of 3×32×0.2ml, offering ample space for large- scale experiments.

  • Page 5: Specifications

    Gross Weight 12.4 kg 5. Applications Our Touch Thermal Cycler (Gradient) LTCG-A23 is ideal for PCR optimization, enabling simultaneous gradient experiments for efficient condition testing. It is perfect for DNA amplification and high-throughput thermal cycling in both research and diagnostic laboratories.

  • Page 6: Instrument Introduction

    Touch Thermal Cycler (Gradient) LTCG-A23 6. Instrument Introduction 6.1 Instrument Construction 1. The front of the machine Figure 1 . Frontal view of the thermal cycler 1. Lock column - locks hot lid. 2. Status LED - indicates the status of the reaction module.
  • Page 7 Touch Thermal Cycler (Gradient) LTCG-A23 2. The back of the machine Figure 2 Back view of the thermal cycler 1. Cooling fins - Allows the thermal cycler to cool quickly. 2. Air vents - Allow the thermal cycler to cool quickly.

  • Page 8: Installation

    Touch Thermal Cycler (Gradient) LTCG-A23 7. Installation 7.1 Normal Operating Conditions 1) Used indoors. 2) Temperature 10℃-30℃. 3) Relative Humidity 10%-85%. 4) Kindly keep it stay away from heat sources to avoid liquid soaked in the instrument. 5) Do not block the air flow vent in the side and bottom of the instrument and keep the air flow vents of the instrument smoothly.
  • Page 9 Touch Thermal Cycler (Gradient) LTCG-A23 8. Operations 8.1 Operation Instruction 8.1.1 Power On Connect power cord to the back of instrument then plug into power source and switch to "-". . When the instrument is on, the buzzer should be heard, and the LCD screen lights up to show the Boot screen (Figure 3).
  • Page 10 Touch Thermal Cycler (Gradient) LTCG-A23 8.1.2 Menu Structure...
  • Page 11 Touch Thermal Cycler (Gradient) LTCG-A23 8.2 File Instructions • File is composed by Temperature Step and Cycle Step. • Each File can hold up to 40 Steps, Temperature Step contains Temperature, Time, Gradient, Ramp Rate, Temperature Increment opening point, Time Increment opening point, Temperature Increment and Time Increment.
  • Page 12 Touch Thermal Cycler (Gradient) LTCG-A23 Figure 3. Edit file 1) Change Target Temperature and Hold Time In the New File screen, touch “+Temp” button to add a Temperature Step, touch “+Cycle” button to add Cycle Step (GOTO step), use the pop-up numeric keypad to enter a new value for the target temperature or hold time.
  • Page 13 Touch Thermal Cycler (Gradient) LTCG-A23 Figure 4 Advanced Figure 5. Set the Gradient...
  • Page 14 Touch Thermal Cycler (Gradient) LTCG-A23 4) Save File In the Edit File screen , select the file name edit box, input volume of reagent , lid temperature, as shown in Fig. 6, input the "Save as" button after completion, select the save path as shown in Fig.
  • Page 15 Touch Thermal Cycler (Gradient) LTCG-A23 8.2.2 Delete File In the File Library screen, touch File Option button to select the file to delete, and the query dialog window will pop up when touching “Delete file” button, and delete this file by touching OK(Fig. 8). Only one delete per time is allowed to prevent any files being mistakenly deleted.
  • Page 16 Touch Thermal Cycler (Gradient) LTCG-A23 1) Parameter • Start Time - system time when file starts to run. • Remain Time - remaining time for the experiment. • Lid Temp - current hot lid temperature. • Step - current step.
  • Page 17 Touch Thermal Cycler (Gradient) LTCG-A23 8.3.1 Running Setting In the Setting screen, select the Running options to enter the Running setting screen (Fig. 12). 1) Hot lid temperature Hot lid temperature setting range:30-115℃,The system default:105℃. 2) Hot lid work mode setting In total there are 2 working modes and default mode is that the hot lid will be on when file running.
  • Page 18 Touch Thermal Cycler (Gradient) LTCG-A23 8.3.3 E-mail Setting In the Setting screen, select E-mail alerts to enter the E-mail Setting screen. 1) Status of email alert After program is over it will automatically send email if chose Enable. 2) Test email Test email function is to test whether email can send or not.
  • Page 19 Touch Thermal Cycler (Gradient) LTCG-A23 Figure 16. Device information. 8.3.6 Software Update Copy the new software to the root directory, insert the USB flash disk into the USB port, then touch “Software update”, return to Android desktop when updating, and immediately reopen the updated App.
  • Page 20 Touch Thermal Cycler (Gradient) LTCG-A23 8.3.8 Calibration Log Click the "Calibration Log" button in the setting interface, as shown in Figure 18. Figure 18. Calibration Log. 8.4 Incubate In the Home screen, touch Incubate button to enter the Incubate wizard screen (Fig.
  • Page 21 Touch Thermal Cycler (Gradient) LTCG-A23 Figure 20. Incubate running 8.5 Log In In the Home screen, touch User button to enter the User screen (Fig. 21). NOTE: Administrator user's initial password is “123456”, you can change the password after logged in.
  • Page 22 Touch Thermal Cycler (Gradient) LTCG-A23 Figure 22. New user Figure 23. Login 8.5.2 Change Password and Delete User Only after login can passwords be changed and users be deleted, can other users be deleted from the login administrator account.

  • Page 23: Maintenance

    Touch Thermal Cycler (Gradient) LTCG-A23 9. Maintenance Machine Maintenance 1) Regular Cleaning • Clean the holes on reaction block with neutral soap solution (Do not use any solvent containing strong alkali, strong alcohol and organic solution) • Spaces near the left, right air vents and under the machine should be always kept free.

  • Page 24: Troubleshooting

    Touch Thermal Cycler (Gradient) LTCG-A23 Troubleshooting 10.1 Dissatisfactory Results Biological, programmatic and hardware problems may contribute to any unsatisfied results of experiment. To distinguish the hardware problems from other possible problems, the machine is equipped with built-in self-test hardware and self-diagnosis software. Below is the detailed description. According to the experiences, most problems are related to biological and programmatic factors.
  • Page 25 Touch Thermal Cycler (Gradient) LTCG-A23 10.4 Error Messages and correspond Solutions Error message Cause and correspond solution File name does not support null File name cannot be empty. character. If have same file name, kindly Don’t support multiple files with the re-name.
  • Page 26 Touch Thermal Cycler (Gradient) LTCG-A23 10.5 Cause of the Abnormal Phenomenon and correspond Solution Description of problem Cause and correspond solution Check whether plug inserted correctly, No display after opening the and power output has electricity , pull machine. out the plug while turning off ,and check the fuse.
  • Page 27 Touch Thermal Cycler (Gradient) LTCG-A23 Replacement Replace Fuse The machine has two fuses. Replace it according to the following once damage occurs. • Turn off the machine and unplug power source. • Unscrew the fuse box with flat screwdriver and replace the damaged fuses with...

  • Page 28: Packing List

    Touch Thermal Cycler (Gradient) LTCG-A23 Packing List Package Contents Verification Kindly open box and check the following list when you receive Touch Thermal Cycler (Gradient) instrument. Name Quantity Instrument Power line Spare fuse (8A , 250V) Operation manual Performance test table...
