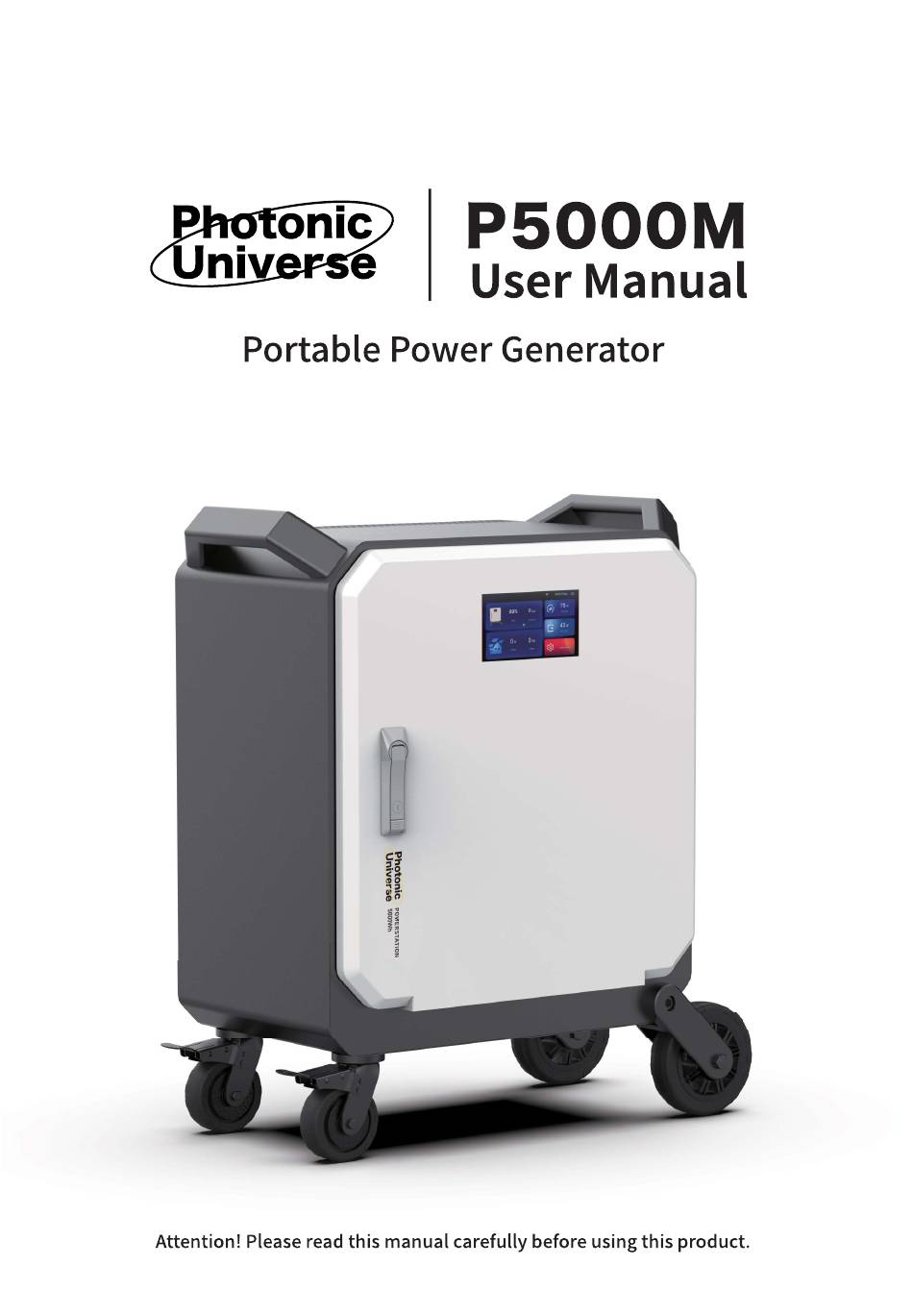

Summary of Contents for Photonic Universe P5000M
-
Page 2: Table Of Contents
1 Introduction ..............................1 1.1 Important safety instructions......................1 Explanation of symbols ........................3 1.3 Basic features............................4 1.4 Working modes ..........................4 Dimensions ............................5 2 Interface definition and technical data .....................6 2.1 Technical data............................7 2.2 Battery specification.......................... 7 2.3 Performance and parameters ...................... -
Page 3: Introduction
P5000M Portable power generator 1 1 I I n n t t r r o o d d u u c c t t i i o o n n 1.1 Important s afety instructions Danger! Danger to life due to high voltages in the unit! All work must be carried out by a qualified electrician. - Page 4 Ensure that the existing wiring is in good condition and appropriately sized. Under- • sized wiring can pose safety risks. Do not disassemble any parts of the P5000M generator that are not specified in this • user manual. Refer to the Warranty section for instructions on obtaining service.
-
Page 5: Explanation Of Symbols
Explanation of symbols his section gives an explanation of all the symbols shown on P5000M, label and in this user manual. Symbol Explanation CE mark. The device complies with the requirements of the applicable CE guidelines. TUV certified. RCM remark. -
Page 6: Basic Features
1.3 Basic features P5000M is a high-quality portable power generator that can function as a portable battery pack, portable solar generator, or as an off-grid solar power system. It provides up to 5,000W of portable power in remote locations, such as for building and construction, emergencies, backup power, off-grid and other applications. - Page 7 B. Solar energy provides power to the loads as first priority, if solar energy is not sufficient to power all connected loads, grid Inverter battery energy will supply power to the loads at the same LOAD time. C. Solar energy provides power to the loads as first priority, grid if solar energy and battery are not sufficient to power all Inverter...
-
Page 8: Dimensions
2 Interface definition and technical data P5000M Model Capacity 5120Wh*N(N 3),can connect Cell chemistry LiFePO Life cycle 6000+ Cycles to 80% Capacity Indication APP/LCD Screen/Web Storage temperature -25°C ~ 60°C 0°C ~ 50°C General Materials Metal Weight 93±1kg Dimension(with base) -
Page 9: Technical Data
5000W Max(230V@50Hz) AC output #3 Automatic Switch over Time 20ms Output AC output #4 2000W Max for each(230V@50Hz) total 5000W for 4 sockets 2.1 Technical data Enclosure protection IP65 (Outdoor) Cooling Strategy Natural Convection Standby Power <30W (Work) /< 5mW (Sleep) Altitude 2000m Over Voltage Category... -
Page 10: Performance And Parameters
Performance and parameters Max. Input Power 7.0kW Max. Input Current 14A/14A Max. Voltage 550V DC Input(PV) Range/Nominal 125V 500V/360V No. of trackers Strings per tracker Rated Power 5.0 kW Max. Output Current 21.7A Nominal Voltage/Range 230V/176V 270V Frequency 50/60Hz AC Output Power Factor (PF) 0.99 Leading 0.99 Lagging <3%... -
Page 11: Safety And Protection
When you open the package and take out the product, please check the accessories first. The packing list is shown below. Key for Key for Operating Pins for PV Allen key Power station Mains cable P5000M instructions connectors connectors connectors connectors cabinet... -
Page 12: Electrical Connection
Personal protective equipment and insulated tools must be used in line with commonly accepted industry principles. P5000M is designed for single phase grid. Voltage is 220/230/240V, frequency is 50/60Hz Other technical parameters should comply with the requirement of the local public grid. -
Page 13: Pv Connection
3.2 PV connection P5000M portable generator can be connected with 1 or 2 arrays of solar PV modules with up to 7kW in total. This connection is optional. If no solar charging is required, the unit can be charged from mains and used as a portable power pack. - Page 14 Step 3. Wiring 3.1 Choose solar PV cables with the cross-section of each core of 4mm2 or higher. 3.2 Remove 10mm of insulation from the ends of the cables. 3.3 Insert the cable ends into pins and using a solar crimping tool, crimp the pins. 4.0mm2 Step 4.
-
Page 15: Wifi
3.3 WiFi P5000M comes with integrated WiFi communication. Users can select a WiFi network in settings. 3.4 Main switch and the PV switch The main switch and the PV switch are located in the top-left corner of the unit behind the door. - Page 16 Touch any part of the screen to navigate to the homepage. On this page, all power data and the battery’s state of charge can be monitored. WiFi connection settings can be configured in the Settings menu. Description Section Battery state of charge and capacity information SOC Power Solar (PV) Solar charging information when PV is working...
- Page 17 SOC page for battery info. PV page for Solar info...
- Page 18 Load page info Touch settings menu to set Wifi.
-
Page 19: App Remote Control By Power Zero
5 APP remote control by Power Zero 5.1 Download the app and register your account Download the Power Zero app from Google Play or the App Store and install it on your smartphone or tablet. Tap "Register" to set up your account and enter your email address. You will then receive a security code to confirm your email. - Page 20 Tap the "+" icon in the top-left corner to add a new device, and scan the QR code found in the “About” section of the Settings menu on the display of your P5000M portable power generator. Select a name for your device that you want to appear on the app homepage.
-
Page 21: Personal Settings
5.4 Personal settings Touch the Settings icon in the top-right corner of the homepage to access the Settings menu. In this menu, you can update your password, choose the working mode, review the "About" page, check the app and device information, and more. 6 Fault diagnosis and solutions If you encounter any of the following problems, refer to the solutions provided below, and contact your local distributor if the problem persists. - Page 22 (1) Turn off and disconnect the PV input and the grid input. The battery is disconnected from (2) Turn the main switch of the unit off, Bat Disconnect the internal inverter. wait for 5 minutes and turn it on (with no PV or grid connected).
-
Page 23: Storage And Maintenance
50%. Never keep the product in long-term storage fully charged to 100%. The product should be stored in a dry, well-ventilated location at room temperature, away from sources of liquids, heat, direct sunlight, or electromagnetic exposure. Photonic Universe Ltd TMS House, Cray Avenue, Orpington, Kent, BR5 3QB, United Kingdom Tel: +44 (0) 203 150 11 11 Email: info@photonicuniverse.com...
