Summary of Contents for Solaire LYNDO

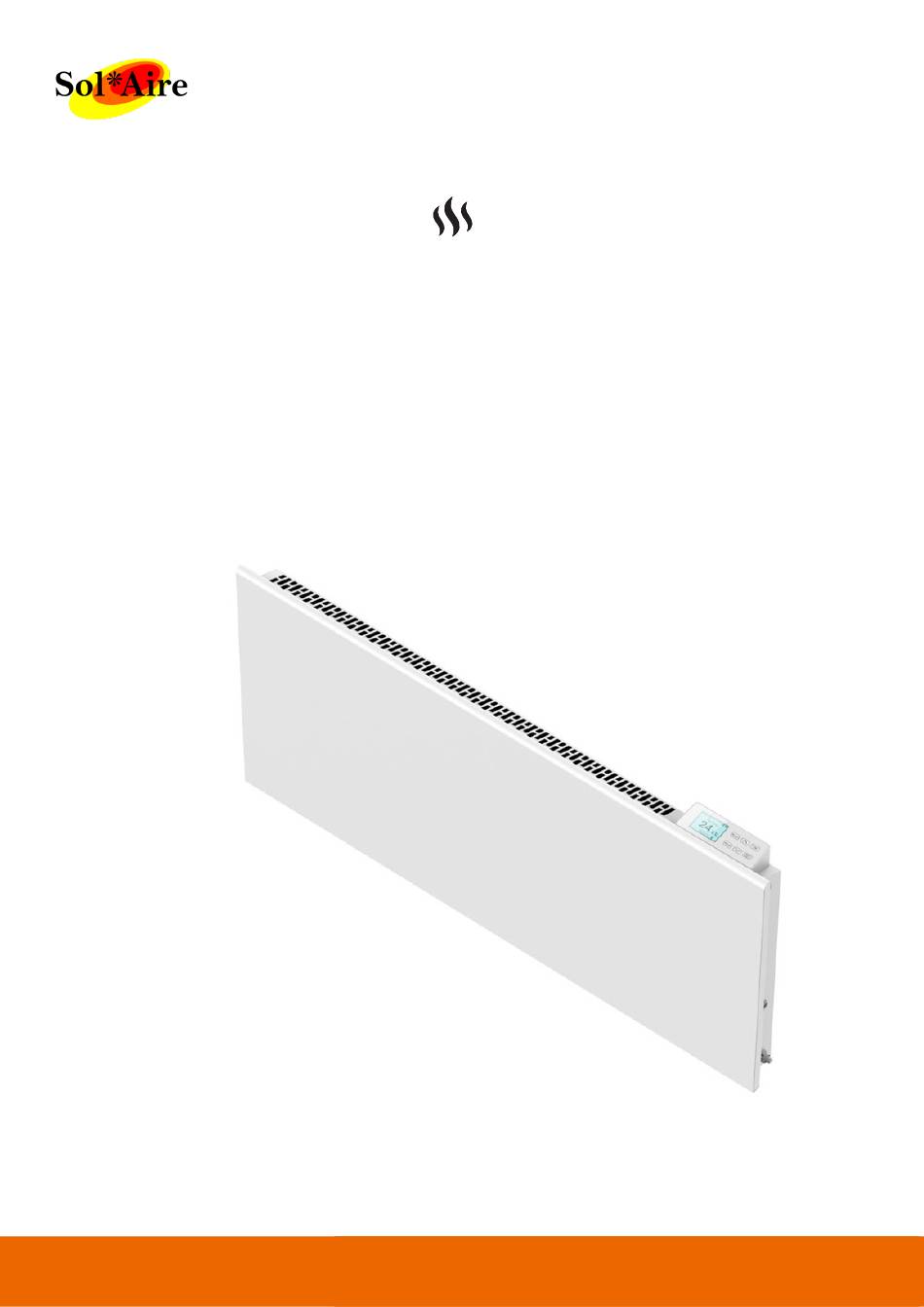

- Page 1 LYNDO LYNDO Electric Panel Heater Instruction Manual...
-
Page 2: Table Of Contents
Contents Safety Instructions Page 3 Installation Instructions Page 4-5 Control Panel Page 6 Manual Operation Page 7-8-9-10 Connecting to WiFi Page 11-12-13 Controlling the heater Page 10-11 ERP Label Page 14 Warranty and Disposal Page 15... -
Page 3: Safety Instructions
Safety Instructions Read the manual before using the heater. Keep the manual for future reference. Before use, check that the heater and its accessories are complete and intact. The heater must be installed as per installation instructions. The heater must be plugged into a socket that meets the following requirements: AC 230V, frequency 50/60Hz. -
Page 4: Installation Instructions
Installation Instructions Before installing, check that all parts are complete and the product is intact. 1 - Make sure the below distances around the heater are respected. 15cm The heater is IP24 rated (splash proof). It can be used in bathrooms or other wet areas subject to the local regulations. - Page 5 (B) push the bracket according to the direction of the arrow (A) Pick the lock buckle of the bracket (B) Lift the bracket (D) Extract and remove the bracket 2. Fix the wall bracket Mark the wall according to the dimensions given below for the heater models you purchased, drill the wall and insert the plastic wall anchors into the holes, mount the wall bracket using the screws provided.
-
Page 6: Control Panel
Control Panel Keys Up key: Mode key: Down key: Adjusting value Setting the Adjusting value mode down Boost key: OK key: Back/Menu setting the Setting the key:setting the boost time confirm back and into the menu Comfort icon ECO icon Anti-frost icon WIFI icon Heating icon... -
Page 7: Manual Operation
Manual Operation The LYNDO is equipped with a TFT LCD screen and 6 touch sensitive buttons to allow easy programming. Setting the Time and Day When the heater is switched on for the first time the time and date will need to be entered. - Page 8 Setting the weekly programme The weekly programme can be selected via: Menu> Programme > OK Selected Day Heating Heating Periods Mode Add New Period The selected day will be highlighted. Press OK and the day will flash. Now press the up / down arrow to change the day you’d like to programme.
-
Page 9: Window Function
Child Lock Press the up and down key for 10s to lock or unlock. The lock icon will appear on the display screen when the lock is active. Window Function The open window setting can be found via: Menu > Setting > Open window > OK When in “Open Window”... -
Page 10: Boost Function
Limit Mode Password Limit mode offers restricted controls for controlled living spaces such as hotels. Please contact your distributor or the manufacture for more details. Boost Function The boost function allows a temporary increase to the heater’s set temperature. After the boost the heater will revert to the previous temperature/function. -
Page 11: Connecting To Wifi
Connecting to WiFI 1. Your heater is compatible with 2 Apps: “SolAire WiFi IQ” and “Smart life”. Download either App onto your smart phone or tablet. Find the app by searching the name in to the Google Play or Apple app store. - Page 12 4D) Enter your WiFi details and press “Confirm”. The APP must be allowed access to Location in order for the WiFi name to Then wait until the connection process is be populated automatically. complete. If the heater does not appear, as shown section 4B, select the heater manually. Press Add device, then Select the correct device type (heater).
-
Page 13: Controlling The Heater
Controlling the Heater with the APP When the heater is online, tap the device name to go to the control interface. Note: when the heater is offline, you will not be able to control it with the app. Weekly Programme You can create a heating schedule to program the heater through the day. - Page 15 Cleaning and care Maintenance Always disconnect the appliance and let it completely cool before any maintenance. Use a vacuum cleaner to remove dust on grilles. Clean the outside of the unit with a damp cloth and then dry it with a dry cloth.
