Bemer Horse-Set Manual

Simple to start

Reaching areas

BEMER Horse-Set – designed with the dimensions and versatility to optimally reach all relevant areas of the body.

Recommended separation distances

Recommended separation distances between portable and mobile RF communications equipment and the BEMER Horse-Set devices.
The BEMER Horse-Set products are intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the VET device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the VET device as recommended below, according to the maximum output power of the communication equipment.

Rated maximum output power of transmitter (W)	Separation distance according to frequency of transmitter (m)
	150 kHz to 80 MHz d = 1.2	80 MHz to 800 MHz d = 1.2	800 MHz to 2500 MHz d = 2.3
0.01	0.12 m	0.12 m	0.23 m
0.1	0.38 m	0.38 m	0.73 m
1	1.2 m	1.2 m	2.3 m
10	3.8 m	3.8 m	7.3 m
100	12 m	12 m	23 m

For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meter (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
Note:

1. At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
2. These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
3. An additional factor of 10/3 is used in calculating the recommended separation distance to decrease the likelihood that mobile/portable communications equipment could cause interference if it is inadvertently brought into patient areas.

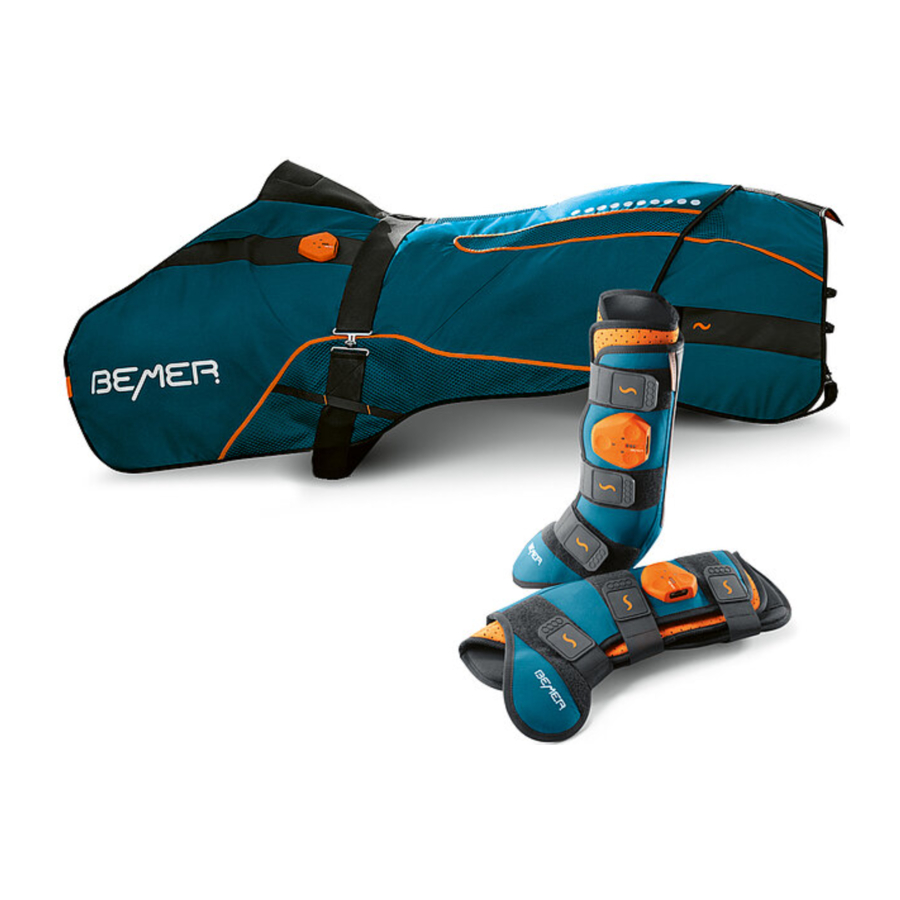

BEMER Horse set

Please check the goods for completeness upon receipt, and also check which set you have purchased.

BEMER Horse set for horses – Art. No. 412300

Cuffs – Art. No. 423500

Horse blanket – Art. No. 422200

Cuff inlets – Art. No. 423600

Neck applicator – Art. No. 423700

INDICATION FOR USE

The BEMER Horse set induces significantly increased parasympathetic activity in horses during rest periods.
The parasympathethicus – also called the "rest and digest system" – is responsible for the metabolism, the recreation and building of physical reserves. There are no unwanted side effects in horses.

Use and handling

The signal used in the BEMER Horse set contains components of the patented BEMER signal. All three programs are running with this BEMER VET signal. Only the duration and intensity vary.

• P1 is the lowest intensity program and it runs for 5 minutes.
• P2 starts with the same intensity as P1, increasing to medium intensity, and runs for 10 minutes.
• P3 combines the functions of P1 and P2 and reaches a maximum intensity of 35 µT when used with the horse blanket, or 100 µT when used with the cuffs. The application time is 15 minutes.

We recommend using the products in the BEMER Horse-Set every day before and/or after riding. Each horse reacts individually to stimulation. Therefore, when selecting the programs and frequency of use, you should consider your horse's individual situation with regard to health, exertion, and performance requirements. The cuffs can be used for targeted treatment in the leg area and the neck applicator for treatment of the neck area. As you use the Horse-Set, you will quickly determine which program is the most pleasant for your horse and best meets your requirements.
BEMER Horse products are easy to use and, thanks to their adjustable straps, are also suitable for medium-size ponies and large horses. The incorporated stitched coil technology reduces the weight and provides great comfort and a large effective treatment area.
The devices in the BEMER Horse set are not suitable for human use.

Using the applicators

Alignment of the horse blanket
Place the horse blanket (top side facing up) on the your horse's back. Make sure that the two "BEMER dot" logos are at the front of your horse's chest.

Use the slider to adjust the horse blanket to the length of your horse's back and then attach the side panels with the Velcro fasteners.

Fastening the straps

Fitting and adjusting the cuffs
Each pair of cuffs in the BEMER Horse set consists of 2 cuffs that can be used for the front or rear right, and for the front or rear left respectively. Apply the cuffs to the horse's leg from behind and fasten them with the 3 continuously adjustable Velcro fasteners (controller always faces outwards).
NOTE: The cuff inlets can be taken out and washed. Refer to the "Cleaning" section for more information.
The cuffs are constructed like a rail, which makes it easier to attach and fasten them.
Open the cuff and place it in the desired position. Now close the cuff carefully and secure it using the Velcro fasteners.
Please note that the controller must always face outwards.

Attaching the neck applicator
The neck applicator is designed for horses of varying sizes. It is placed around the horse's neck and secured via the five attachment points.
The narrow, tapered end faces towards the horse's head.
The two laterally adjustable neck straps are attached to the base of the horse's neck. Their length can be adjusted to match that of the horse's neck.
The two narrow straps are attached to the head collar on each side of the horse's head.
When using the BEMER therapy blanket at the same time, a fifth withers strap connects the neckpiece to the blanket. The coil arrangement is adapted to the anatomy of the horse's neck to guarantee optimal treatment of the entire neck.

Signal controller

Explaining the signal controller

3 Application programs:
P1 = low, P2 = medium, P3 = intense
Duration: P1 = 5 min., P2 = 10 min., P3 = 15 min.
The device cannot be used while being charged!
If the first LED on the battery display lights up orange, it means that the signal controller needs to be charged.

Activation of the signal controller
Press any button (P1-P3) for 1.5 seconds to switch on the signal controller.
If not in use, the signal controller automatically switches off after 2 minutes.
1.5 sec. = On/Off

Starting the treatment
To start an application, shortly press the button of the selected program. As soon as the application starts, the selected program LED will begin pulsating.
If you press any key for 1.5 seconds (P1-P3) during a session, the application is terminated and the signal controller is switched off (can only be used if signal controller is activated).
Shortly press the button = start

Charging of the signal controller
Connect the signal controller to the power supply. The magnetic plug prevents incorrect connection of the application module to the power supply.
The signal control is fully charged when all the LEDs of battery status light up green.
A full charge it will takes about 5-7 hours.

Simultaneously charge two signal controllers with the Y-adapter
Connect the Y-adapter to the power supply. The magnetic plug prevents incorrect connection of the Y-adapter to the power supply.
You can now connect one signal controller to each plug. Here again, magnetic plugs prevent incorrect connection of the application modules to the Y-adapter.

Error codes of the signal controller

For error messages that are not described here, please contact service.

Technical data

Product names	BEMER Horse set/Cuffs
Frequencies of the BEMER signal	10 Hz, 30 Hz
Battery	Li-ion, 7.2 V, 2350 mAh, 16 Wh. With a fully charged battery 15–20 treatments are possible using P3.
Horse blanket	Surface material: 100% polyester; underside: 100% nylon; filling: cotton Flux density 35 µT (max. level); Weight: 3,300 g
Neck applicator	Surface material: 100% polyester; inner lining: 100% nylon; filling: absorbent cotton; flux density: 100 µT (max. level); Weight: 1,750 g
Cuffs	Surface material 60% polyester, 40% nylon; underside: 100% polyester; flux density 100 µT (max. level): Weight: 1,600 g
Charger	INPUT: 100–240 V~, 50–60 Hz, 0.6 A OUTPUT: 12 V ⎓, 1.5 A, 18 W
Y-adapter	PVC
Cuff inlets	100% polyester
Sweat blanket	100% polyester
3 application programs	P1 = 5 min., P2 = 10 min., P3 = 15 min.
Product warnings and safety instructions: Please read these instructions carefully before using the BEMER Horse set products.
Manufacturer
Refer to the instruction manual The laundry symbols only apply to the cuff inlets.
Protect against moisture
CE conformity marking
Temperature, humidity and air pressure for storage
Operating conditions
Degree of protection	IP54

Cleaning

• Use a damp cloth and/or a soft brush to clean horse blanket and cuffs.
• Only use disinfectants for sanitizing.
• Do not use harsh cleaning agents containing acidic, caustic or abrasive components!
• Do not use high-pressure cleaners to clean horse blankets and cuffs.

The inlets of the cuffs are fastened with Velcro and are easy to release.
The cuffs and inlets are labeled "Right-Boot" and "Left-Boot" to avoid confusion when attaching them.
The inlets are machine washable at 30°C.
Use a commercially available detergent without fabric softener.
The inlets must not be tumble-dried.

Maintenance

• When used correctly, BEMER Horse set products do not require any maintenance. However, you should regularly check that the devices are in proper condition.
• Repairs may only be carried out by the manufacturer, otherwise the warranty will be void.
• For repairs or to exclude an operating error, contact your nearest customer service team.
• Recommendation: Use the original manufacturer's packaging for safe shipping.

Safety precautions

This device has been manufactured to the highest technical standards and is safe to operate. Nevertheless, the device may be potentially hazardous, particularly, if it is operated by inadequately trained users, or if it is used improperly or not according to its intended use.
The product is not a life-supporting device.
Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation. If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally.
Use of accessories, transducers and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation.
Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the Veterinary Line devices, including cables specified by the manufacturer. Otherwise, this could cause equipment performance degradation.
The BEMER VET System needs special precautions regarding EMC and needs to be installated and put into service according to the EMC information.
The contents of the operating instructions can be changed at any time and without notice.

• The mains cable, plug and Y-adapter must be in an undamaged, original condition. Damaged components must be replaced immediately.
• The device cannot be used while being charged!
• The BEMER Horse set products must not be used for any other purpose! The devices may only be used for the purposes described here.
• Only use approved BEMER Horse set accessories.
• Do not open the device and do not attempt to repair it. This will void your warranty and can cause significant damage.
• Never expose the device to extreme temperatures.
• To charge the device, use only the supplied charger (including Y-adapter) – otherwise you may damage the device.
• Please charge the signal controller before first use.
• Never fully discharge the battery before storage.
• Never use the products of the BEMER Horse set while riding.
• We recommend that the battery should be charged about once per year to prevent overdischarge.
• The BEMER Horse set should only be used on sick horses after consultation with an licensed veterinarian.

www.bemergroup.com
